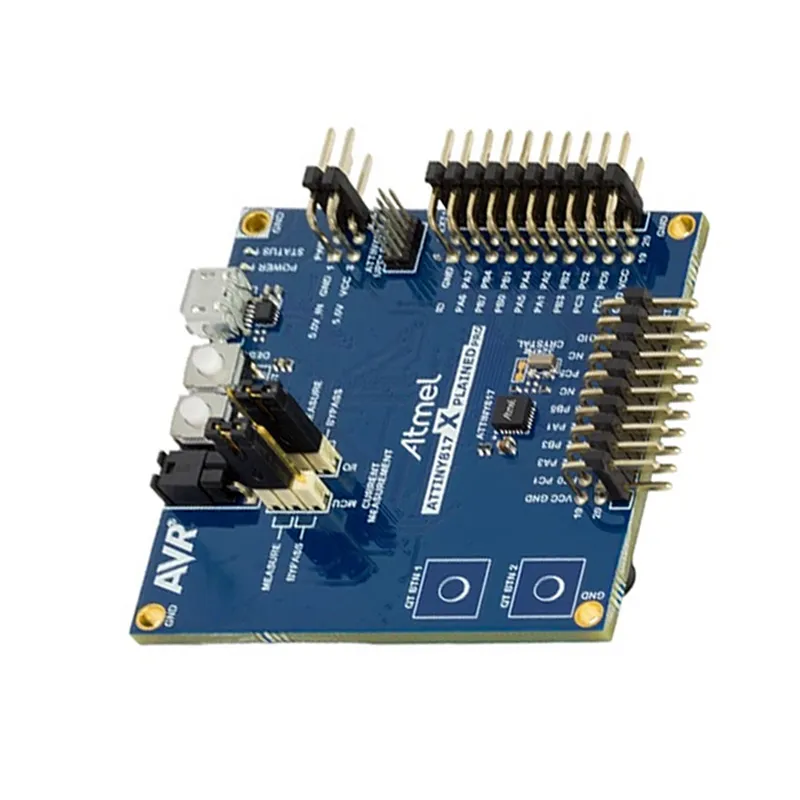

Microchip Technology ATtiny817-XPRO Evaluation Kit w/ Debugger

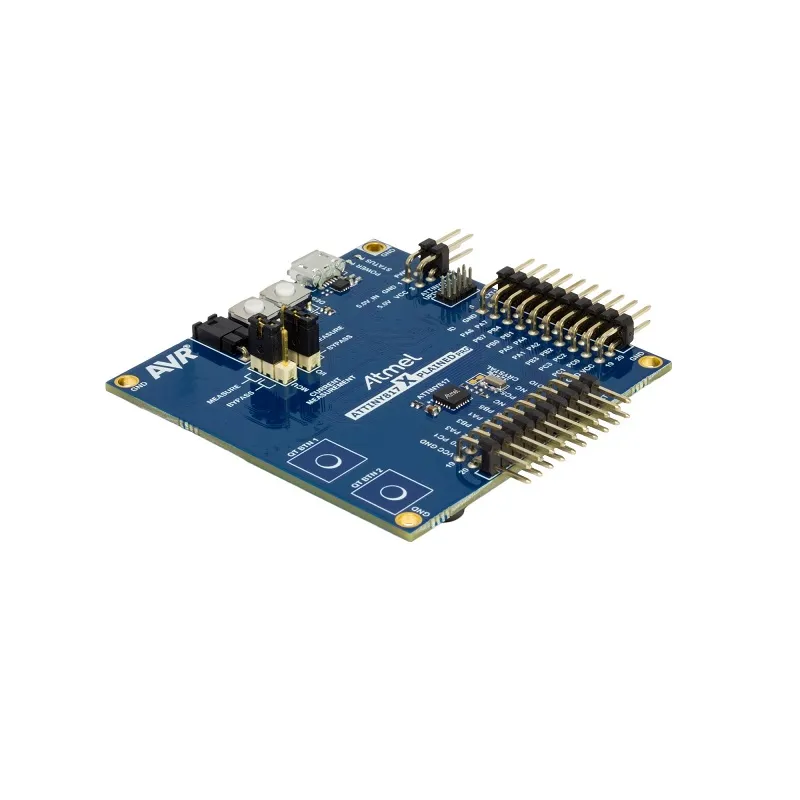

Microchip Technology ATtiny817-XPRO Evaluation Kit w/ Debugger - Image 2
SKU: SBCD-0534
📋 GST Invoice Available

Microchip Technology ATtiny817-XPRO Evaluation Kit w/ Debugger

₹6,319.00 (Inclusive of all taxes)
Out of Stock

The Microchip Technology ATtiny817-XPRO Evaluation Kit provides a comprehensive hardware platform for evaluating the ATtiny817 microcontroller, featuring an integrated embedded debugger for streamlined development. It offers easy access to the MCU’s peripherals and simplifies integration into custom designs using Microchip Technology Studio.

Features

  • Features the powerful Microchip Technology ATtiny817 AVR microcontroller.
  • Includes an on-board Embedded Debugger, eliminating the need for external programming tools.
  • Equipped with two mechanical user buttons and two QTouch® capacitive buttons for HMI experimentation.
  • Fully supported by Microchip Technology Studio (formerly Atmel Studio) for integrated development and debugging.

Out of stock

Description

The Microchip Technology ATtiny817 Xplained Pro evaluation kit serves as an essential hardware platform for developers to thoroughly evaluate the capabilities of the ATtiny817 microcontroller. Designed for seamless integration with the Microchip Technology Studio integrated development platform, this kit ensures straightforward access to all features of the ATtiny817, aiding in its adoption and integration into custom hardware solutions.

A key advantage of the Xplained Pro MCU series, including this kit, is the inclusion of an on-board Embedded Debugger. This integrated debugger negates the necessity for external programming or debugging tools, streamlining the development workflow from initial code deployment to advanced debugging. The kit also supports Xplained Pro extension kits, allowing developers to expand its functionality with additional peripherals to accelerate custom design development.

Key Features

  • Integrated ATtiny817 AVR microcontroller for robust performance.
  • Two mechanical user buttons and two QTouch® capacitive buttons for human-machine interface prototyping.
  • One yellow user LED for visual feedback and debugging.
  • On-board 32.768 kHz crystal for precise timing applications.
  • Two Xplained Pro extension headers for modular expansion and custom peripheral integration.
  • Embedded Debugger with auto-ID for Microchip Technology Studio, symbolic debugging, and programming capabilities.
  • Data Gateway Interface (DGI) supporting SPI, I2C, two GPIOs, and a Virtual COM Port (CDC).
  • Embedded current measurement circuitry (XAM) for precise power consumption analysis (100 nA to 400 mA).
  • USB powered for convenient operation and portability.
  • Extensive application examples available in Atmel Start (now Microchip Technology Start).

Technical Specifications

Item TypeKit, Debugger
MicrocontrollerATtiny817
Model Number / NameATTINY817-XPRO
Core ArchitectureAVR
Core Sub-ArchitectureRISC
Silicon Core NumberATtiny
Silicon Family NameATTINY817
Silicon ManufacturerMicrochip Technology

Frequently Asked Questions

What development environment is compatible with the ATtiny817-XPRO Evaluation Kit?

The ATtiny817-XPRO kit is fully supported by Microchip Technology Studio, formerly Atmel Studio. This integrated development platform provides a comprehensive environment for writing, compiling, debugging, and flashing code onto the ATtiny817 microcontroller, streamlining the entire development process efficiently.

Does the kit require an external debugger or programmer?

No, the ATtiny817-XPRO Evaluation Kit includes an on-board Embedded Debugger. This integrated debugger eliminates the need for separate external tools to program or debug the ATtiny817 microcontroller. It offers features like auto-ID in Microchip Technology Studio and symbolic debugging for efficient development.

What are the primary input features available on the ATtiny817-XPRO board?

The board provides two mechanical user buttons for general input and two QTouch® capacitive buttons, ideal for implementing touch-sensitive user interfaces. These input options facilitate diverse application development, from simple button presses to more sophisticated touch interactions, allowing for versatile prototyping on the ATtiny817.

Can the ATtiny817-XPRO kit measure the power consumption of its projects?

Yes, the kit features embedded current measurement circuitry (XAM) capable of measuring power consumption from 100 nA to 400 mA. This allows developers to analyze the power usage of the ATtiny817 and connected peripherals, with data visualized in Microchip Technology Data Visualizer, which is crucial for low-power applications.

Are there expansion options for adding more peripherals to the ATtiny817-XPRO?

Yes, the ATtiny817-XPRO kit includes two Xplained Pro extension headers. These headers allow developers to connect additional Xplained Pro extension kits, providing a modular way to expand the board's functionality with various peripherals. This flexibility significantly eases the development of complex custom designs.

Package Includes

  • 1 x Microchip Technology ATtiny817-XPRO Evaluation Kit

Additional Information

Weight 0.039 kg
Dimensions 8 × 7 × 3 cm
