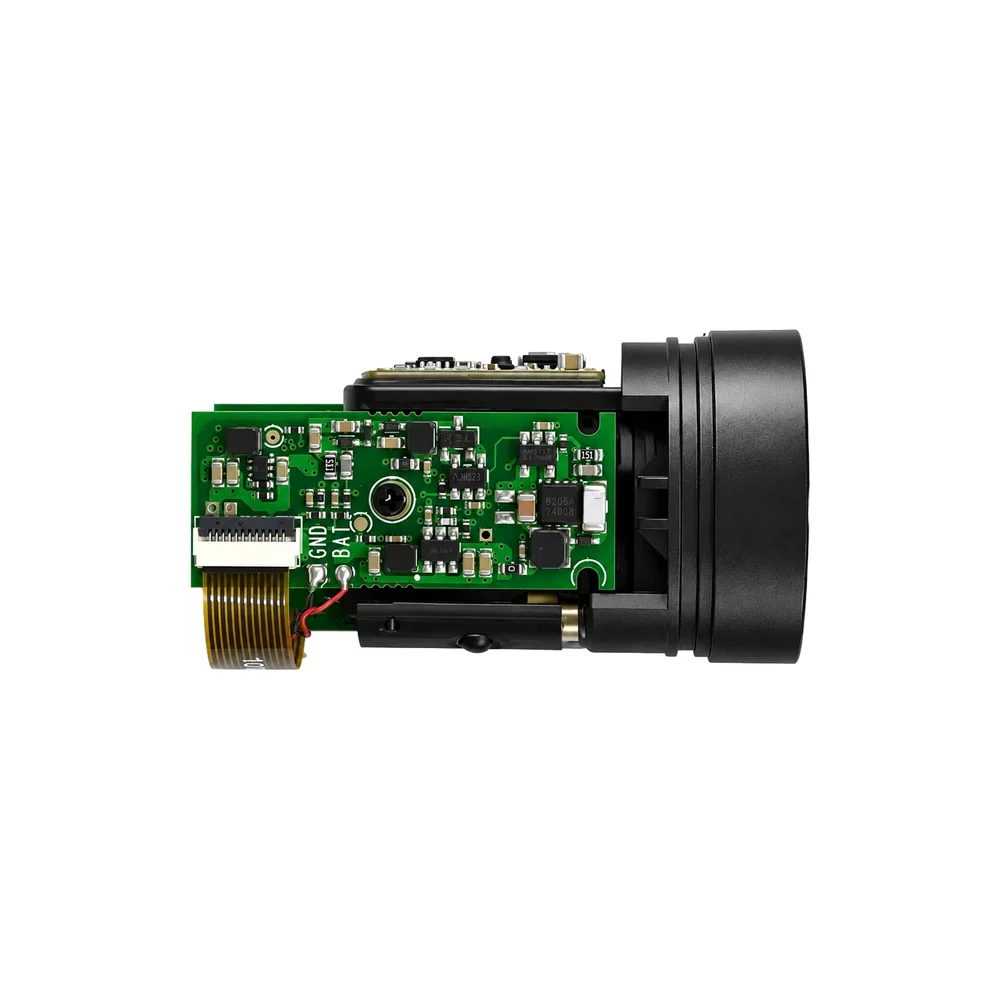

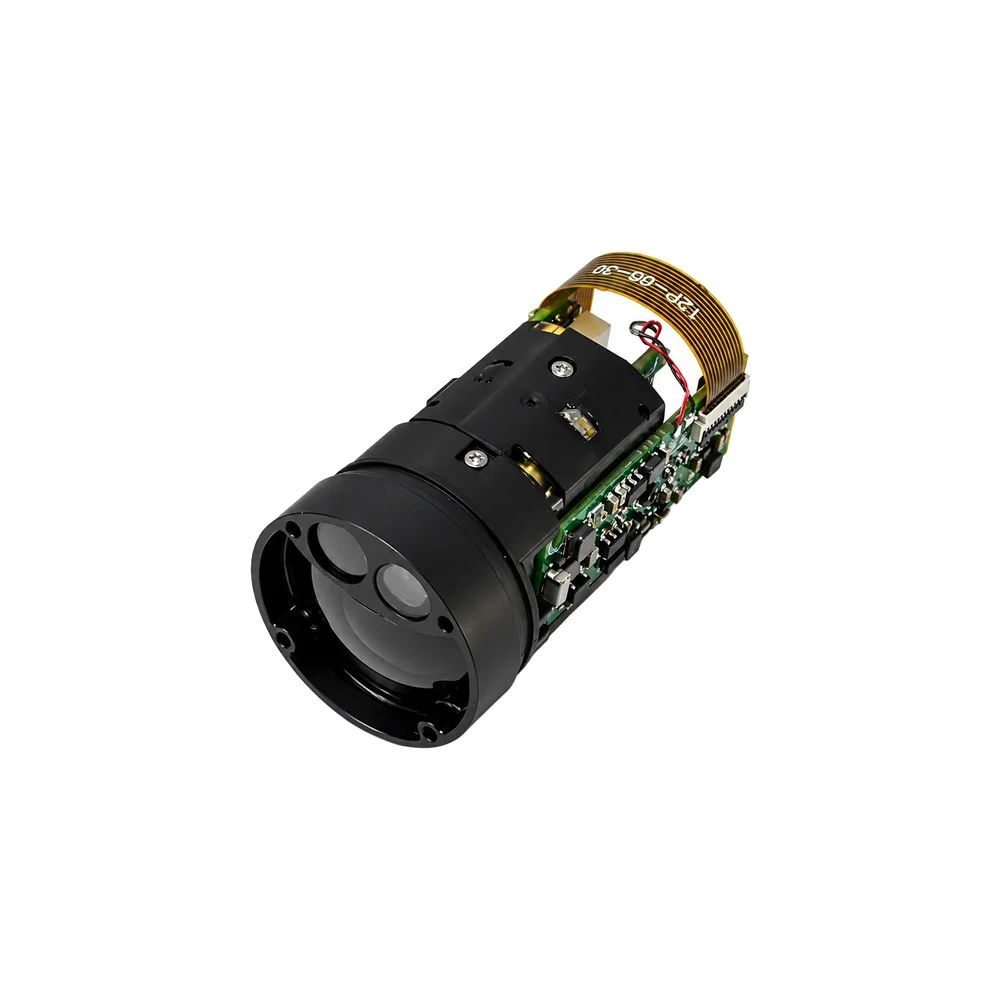

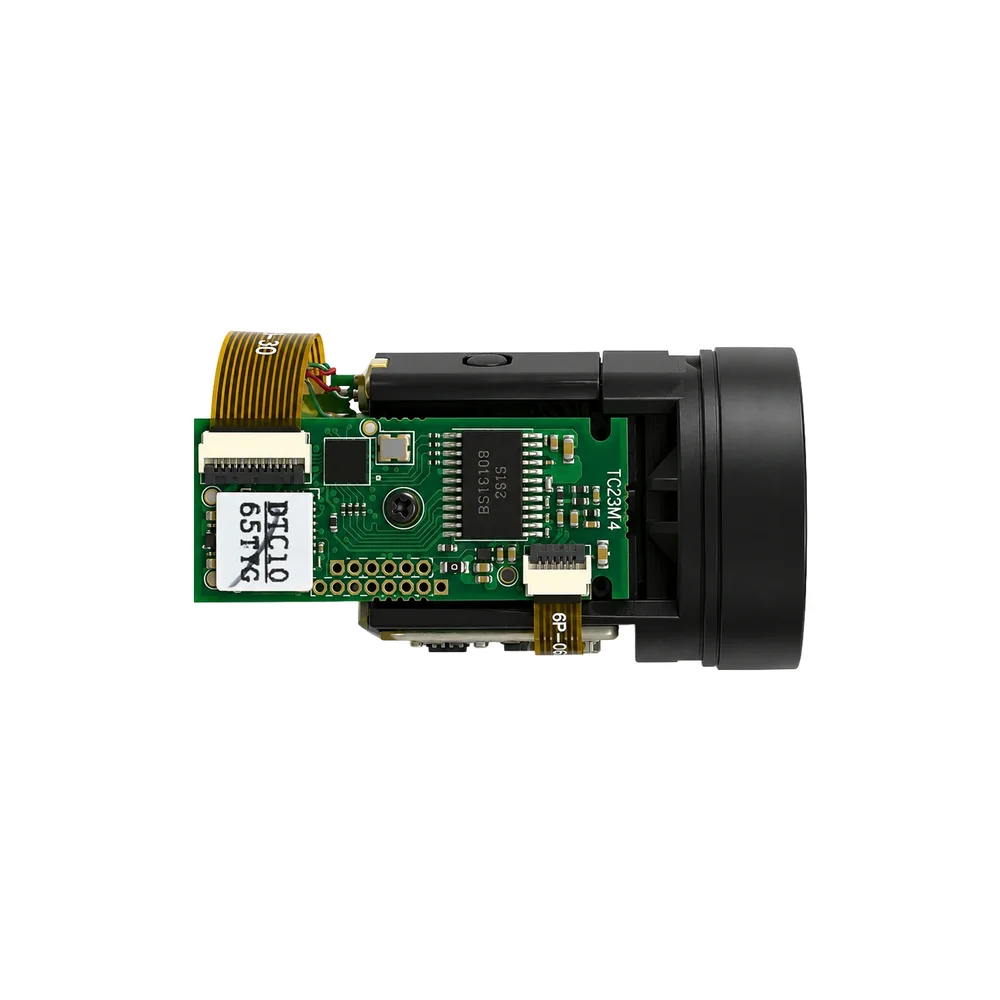

Meskernel TC25 Pulsed Laser Distance Sensor, 3M-1000m Range, 905nm, USB to TTL

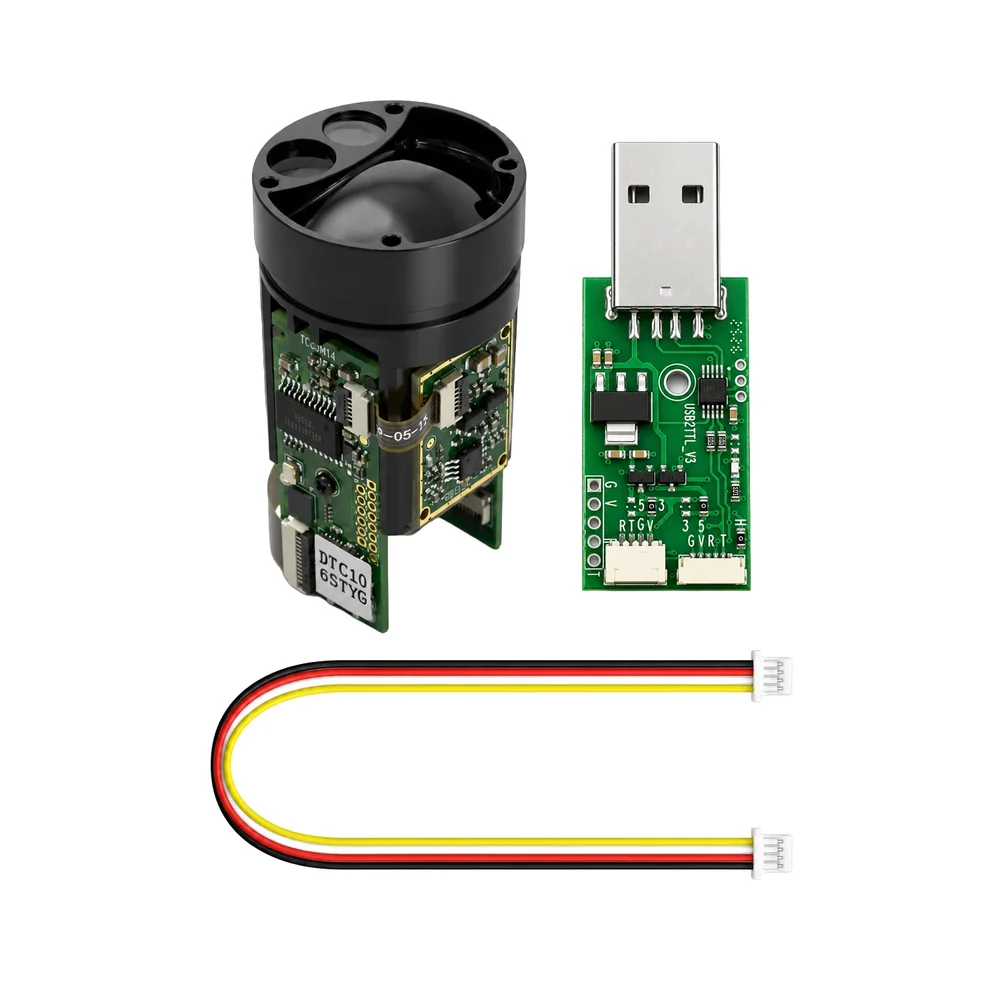

The Meskernel TC25 is a pulsed laser distance sensor module offering a 3M to 1000m measurement range with ±1m accuracy, utilizing a 905nm Class I laser. It provides flexible UART/RS232/RS485 communication interfaces for integration with microcontrollers, PLCs, and IoT systems via the included USB-to-TTL adapter.
Features
- Pulsed laser ranging from 3 meters up to 1000 meters with ±1 meter accuracy.
- Features a 905nm wavelength, Class I (<1mW) eye-safe laser for reliable operation.
- Supports multiple output interfaces: UART (TTL), RS232, and RS485 for flexible system integration.
- Low power consumption of less than 330 mW at a 3.3V DC supply voltage.
- Compact and lightweight design suitable for UAVs, security systems, and outdoor inspections.
Out of stock
The Meskernel TC25 Pulsed Laser Distance Sensor employs advanced time-of-flight (ToF) measurement principles using a 905nm pulsed laser diode. This technology enables precise distance calculation by measuring the round-trip time of a laser pulse, providing stable readings even in varied outdoor lighting conditions. The sensor’s Class I laser rating ensures it is safe for use in a wide range of applications without stringent laser safety protocols.
Designed for integration into automated systems, the TC25 operates on a 3.3V logic level and communicates via serial protocols. Its robust construction and operating temperature range of -10°C to 50°C make it suitable for deployment in security perimeters, agricultural monitoring, and infrastructure inspection scenarios where long-range, non-contact measurement is critical.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 8 × 8 × 3 cm |
