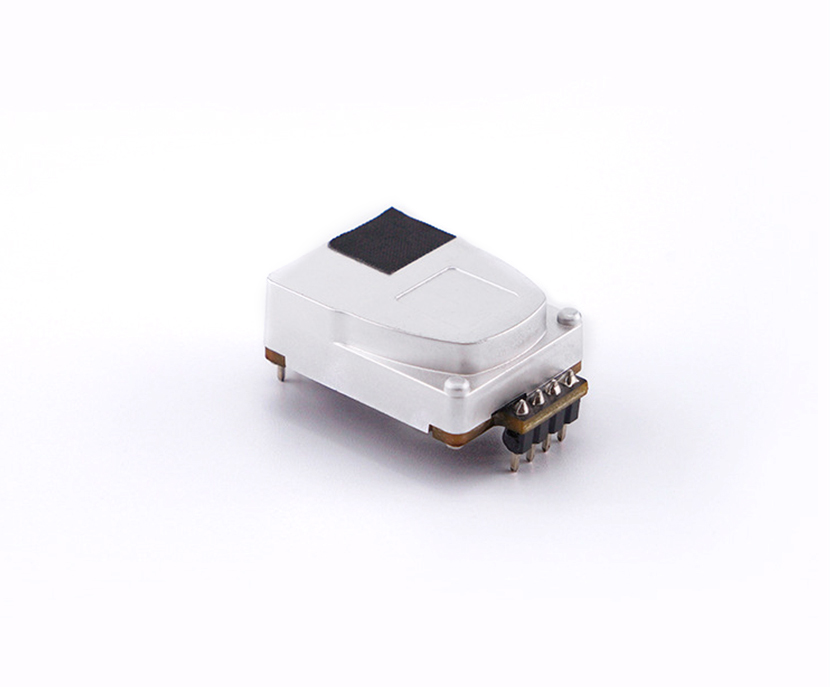

MemsFrontier MTP60-A NDIR CO2 Sensor Module - UART/I2C/PWM Output
The MemsFrontier MTP60-A is a compact NDIR CO2 sensor module providing real-time carbon dioxide concentration measurement from 400 to 5000 ppm. It features multiple output interfaces including UART, I2C, and PWM for easy integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs.
Features
- NDIR sensing principle for high accuracy and oxygen independence.
- Triple output interface: UART, I2C, and configurable PWM signal.
- Measurement range: 400–5000 ppm (customizable up to 10,000 ppm).
- Low power operation with 20mA average current and 5V DC supply.
- Supports both automatic baseline calibration and manual calibration modes.
Out of stock
The MTP60-A CO2 sensor utilizes non-dispersive infrared (NDIR) technology to deliver precise and stable carbon dioxide concentration readings. Its single-channel optical design ensures strong resistance to interference from other gases, providing reliable data for critical air quality monitoring applications.
Engineered for continuous operation, the module features a fast 2-second measurement interval and a T90 response time of 90 seconds. Its robust performance is maintained across an operating temperature range, making it suitable for integration into HVAC systems, fresh air units, and smart building automation.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 4 × 2 cm |
