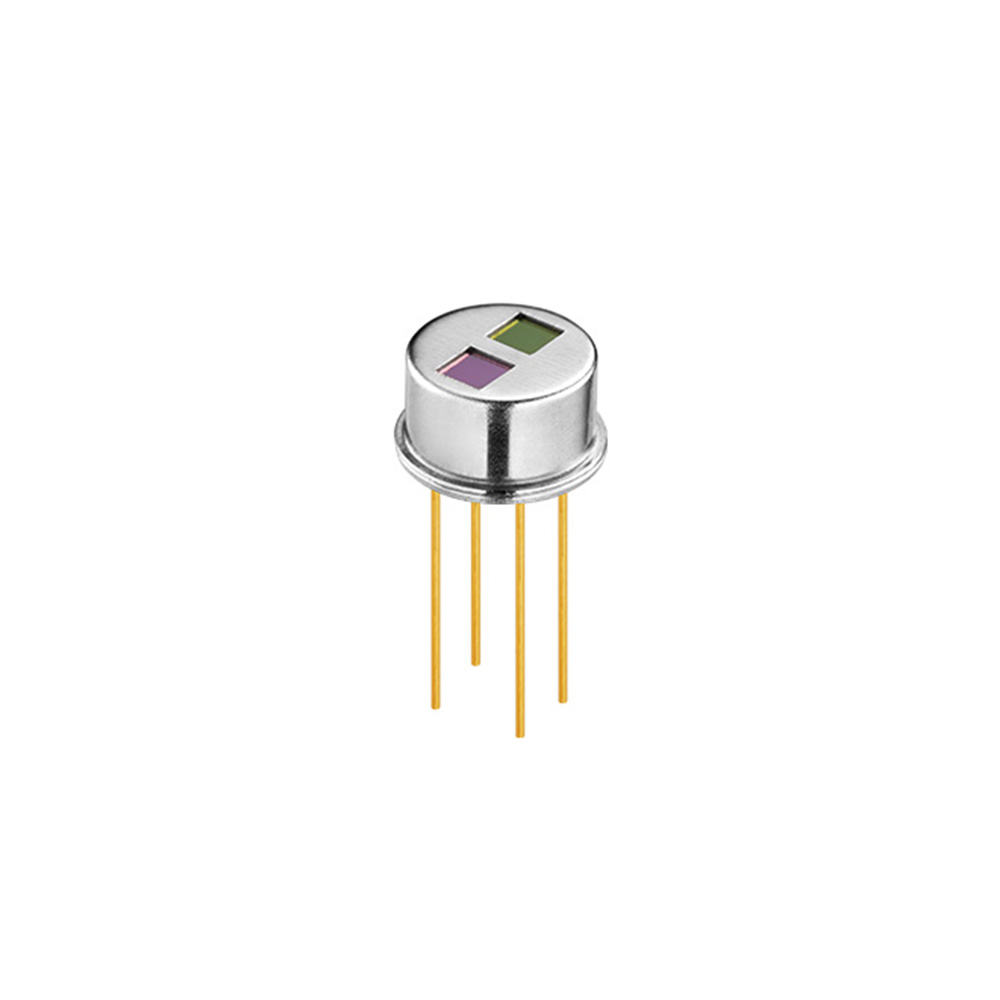

MemsFrontier MPY20-A112T Pyroelectric Infrared Gas Sensor Module - TO-39 Package, Dual Channel
The MemsFrontier MPY20-A112T is a dual-channel, voltage-mode pyroelectric infrared gas sensor module featuring a lithium tantalate crystal sensing element for stable, low-drift performance across a wide 1-20µm wavelength range. It operates from 2-12V DC, making it suitable for integration into gas detection and analysis systems requiring high temperature stability.
Features
- Dual-channel pyroelectric infrared sensor with integrated JFET buffer
- Lithium tantalate (LiTaO3) crystal sensing element for high temperature stability (<2‰/°C drift)
- Wide spectral response from 1 to 20 micrometers (µm)
- TO-39 metal can package for robust environmental protection
- Low thermal time constant of 150 ms for responsive detection
Out of stock
The MPY20-A112T pyroelectric sensor utilizes a high-performance lithium tantalate (LiTaO3) single crystal as its sensitive element. This material boasts a Curie temperature exceeding 600°C, ensuring minimal variation in its pyroelectric coefficient across a broad operating temperature range of -40°C to +80°C. This results in exceptional signal stability with a typical temperature drift of only 1-2‰, making it ideal for applications requiring consistent, long-term measurements.
Designed in a standard TO-39 metal can package, the sensor module operates in voltage mode with an integrated JFET for impedance matching. It features a dual-element configuration and internal thermal compensation, enhancing its rejection of common-mode environmental noise. The recommended operating voltage spans from 2 to 12V DC, with an optimum output load of 47kΩ to maximize signal integrity.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 4 × 3 cm |
