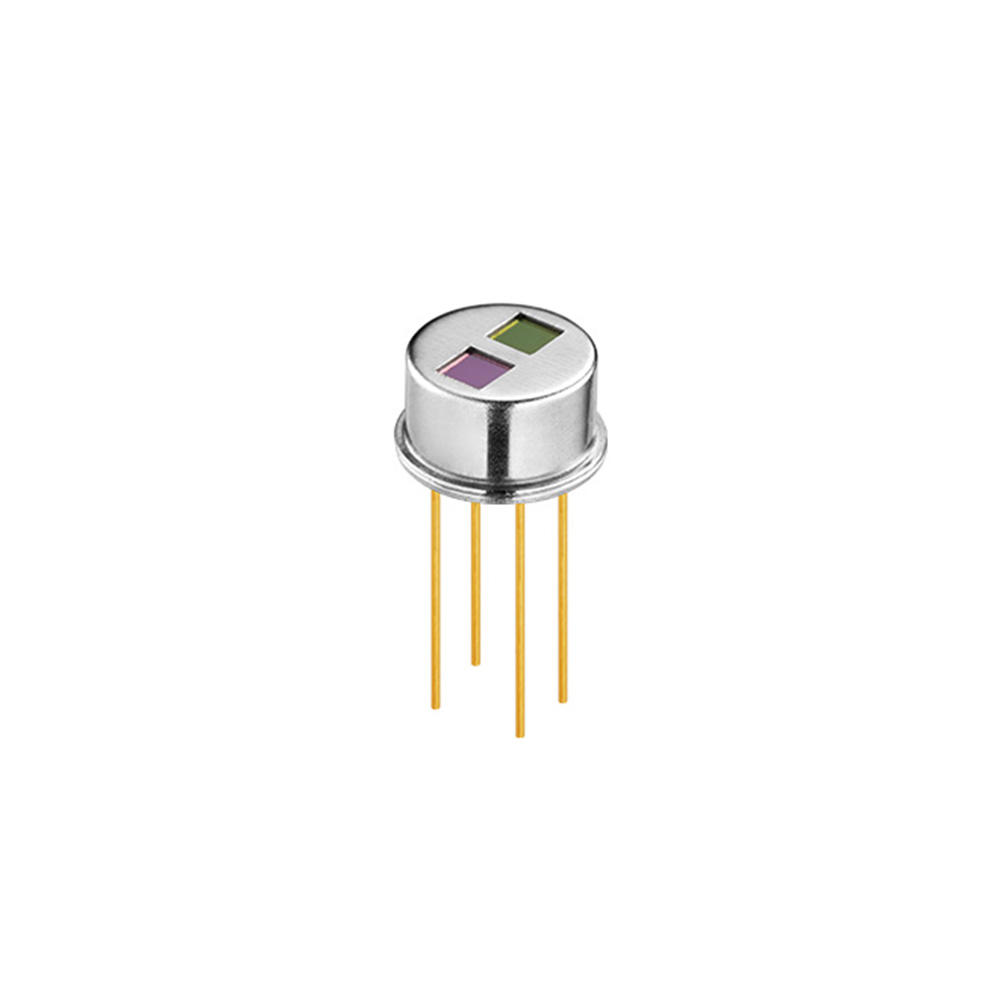

MemsFrontier MPY20-A112T Infrared Pyroelectric Gas Sensor (CO2) - TO-39 Package
The MemsFrontier MPY20-A112T is a dual-channel, voltage-mode infrared pyroelectric gas sensor designed for CO2 detection. It utilizes a lithium tantalate single crystal sensing element for high stability and operates from 2-10V, making it suitable for integration into industrial and medical monitoring systems.
Features
- Dual-channel pyroelectric sensor with integrated thermal compensation for stable output.
- Lithium tantalate (LiTaO3) single crystal sensing element with a high Curie temperature (>600°C).
- Wide operating voltage range of 2-10V DC with a 47kΩ optimum output load.
- TO-39 metal package ensuring robust performance from -40°C to +80°C.
- Excellent spectral response consistency across the 1-20μm wavelength range.
Out of stock
The MPY20-A112T pyroelectric gas sensor employs a high-performance lithium tantalate crystal as its sensitive element. This material offers a small relative dielectric constant and a high specific detection rate, enabling precise infrared absorption measurement for gases like CO2. Its pyroelectric coefficient remains remarkably stable across a broad temperature range, resulting in a minimal output signal drift of only 1-2‰ per degree Celsius.
Designed in a TO-39 package with a JFET integrated for impedance matching, the sensor operates in voltage mode. It features a fast thermal time constant of 150 ms and a high internal feedback resistance of 50 GΩ, making it highly responsive to changes in infrared radiation. This sensor is engineered for applications requiring reliable, long-term gas concentration monitoring without frequent recalibration.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 4 × 2 cm |
