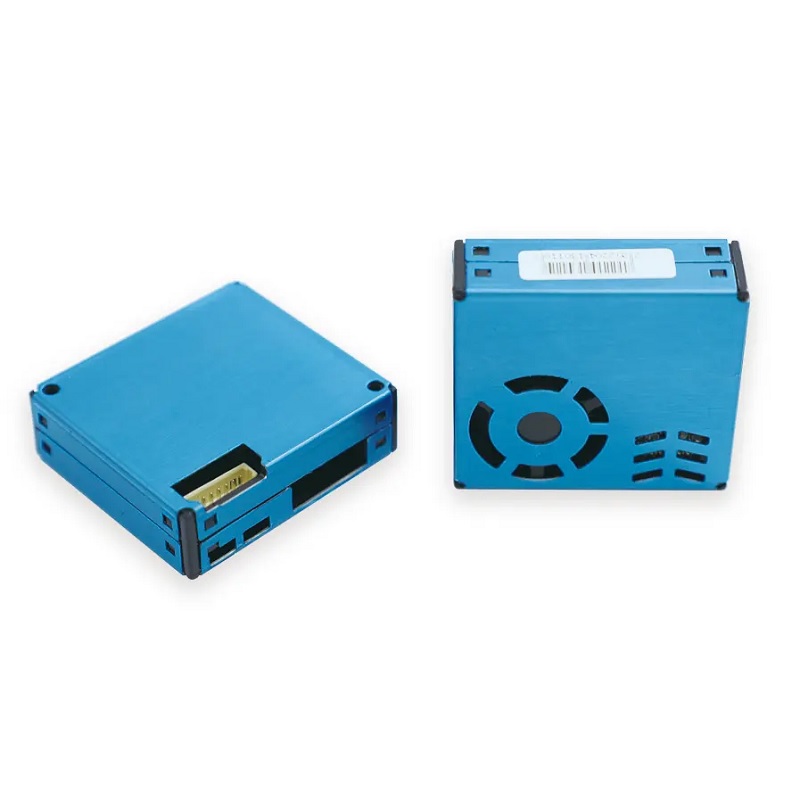

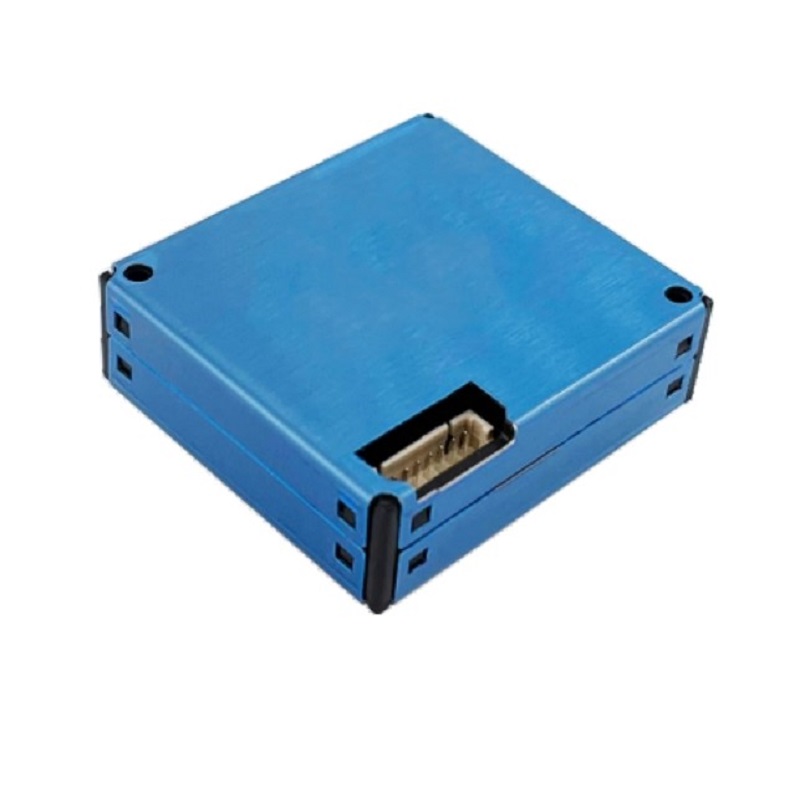

MemsFrontier MPM10-BS Laser PM Sensor (Front Air Inlet/Outlet, 8-Pin)
The MemsFrontier MPM10-BS is a compact laser-based particulate matter sensor designed for accurate air quality monitoring, measuring PM1.0, PM2.5, and PM10 concentrations. It features a front-mounted airflow design and offers flexible UART, I2C, and PWM output interfaces for easy integration into Arduino, Raspberry Pi, ESP32, and industrial monitoring systems.
Features
- Laser-based detection for PM1.0, PM2.5, and PM10 particles (0.3–10 µm).
- Triple output interface: UART, I2C, and PWM for versatile system integration.
- High accuracy: ±15 µg/m³ or ±15% reading under standard conditions.
- Fast power-on settling time of less than 10 seconds for real-time data.
- Compact, robust design with front air inlet/outlet for optimized sampling.
Out of stock
The MPM10-BS utilizes a laser scattering principle to detect and quantify particulate matter concentrations in the air. Its optical design, combined with advanced signal processing algorithms, provides stable and reliable measurements of PM1.0, PM2.5, and PM10 within a range of 0–1000 µg/m³. The sensor’s front-facing air inlet and outlet configuration ensures consistent airflow and minimizes sampling errors in various mounting orientations.
Engineered for continuous operation in diverse environments, the sensor operates from -10°C to +60°C and withstands humidity up to 95% RH (non-condensing). Its low-power design, with a working current of ≤85 mA at 5V DC, makes it suitable for both portable and fixed monitoring stations. The 8-pin connector provides direct access to digital and pulse-width modulation outputs, facilitating seamless connection to microcontrollers, single-board computers, and data acquisition systems.
Additional Information
| Weight | 0.021 kg |
|---|---|

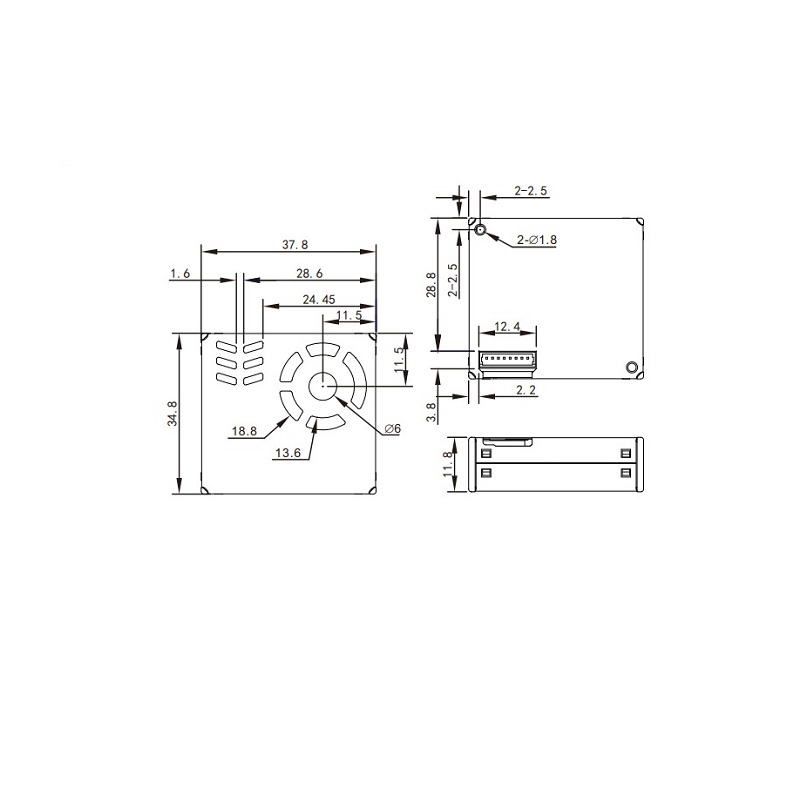

| Dimensions | 3.78 × 3.48 × 1.18 cm |
