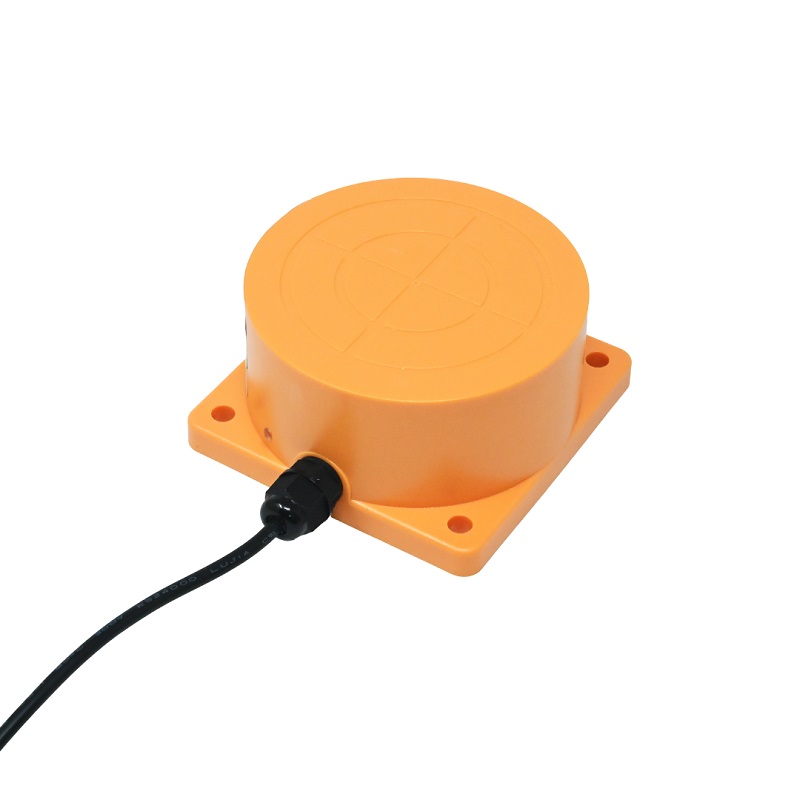

ME201W Ultrasonic Wireless Level Sensor for Water, Diesel, Oil & Fuel Tanks - IP65, WiFi, 0.1-4m Range
The ME201W is a WiFi-enabled ultrasonic level sensor module designed for remote monitoring of water, diesel, oil, and fuel tanks. It provides non-contact level measurement from 0.1 to 4 meters with ±0.02m accuracy, connecting directly to 2.4GHz networks via the Tuya Smart Life ecosystem for real-time data and alerts.
Features
- Ultrasonic non-contact sensing with a 0.1 to 4.0 meter measurement range and ±0.02m accuracy.
- Integrated 2.4GHz WiFi connectivity for direct cloud integration via Tuya Smart Life app.
- Compact, IP65-rated ABS housing suitable for indoor and outdoor industrial environments.
- Low-power operation at ≤100mA from a standard 5V DC power supply.
- Provides real-time level percentage, distance, status graphs, and configurable mobile alerts.
Out of stock

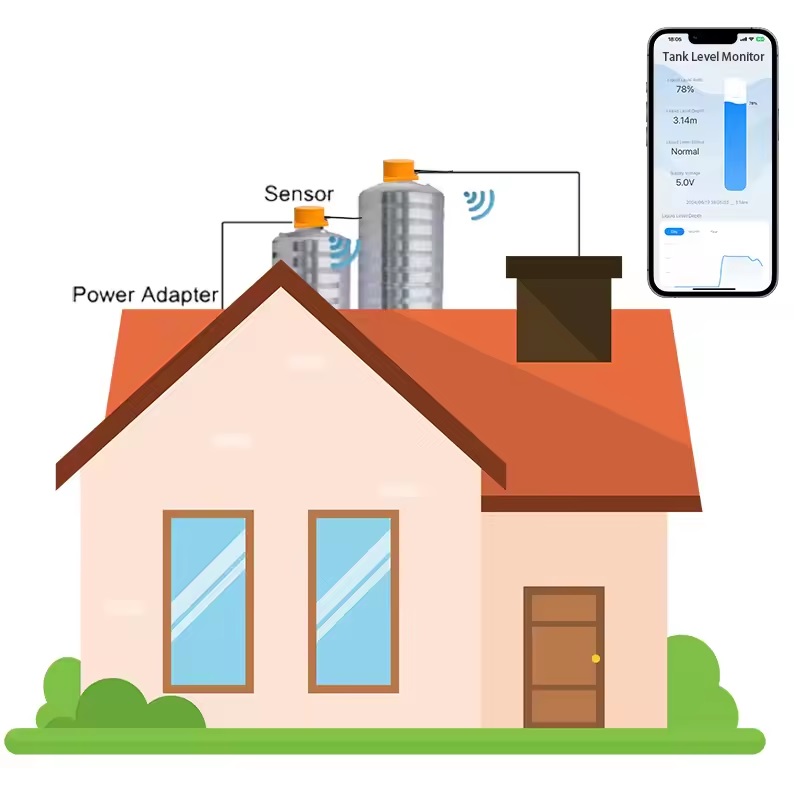

The ME201W utilizes ultrasonic time-of-flight (ToF) principles to provide precise, non-contact level measurement for a variety of liquids including water, diesel, and oils. Its integrated 2.4GHz WiFi module enables direct connection to local networks, facilitating remote monitoring and control without the need for additional gateways or complex wiring.

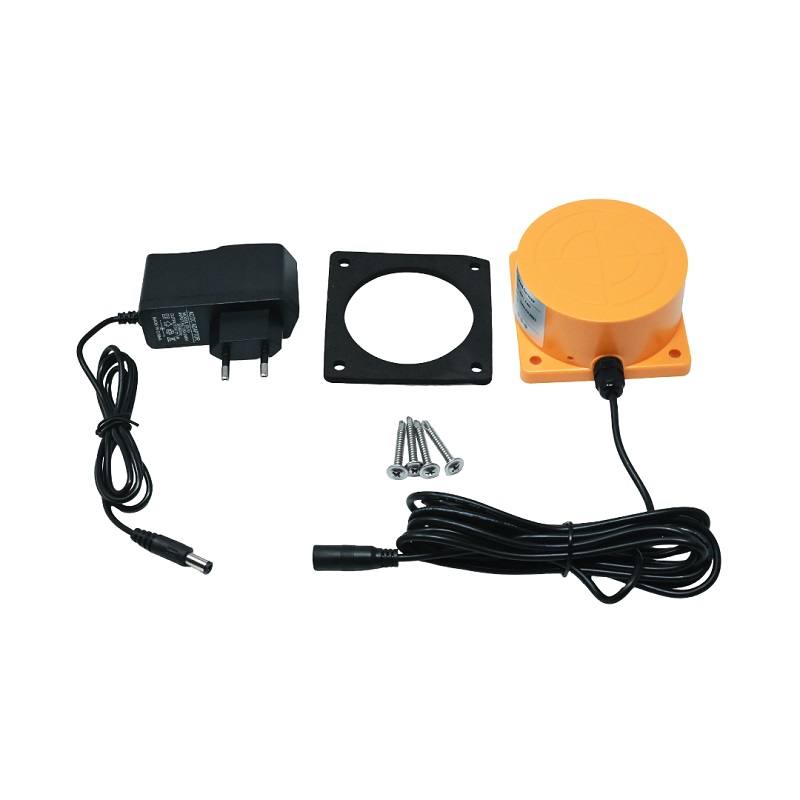

Designed for industrial and commercial tank monitoring, the sensor operates reliably across a -20°C to 70°C temperature range and is housed in a durable, IP65-rated ABS enclosure for protection against dust and water jets. The system is powered via a standard 5V DC adapter, making it compatible with common power sources and suitable for integration into existing facility infrastructure.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 8 × 8 cm |
