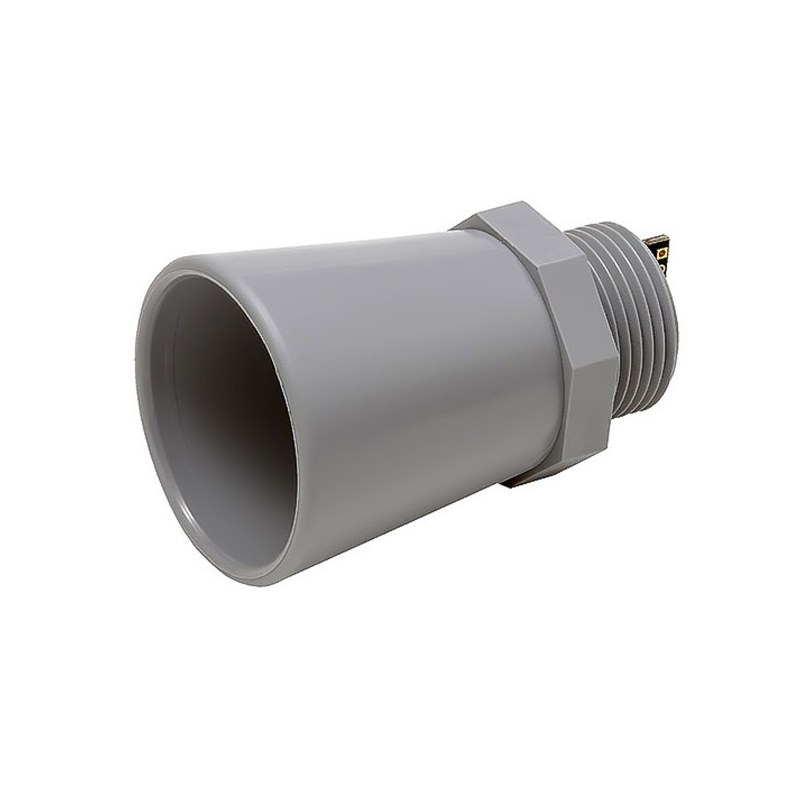

MaxBotix MB7380 HRXL-MaxSonar-WRT Rugged Ultrasonic Distance Sensor - PVC Housing, IP67, 300-5000mm Range
The MaxBotix MB7380 HRXL-MaxSonar-WRT is a rugged, IP67-rated ultrasonic distance sensor designed for demanding outdoor and industrial applications. It provides precise range measurements from 300mm to 5000mm with millimeter resolution via pulse-width, analog voltage, or TTL serial outputs, compatible with microcontrollers like Arduino, Raspberry Pi, and PLCs.
Features
- High-resolution ultrasonic ranging from 300mm to 5000mm with 1mm resolution.
- Rugged PVC housing rated IP67 for weather and water resistance, compatible with 3/4-inch PVC fittings.
- Multiple output options: Pulse-width, analog voltage, and TTL serial for flexible system integration.
- Advanced noise rejection with real-time automatic calibration for stable readings in cluttered acoustic environments.
- Low power consumption at 2.9mA average current, operating from 2.7V to 5.5V DC.
Out of stock
The MB7380 is part of MaxBotix’s HRXL-MaxSonar-WR series, engineered for reliable long-range detection in outdoor conditions. It utilizes a 42kHz ultrasonic transducer paired with sophisticated firmware algorithms for real-time waveform analysis and automatic calibration, ensuring accurate distance readings despite variations in voltage, humidity, and ambient acoustic noise.
Its robust PVC housing provides IP67 protection against dust and temporary water immersion, making it suitable for installation in weather-exposed locations. The sensor’s narrow beam pattern and high acoustic output power enable precise target discrimination and excellent clutter rejection, which is critical for applications like vehicle detection, bin level monitoring, and robotic navigation.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 9 × 7 × 5 cm |
