MaxBotix MB7366 HRXL-MaxSonar-WRL High-Performance Ultrasonic Sensor - PVC Housing, IP67
The MaxBotix MB7366 HRXL-MaxSonar-WRL is a high-performance ultrasonic distance sensor featuring a robust PVC housing with IP67 weather resistance and 3/4-inch NPT threads for easy mounting. It provides precise, noise-immune ranging from 50 cm to 10 meters via analog voltage, serial (RS232), or pulse width outputs, making it ideal for outdoor robotics, industrial automation, and level monitoring applications.
Features
- High-resolution ultrasonic ranging from 50 cm to 10 meters (1000 cm) with 1 mm resolution.
- Triple-output interface: Analog Voltage, Serial (RS232), and Pulse Width for flexible system integration.
- Robust IP67-rated PVC housing with 3/4-inch NPT threads for weather-resistant, secure mounting.
- Advanced noise rejection with real-time automatic calibration for voltage, humidity, and ambient acoustic conditions.
- Wide operating voltage range (2.7V to 5.0V DC) and temperature range (-40°C to +70°C) for harsh environments.
Out of stock
The MB7366 HRXL-MaxSonar-WRL sensor utilizes high-output 42 kHz acoustic energy and sophisticated real-time waveform analysis to deliver stable, accurate distance measurements even in electrically or acoustically noisy environments. Its firmware incorporates continuous variable gain and clutter rejection algorithms, ensuring reliable performance for outdoor and industrial applications.

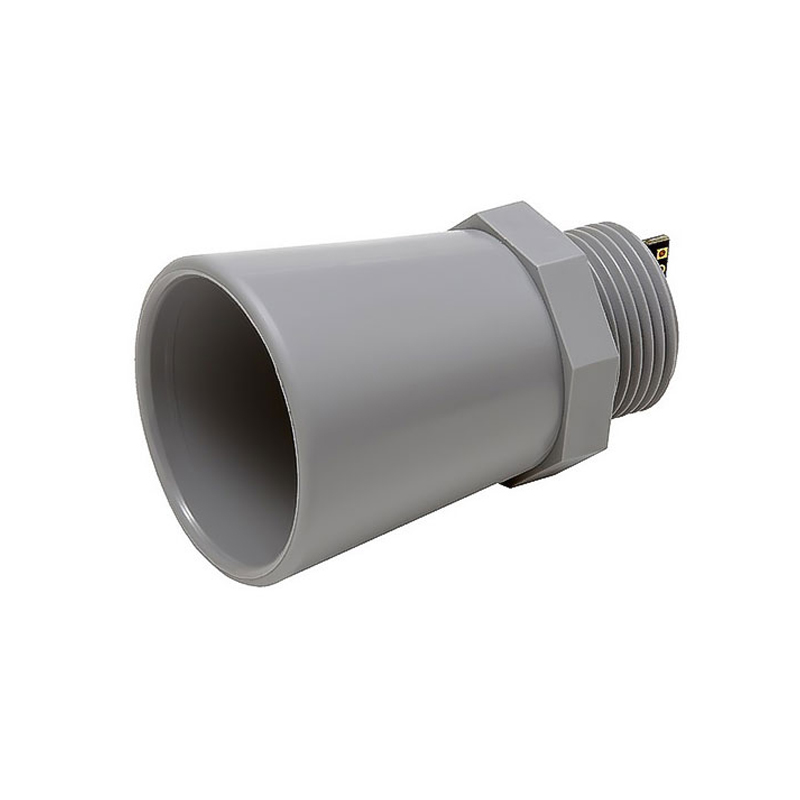

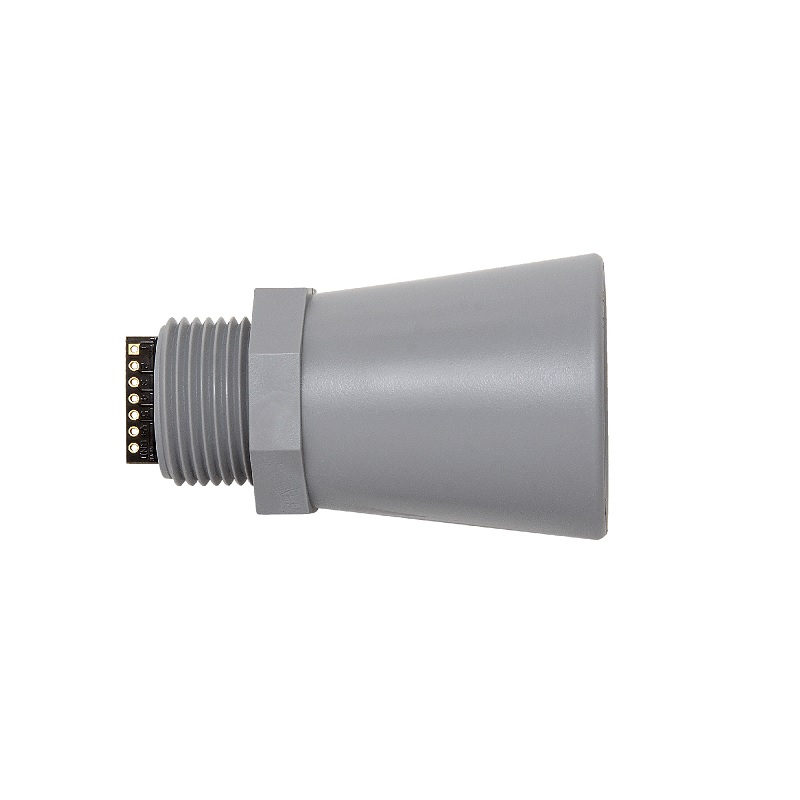

Housed in a sealed, grey PVC enclosure meeting the IP67 standard, the sensor is protected against dust ingress and temporary water immersion. The integrated 3/4-inch National Pipe Thread (NPT) allows for straightforward installation into standard electrical conduit fittings, facilitating integration into fixed monitoring systems, mobile robotics platforms, and automated process controls.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 4.4 cm |
