MAD Components Components CM 3115 TAURUS FPV Drone Motor 900KV-6S

₹8,429.00 (Inclusive of all taxes)
Out of Stock

The MAD Components Components CM 3115 TAURUS is a high-power 900KV brushless motor engineered for 6S LiPo operation, delivering up to 4kg of thrust and 1517W of power for demanding FPV and aerial cinematography platforms.

Features

  • High-torque 900KV motor optimized for 6S LiPo (22.2V) operation.
  • Delivers a maximum thrust of 4kg with a peak current draw of 63.2A.
  • Features integrated stainless steel dust filters and a split exhaust blade for superior cooling.
  • Robust 3115 stator size (31mm diameter, 15mm height) for industrial-grade durability.
  • Low internal resistance of 35.8mΩ for efficient power delivery and reduced heat generation.

Out of stock

Description

The CM 3115 TAURUS motor from MAD Components Components is engineered for professional FPV and aerial filming applications where reliability and thermal performance are critical. Its 3115 stator size provides a substantial magnetic field for high torque output, enabling it to handle heavy-lift configurations and aggressive maneuvers on 6S power systems.

Advanced thermal management is a core design principle, with dual internal stainless steel dust filters protecting the stator windings and a unique split exhaust blade within the rotor promoting active airflow to dissipate heat. This construction ensures sustained performance during extended flight sessions, making it suitable for demanding cinematography work.

Key Features

  • High-Efficiency 900KV Winding: Optimized for 6S voltage, balancing torque and RPM for propellers up to 12-14 inches.
  • Industrial Thermal Design: Incorporates dual stainless steel internal dust filters and a rotor-integrated split exhaust blade for maximum cooling.
  • High-Power Stator: 3115 (31x15mm) stator provides a large magnetic volume for exceptional torque and power handling up to 1517W.
  • Low Internal Resistance: 35.8mΩ minimizes electrical losses, translating to cooler operation and longer flight times.
  • Durable Construction: Precision-machined bell and hardened steel shaft built to withstand the vibrations of heavy-lift and professional FPV use.

Applications

  • Heavy-lift FPV drones for professional aerial cinematography and surveying.
  • Long-range exploration platforms requiring efficient 6S power systems with large-diameter propellers.
  • Industrial inspection drones carrying payloads such as thermal cameras or LiDAR sensors.
  • High-performance freestyle quads built for 6-7 inch propellers on 6S batteries.

Technical Specifications

Motor TypeOutrunner Brushless Motor
Stator Size3115 (31mm Diameter x 15mm Height)
KV Rating900 RPM/V
Voltage Range6S LiPo (22.2V Nominal)
Max Continuous Current63.2 A
Max Power1517 W
Max Thrust4 kg
Internal Resistance35.8 mΩ
Max Torque0.64 Nm
Shaft DiameterStandard 5mm (Typical for 3115)
Mounting Pattern16x19mm or 25x25mm (Confirm with manufacturer)

Frequently Asked Questions

What is the compatible voltage range for the CM 3115 TAURUS 900KV motor?

The CM 3115 TAURUS motor is specifically wound and optimized for 6S LiPo battery packs, with a nominal voltage of 22.2V. It is designed to deliver maximum performance and efficiency within this voltage range. Operating outside this specification, such as on 4S or 8S, is not recommended as it may lead to suboptimal performance or potential damage.

What size propellers are suitable for this 900KV motor on 6S?

Given its 900KV rating and high-torque 3115 stator, this motor is ideally paired with larger, higher-pitch propellers common in heavy-lift and long-range applications. Typical propeller sizes range from 12x4.5 to 14x4.7 inches for multirotors. Always consult thrust tables and ensure your Electronic Speed Controllers (ESCs) are rated for the corresponding current draw, which can exceed 60A at full throttle.

How does the integrated dust filter and cooling system work?

The motor features two ultra-thin stainless steel filters installed inside the stator assembly, which prevent conductive dust and debris from entering and shorting the windings. Additionally, a split exhaust blade design inside the rotor creates a centrifugal fan effect, actively drawing air through the motor to dissipate heat from the stator and magnets, significantly improving thermal performance during sustained high-load operation.

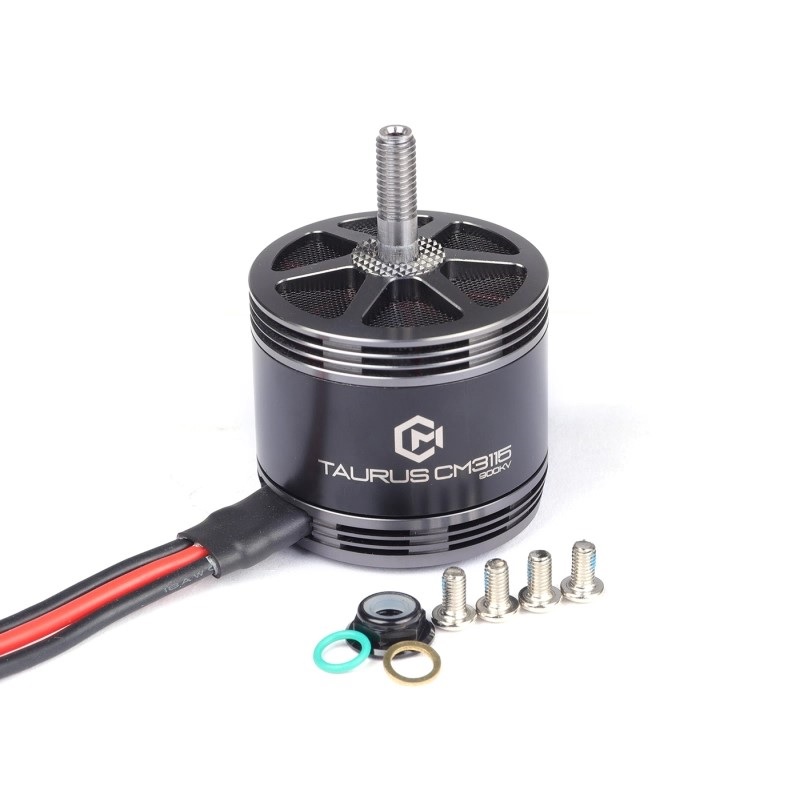

Package Includes

  • 1 x MAD Components Components CM 3115 TAURUS 900KV Motor

Additional Information

Weight 0.2 kg
Dimensions 6 × 8 × 6 cm
