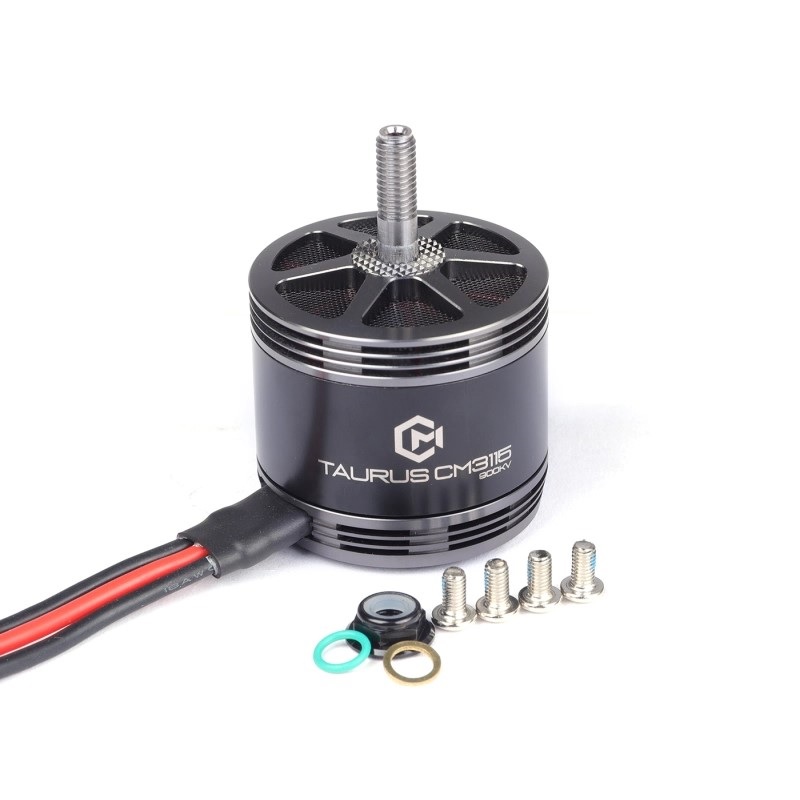

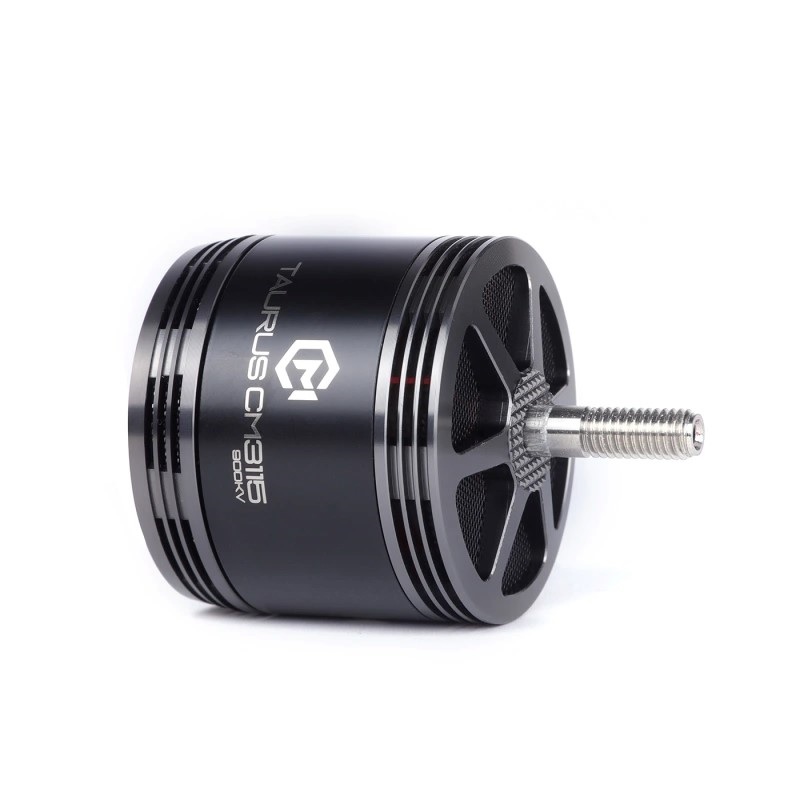

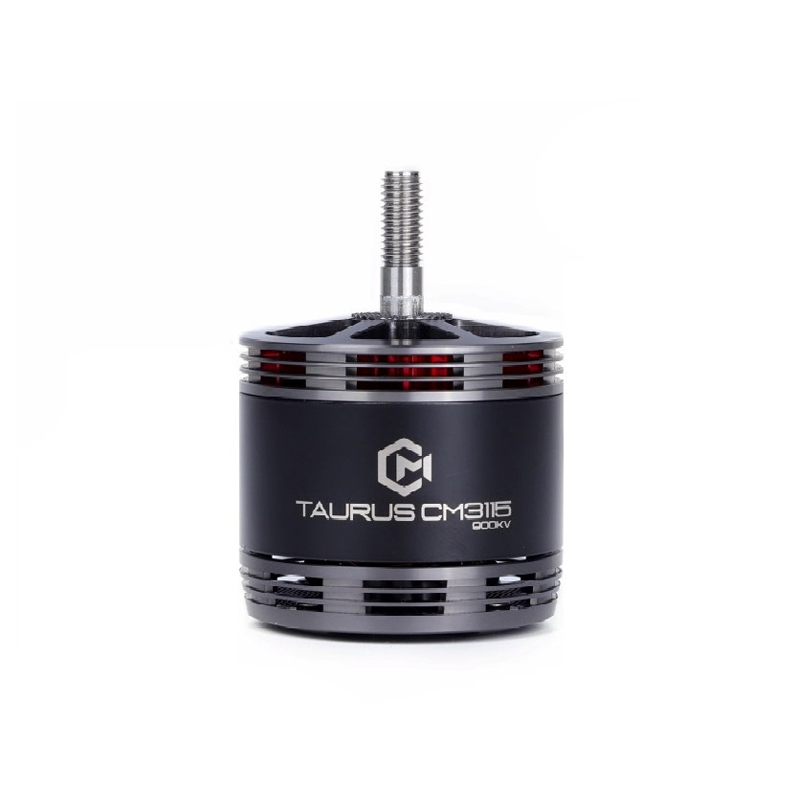

MAD Components Components CM 3115 TAURUS FPV Drone Motor 1050KV-6S
MAD Components Components CM 3115 TAURUS FPV Drone Motor 1050KV-6S - Image 2
MAD Components Components CM 3115 TAURUS FPV Drone Motor 1050KV-6S - Image 3
SKU: DRFC-2807
📋 GST Invoice Available

MAD Components Components CM 3115 TAURUS FPV Drone Motor 1050KV-6S

₹8,429.00 (Inclusive of all taxes)
Out of Stock

The MAD Components Components CM 3115 TAURUS is a high-performance 1050KV brushless motor engineered for 6S LiPo operation, delivering up to 4.1kg of thrust for demanding long-range and cinematic FPV applications.

Features

  • 1050KV rating optimized for 6S LiPo voltage (22.2V nominal)
  • High-torque design with a maximum thrust of 4.1kg per motor
  • Advanced thermal management with internal split exhaust blade
  • Dual stainless steel dust filters for enhanced stator protection
  • Robust construction supporting up to 1837W of peak power

Out of stock

Description

The CM 3115 TAURUS motor from MAD Components Components is engineered for professional-grade cinematic and long-range drone platforms. Its 1050KV rating is specifically tuned for efficient 6S LiPo operation, providing the high torque and smooth power delivery required for stable aerial filming and extended flight times.

Built with durability in mind, the motor incorporates a sophisticated internal cooling system. A split exhaust blade within the rotor actively expels heat, while dual ultra-thin stainless steel filters protect the stator windings from dust and particulate ingress, ensuring reliable performance in varied environments.

Key Features

  • High-Torque 1050KV Design: Optimized for 6S voltage to deliver powerful, efficient thrust for heavy-lift and long-endurance flights.
  • Advanced Thermal Dissipation: Integrated split exhaust blade within the rotor accelerates heat evacuation, preventing thermal saturation.
  • Dual-Stage Dust Filtration: Two internal stainless steel mesh filters protect stator windings from abrasive debris, extending motor lifespan.
  • High-Power Capability: Handles peak loads up to 1837W and 76.5A for aggressive maneuvering and heavy payloads.
  • Precision Balanced Components: Minimizes vibration for smoother video footage and reduced frame stress.
  • Robust Stator Construction: Durable N52SH neodymium magnets and high-grade laminations ensure consistent magnetic field and torque output.

Applications

  • 6S-powered long-range FPV drones and exploration platforms.
  • Cinematic filming drones requiring smooth, high-torque propulsion for gimbal-stabilized cameras.
  • Heavy-lift utility drones for payloads such as mapping sensors or delivery mechanisms.
  • Endurance-focused fixed-wing or VTOL hybrid aircraft.

Technical Specifications

Motor ModelCM 3115 TAURUS
KV Rating (RPM/V)1050 KV
Nominal Voltage6S LiPo (22.2V)
Max Continuous Current76.5 A
Max Continuous Power1837 W
Max Thrust4.1 kg
Internal Resistance21.6 mΩ
Motor TypeOutrunner Brushless (FPV)
Stator Size31mm x 15mm (3115)

Frequently Asked Questions

What is the recommended propeller size for this 1050KV motor on 6S?

For optimal performance on 6S, pair this 1050KV motor with larger, high-pitch propellers typically in the 7-inch to 9-inch range. Exact sizing depends on your desired thrust-to-weight ratio and flight style; consult the manufacturer's thrust charts for specific recommendations. Using smaller propellers may lead to inefficiency and overheating.

How does the internal dust filter system work?

The motor features two ultra-thin stainless steel mesh filters positioned inside the stator assembly. These filters prevent dust, sand, and other fine particulates from entering and abrading the copper windings, significantly improving reliability in dusty or sandy environments. The filters are designed to minimize airflow restriction for cooling.

Can this motor be used with a 4-in-1 ESC or individual ESCs?

Yes, this motor can be used with either a compatible high-current 4-in-1 ESC or individual ESCs. Ensure your ESC(s) are rated for at least 80A continuous current per motor and support 6S voltage (22.2V). Proper soldering of 3.5mm bullet connectors is required for individual ESC setups.

Package Includes

  • 1 x MAD Components Components CM 3115 TAURUS 1050KV-6S Motor

Additional Information

Weight 0.24 kg
Dimensions 10 × 10 × 9 cm
