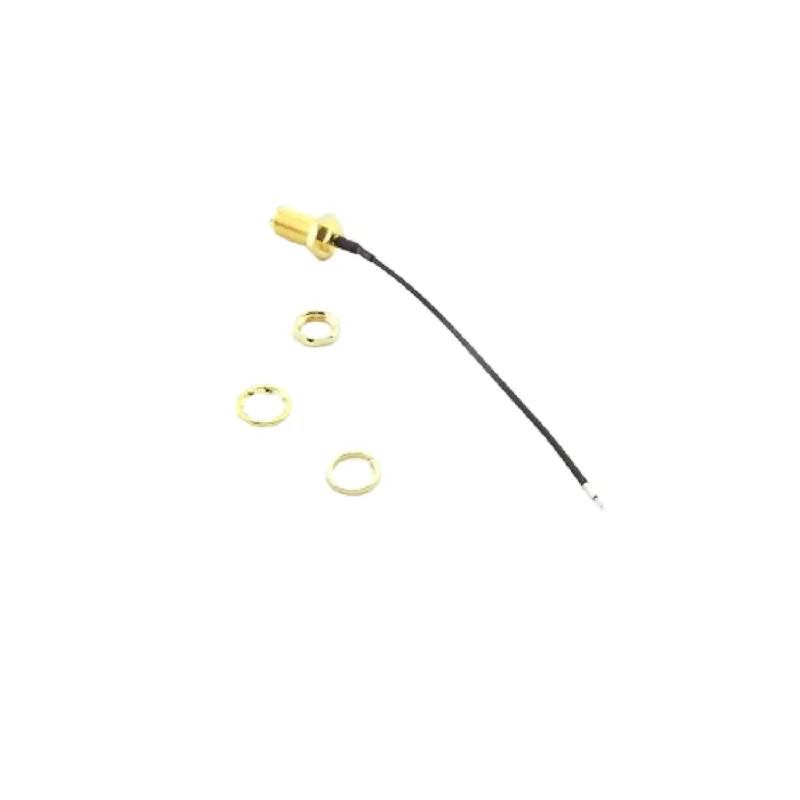

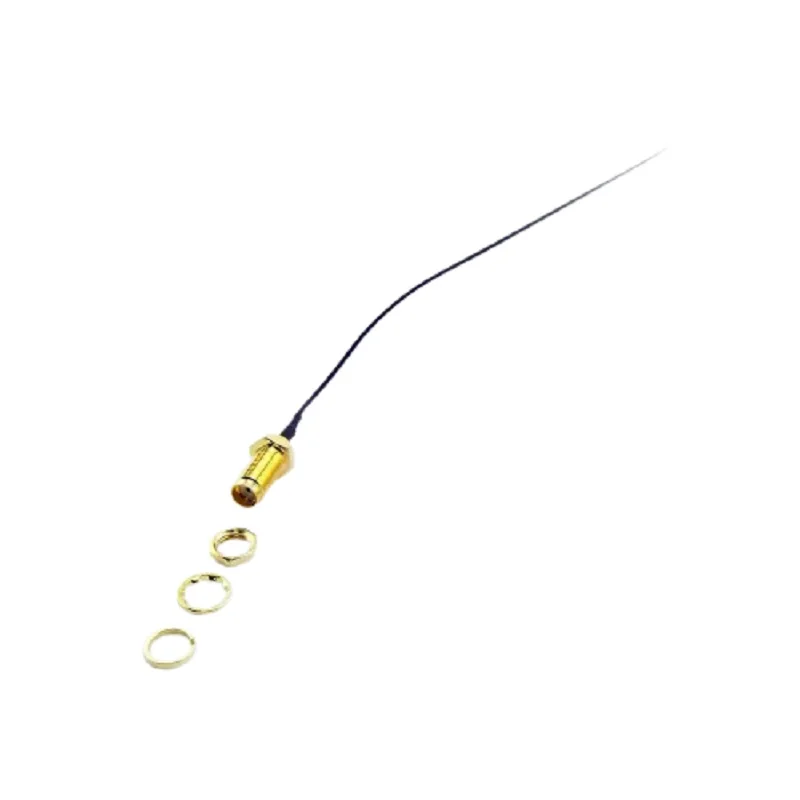

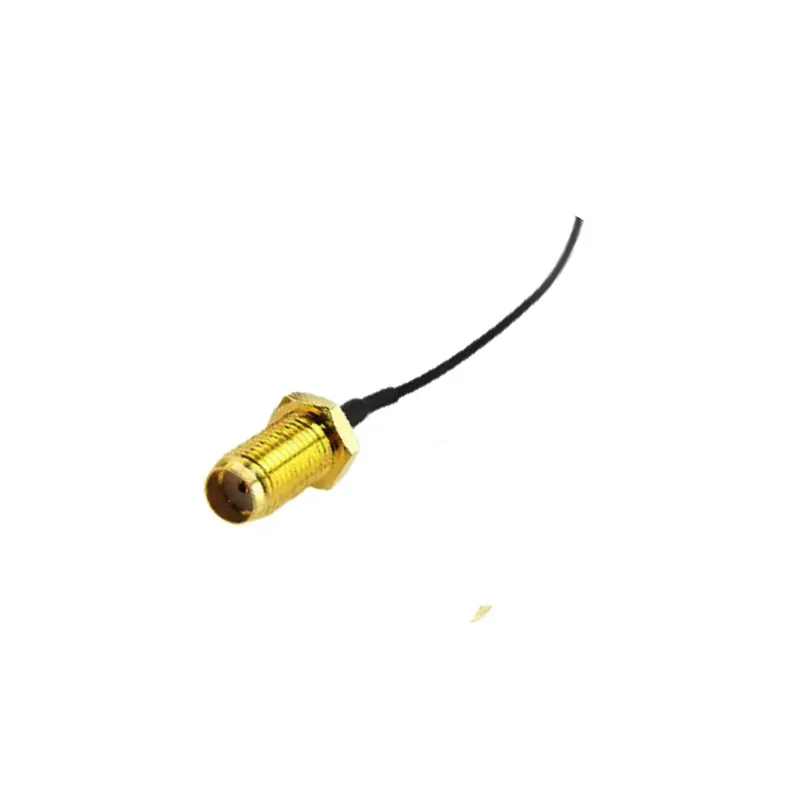

SMA Female to Stripping Head Cable 5cm RG1.13
This 5cm RG1.13 coaxial cable features an SMA female connector on one end and a stripped, tinned termination on the other, designed for custom antenna builds and direct PCB soldering in RF projects.
Features
- Custom Termination: SMA female to stripped, tinned leads allows direct connection to PCBs, antenna elements, or custom RF circuits.
- Precision RF Cable: Utilizes RG1.13 coaxial cable (approx. 1.13mm diameter) for controlled impedance and minimal signal loss over short runs.
- Secure SMA Coupling: Female connector features a threaded barrel (36 TPI) for a secure, durable mechanical connection to SMA male jacks.
- Compact Form Factor: Short 5cm length and 11mm connector are ideal for tight-space deployments inside enclosures or on development boards.
Out of stock
This SMA female to stripping head cable is a fundamental RF interconnect for engineers and makers building custom wireless systems. The SMA female connector provides a standard, threaded interface for connecting to external antennas or test equipment, while the stripped and tinned opposite end offers flexibility for direct soldering onto PCB pads, antenna radiating elements, or terminal blocks. The use of RG1.13 coaxial cable ensures a consistent 50-ohm characteristic impedance, critical for maintaining signal integrity in Wi-Fi, cellular, GPS, and other RF applications up to several GHz.
Constructed with a brass or stainless-steel connector body and nickel or gold-plated contacts, the assembly offers good mechanical durability and reliable electrical conductivity. The 5cm length makes it particularly suitable for internal routing within compact IoT devices, drones, or sensor nodes, minimizing cable clutter and potential impedance mismatches. This cable is a practical solution for prototyping, repairing antenna links, or creating permanent installations where a pre-made pigtail is not suitable.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 11 × 8 × 0.5 cm |
