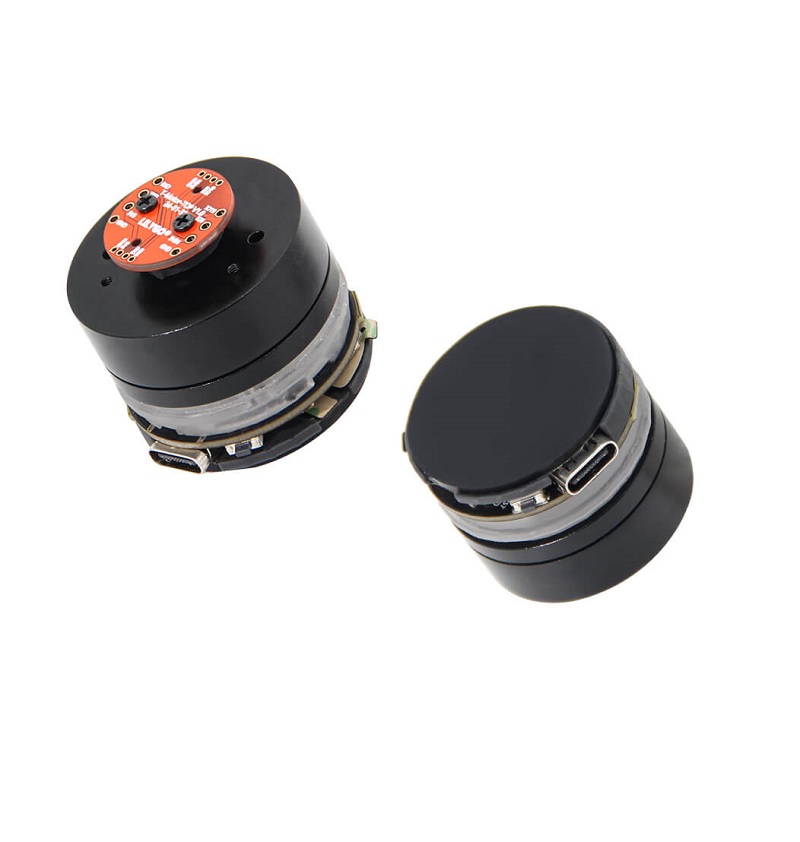

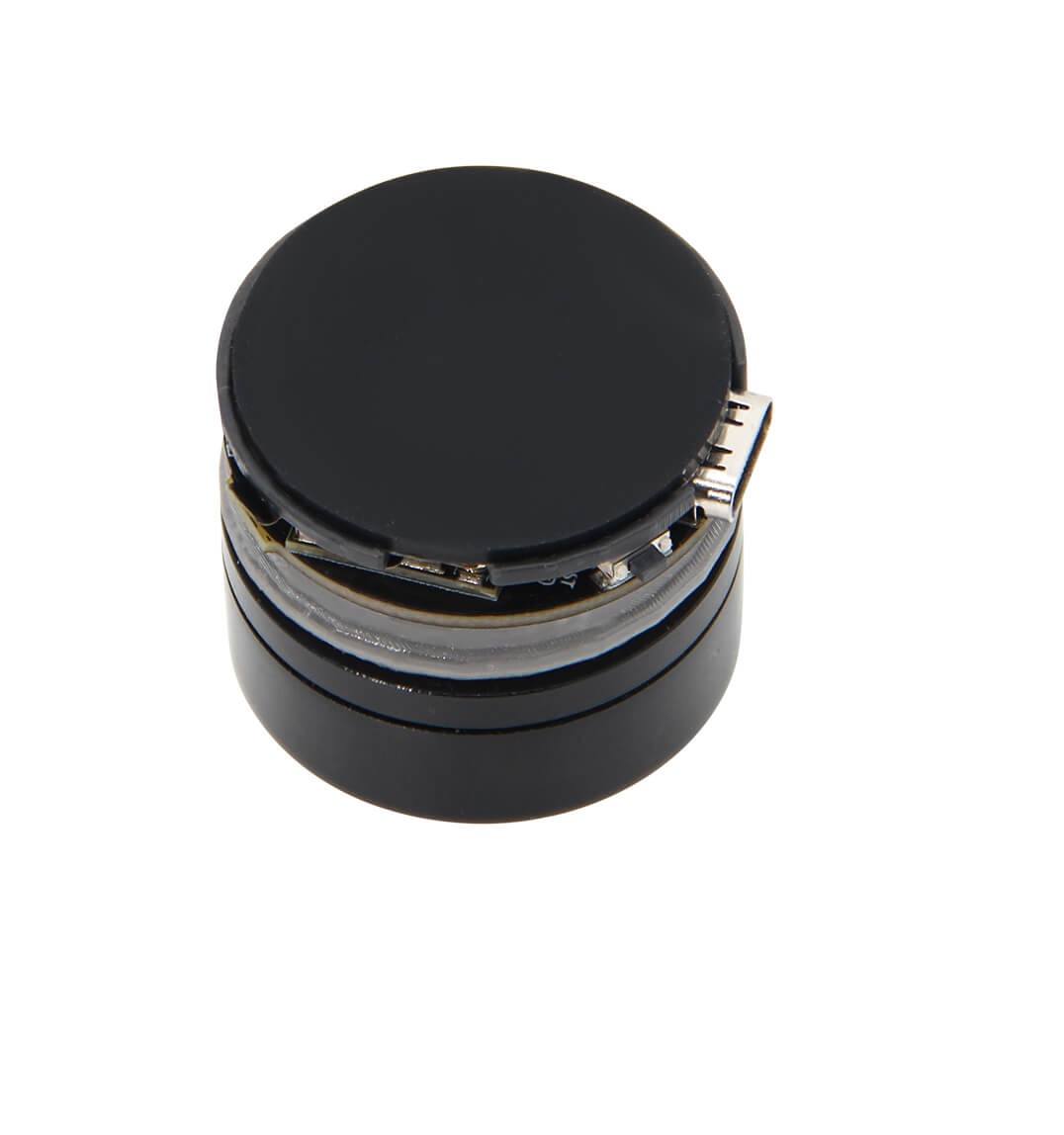

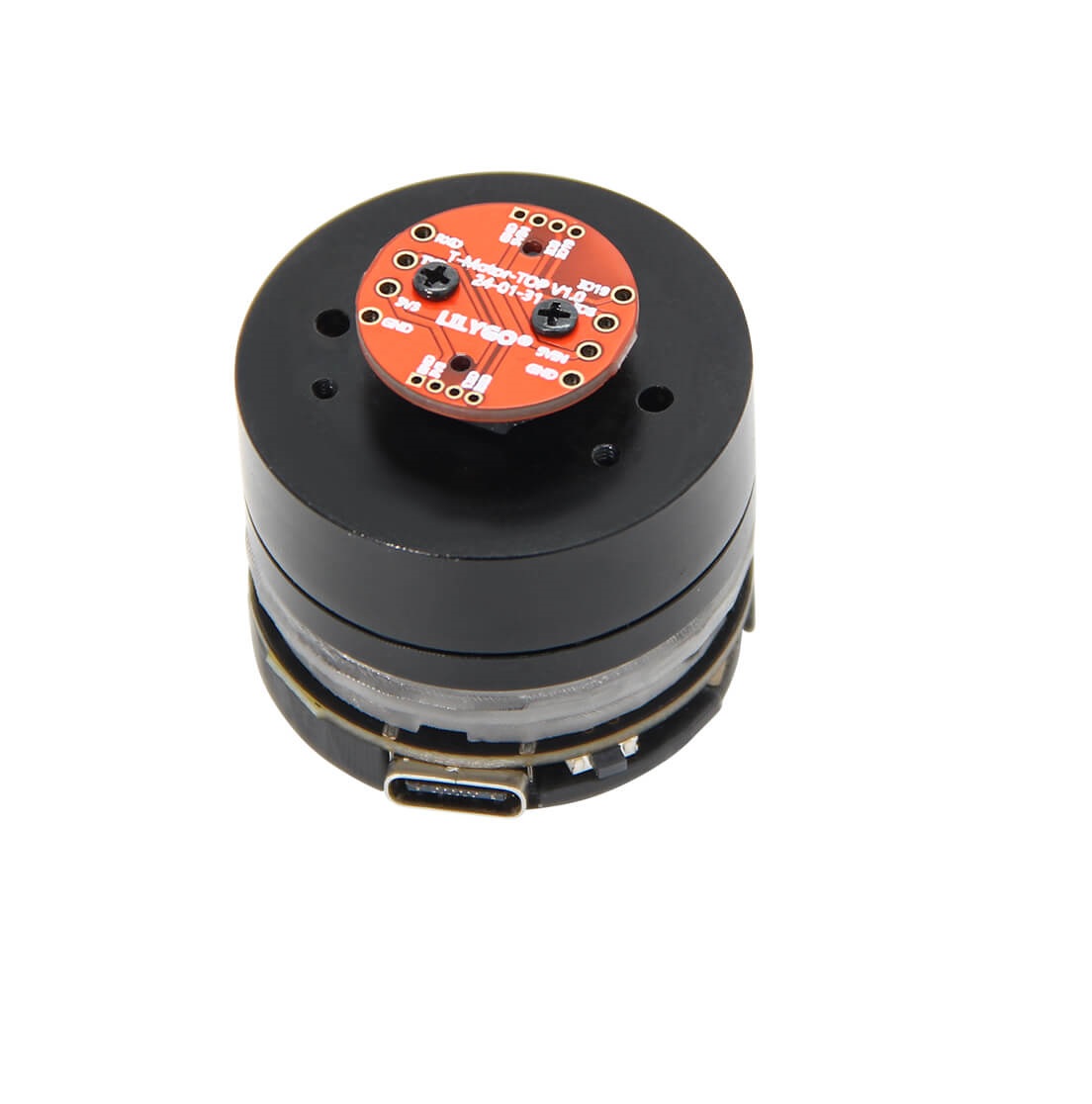

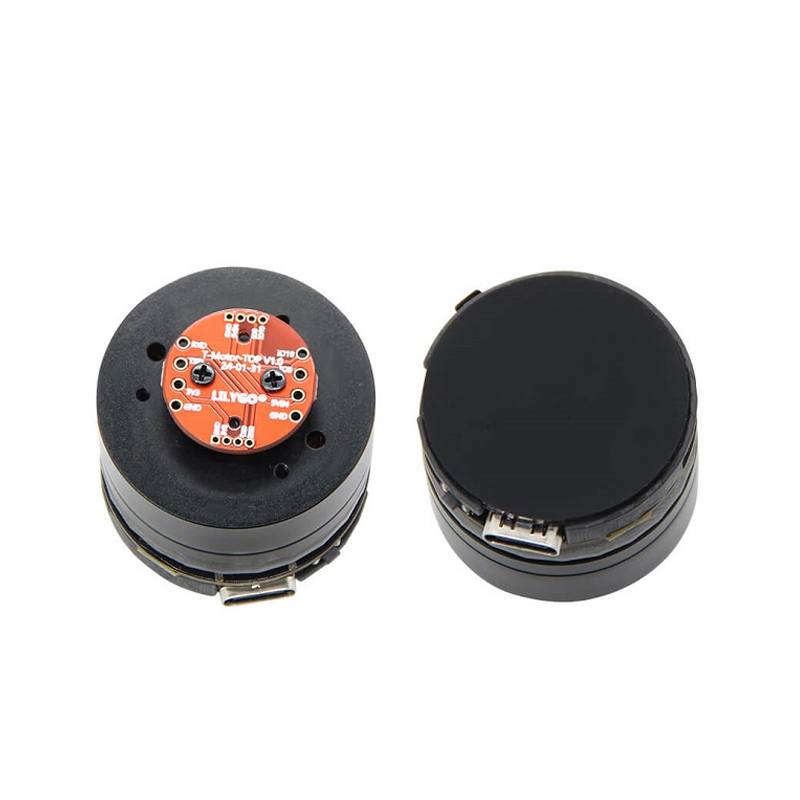

LilyGO T-Knob ESP32-C6 BLDC Gimbal Motor with MT6701 Encoder

This board integrates an ESP32-C6 microcontroller with a BLDC gimbal motor and MT6701 angle encoder. It offers precise rotational control and feedback, ideal for custom user interfaces, robotic actuators, or experimental position sensing. With Wi-Fi 6 and Bluetooth 5, it enables versatile IoT and embedded control applications.

The onboard ESP32-C6-MINI-1U microcontroller supports a comprehensive suite of wireless protocols. These include 2.4 GHz Wi-Fi 6 for high-speed data transfer, Bluetooth 5 (LE) for energy-efficient short-range communication, and 802.15.4, which is foundational for mesh networking standards like Zigbee and Thread in various IoT deployments and sensor networks.

The MT6701 is a Hall-based angle position encoder. It provides non-contact, high-resolution angular position sensing for the BLDC gimbal motor. This precise feedback mechanism allows the ESP32-C6 to accurately determine the motor's shaft position, enabling very fine and stable rotational control, crucial for applications requiring exact mechanical positioning or haptic feedback.

Yes, the LilyGO T-Knob ESP32-C6 can be integrated into custom drone payload systems requiring precise motor control and position sensing. Its BLDC gimbal motor and encoder are suitable for small stabilization gimbals or specialized robotic actuators. The ESP32-C6's wireless capabilities also facilitate remote control and data telemetry.

The ESP32-C6, being an Espressif chip, is highly compatible with the ESP-IDF (Espressif IoT Development Framework) for robust, low-level programming. It also supports popular environments like Arduino IDE, PlatformIO, and MicroPython, offering flexibility for developers with varying skill levels. This broad compatibility streamlines firmware development and deployment.
