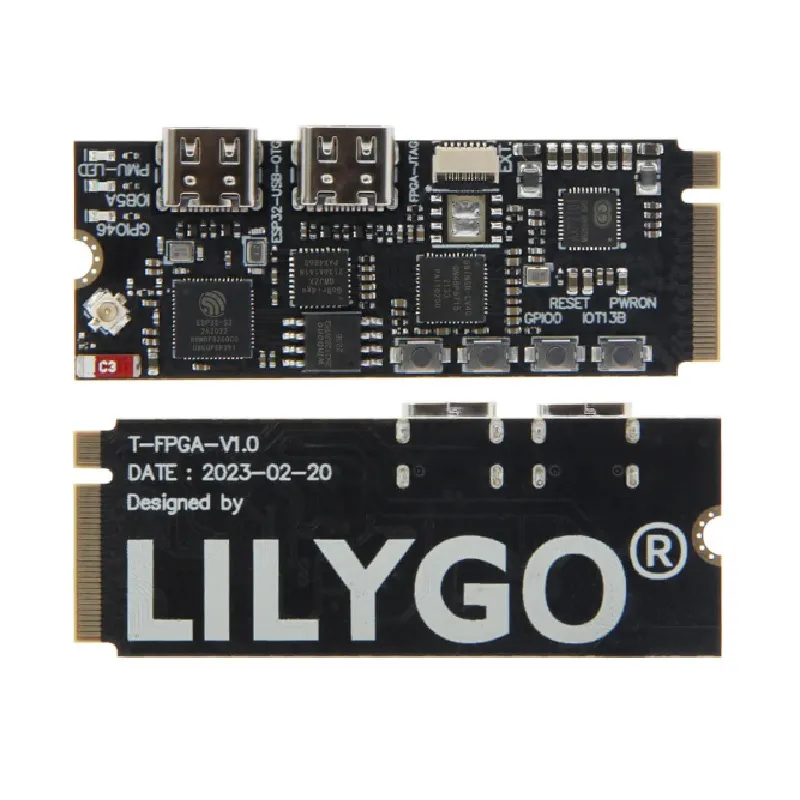

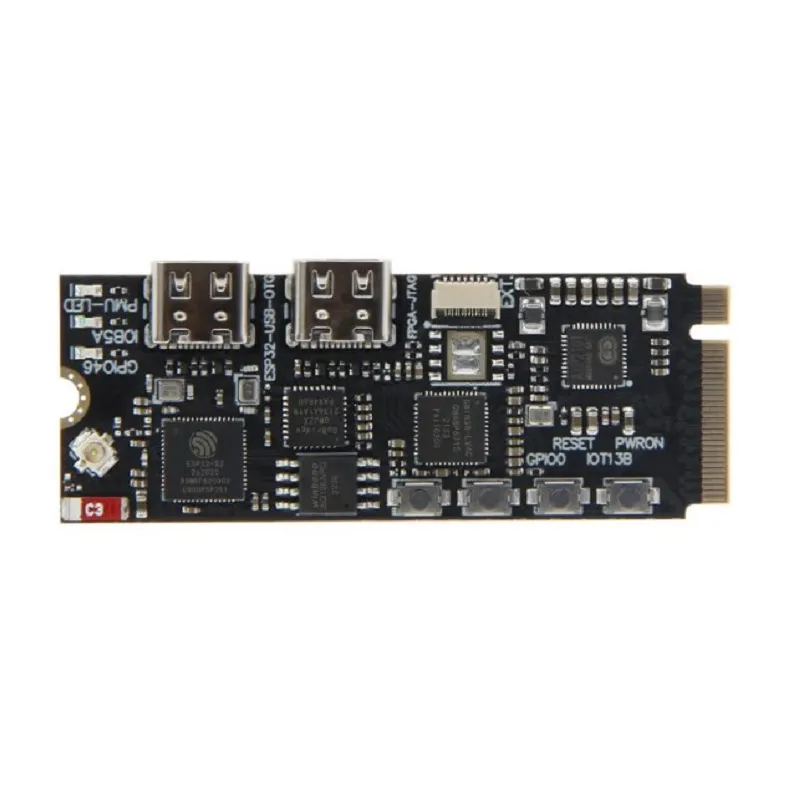

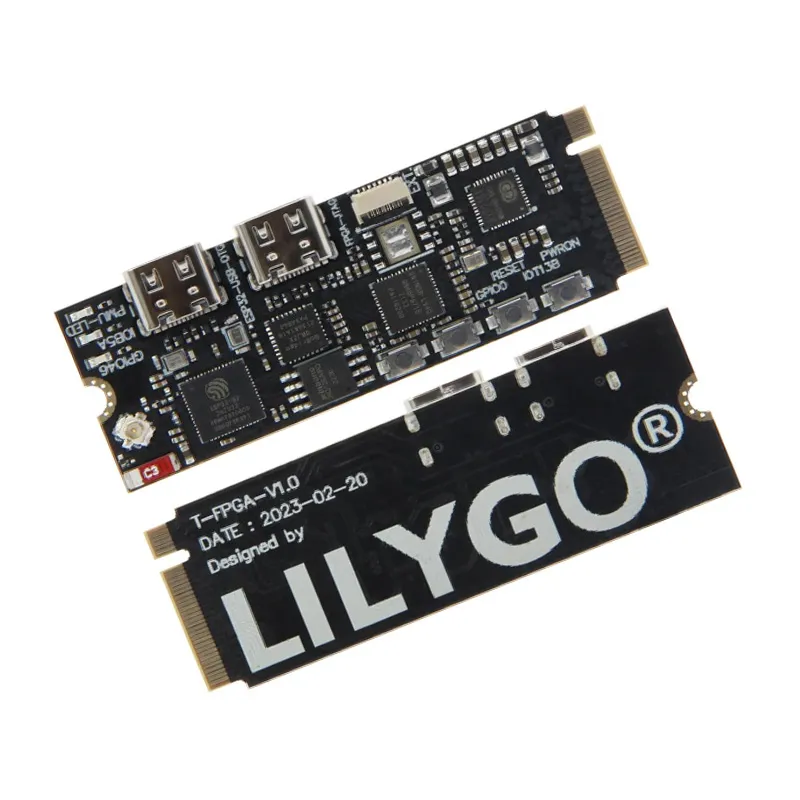

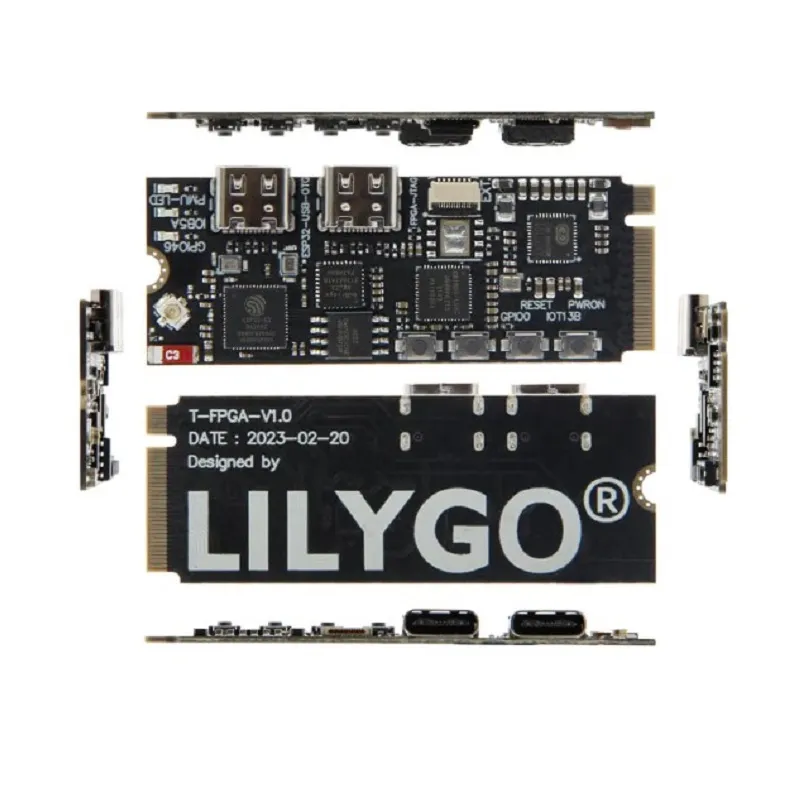

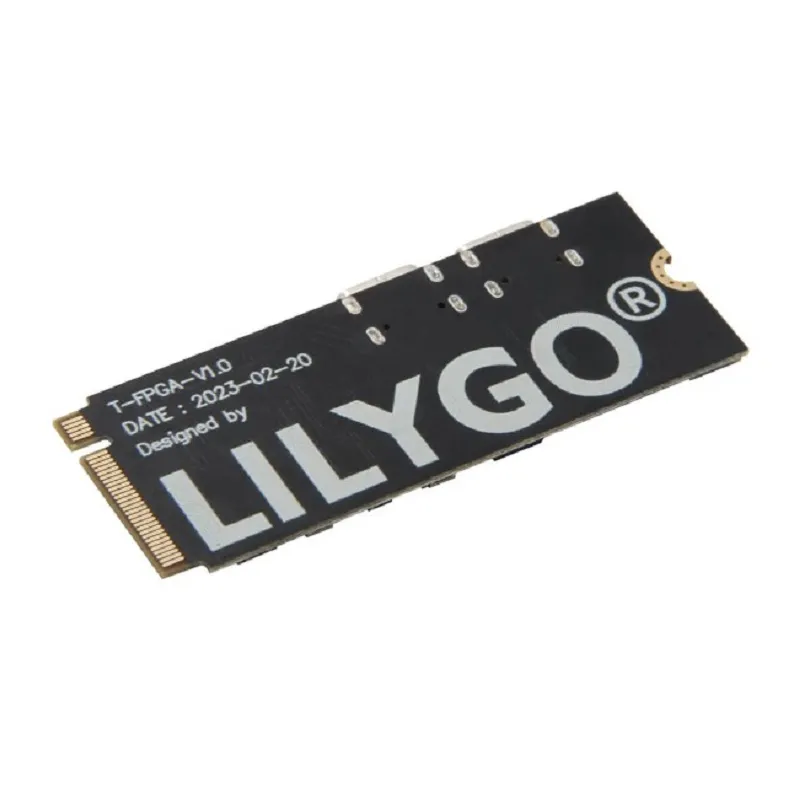

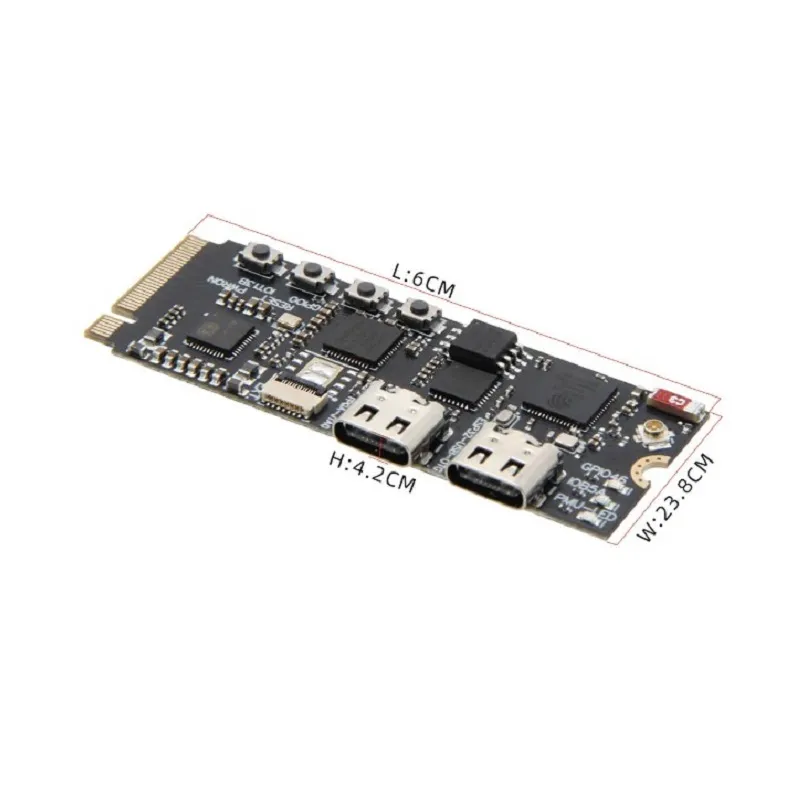

LilyGO T-FPGA Dev Board - ESP32-S3 & Cyclone IV FPGA

The LilyGO T-FPGA board supports common FPGA development environments such as Verilog and VHDL for logic design. Developers can utilize GOWIN's official toolchains or open-source alternatives to synthesize, implement, and program custom digital circuits onto the integrated GW1NSR-4C FPGA for unique applications.

The ESP32-S3 acts as a powerful microcontroller handling wireless connectivity (Wi-Fi, Bluetooth 5.0 LE) and general-purpose processing. It can interface with the FPGA via various GPIOs, SPI, or I2C to configure the FPGA, exchange data, or trigger specific logic functions, enabling complex co-processor designs and custom interfaces.

The ESP32-S3 on the LilyGO T-FPGA features 16MB of Flash memory and 8MB of PSRAM for its operations and applications. The integrated GOWIN GW1NSR-4C FPGA has its own dedicated 256KB of Flash and 64MB of PSRAM, allowing for independent configuration storage and more extensive logic designs.

This dual-chip architecture is ideal for applications requiring both flexible custom hardware acceleration and robust wireless connectivity. Common uses include edge AI inference, industrial control systems with real-time logic, advanced IoT sensor hubs, robotics, custom communication protocols, and high-performance signal processing where an MCU alone wouldn't suffice.
