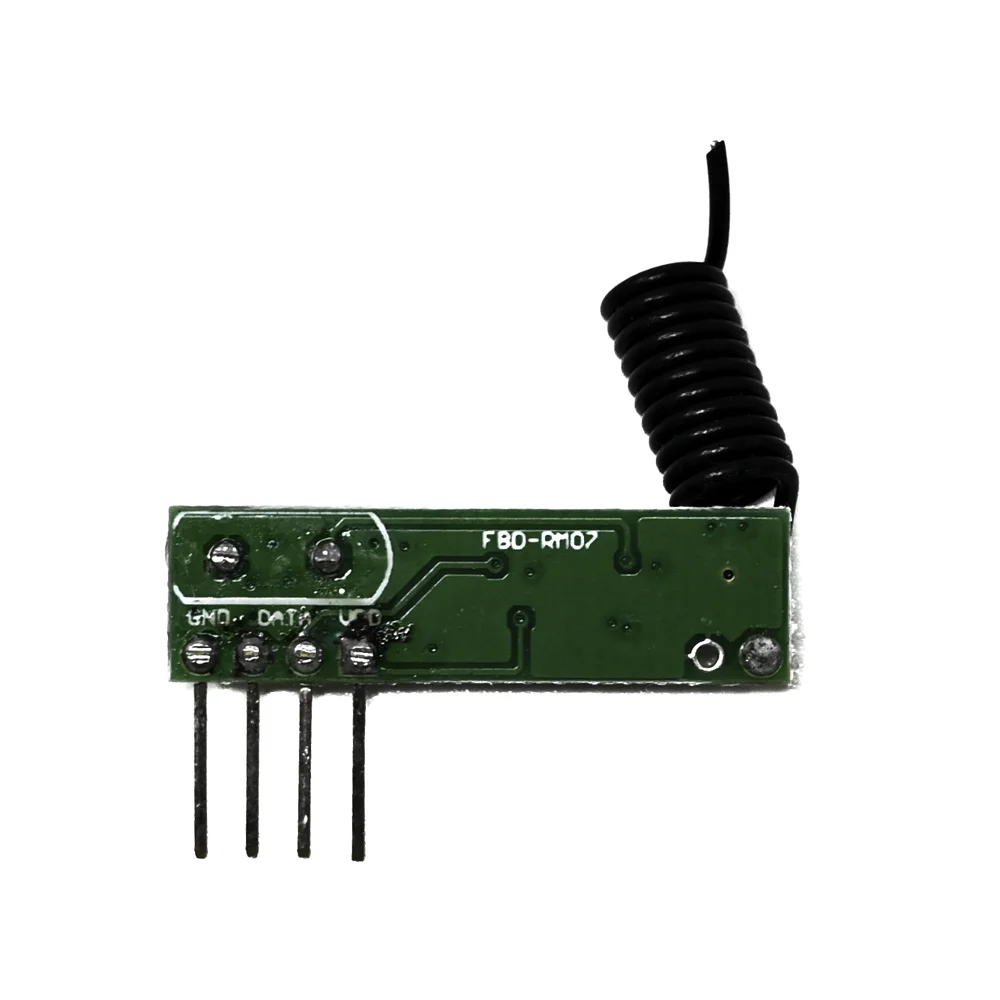

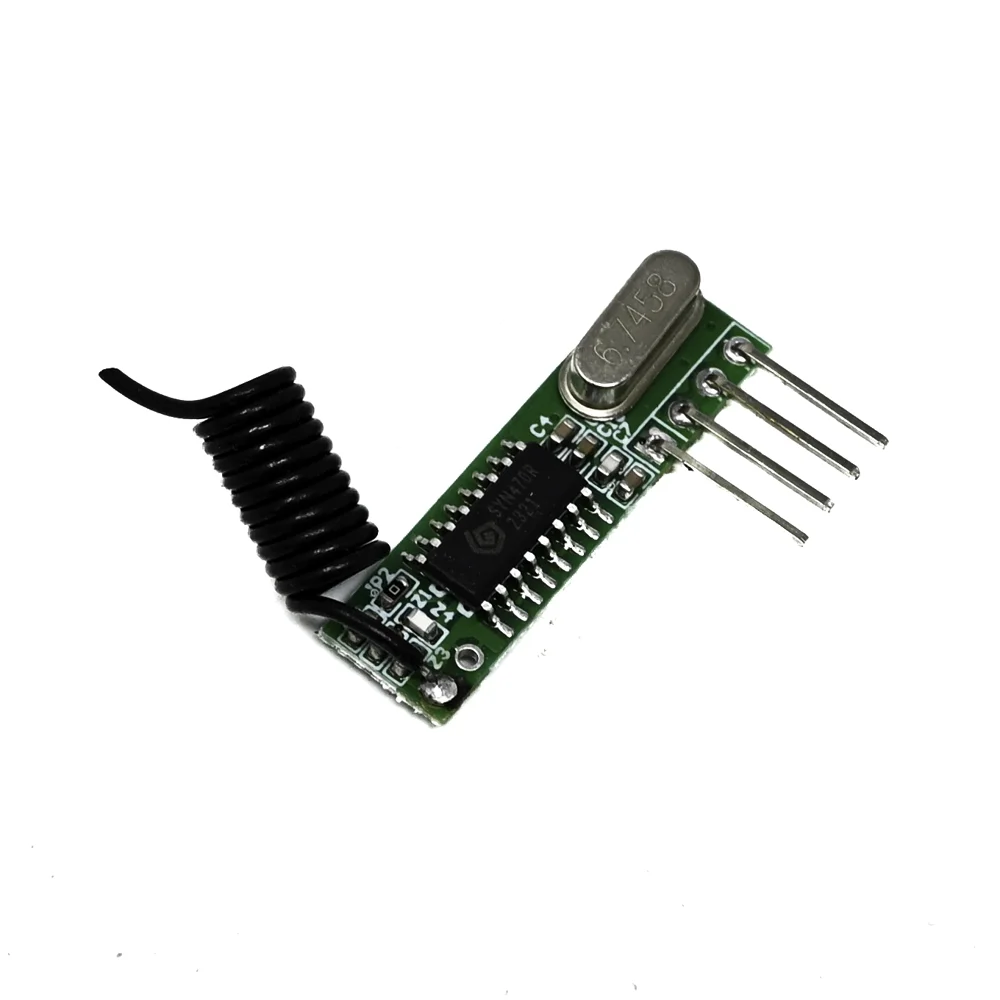

KL-CW11 433MHz RF Receiver Module w/ ASK/OOK Modulation

Connect the module's VCC to Arduino 5V, GND to GND, and the DATA pin to a digital input pin (e.g., D2). Use a library like RCswitch or VirtualWire to decode the ASK signals. Ensure you use a common ground with the paired 433MHz transmitter and consider adding a small capacitor (10-100µF) near the module's power pins to stabilize voltage during signal reception.

Yes, the module includes a variable inductor (the tuning node) that can be carefully adjusted with a non-metallic tool. This allows you to fine-tune the resonant frequency across a range from approximately 315MHz to 433MHz to better match your specific transmitter. Optimal tuning is achieved by monitoring the digital output signal quality on an oscilloscope while adjusting.

Range depends heavily on transmitter power, antenna type/length (a 17.3cm wire for 433MHz is ideal), and environmental obstacles. With a standard 10mW transmitter and simple wire antennas, expect 20-50 meters indoors and up to 100 meters in open, line-of-sight conditions. Using higher-gain external antennas on both ends can significantly extend this range.

The module outputs the raw, modulated digital signal. You must decode this signal externally. For common remote control codes, use a decoder IC like the HT12D. For custom data, use a microcontroller (Arduino, ESP32) with a library that can decode ASK/OOK by sampling the data pin and interpreting the pulse widths to reconstruct the transmitted bytes or bits.

Use a clean 3V to 5V DC supply. While current draw is low (4mA), sudden current spikes during reception can cause voltage drops. Place a 10µF to 100µF electrolytic capacitor close to the module's VCC and GND pins. Avoid sharing a noisy power rail with motors or other high-current devices, as this can introduce noise and degrade receiver sensitivity.
