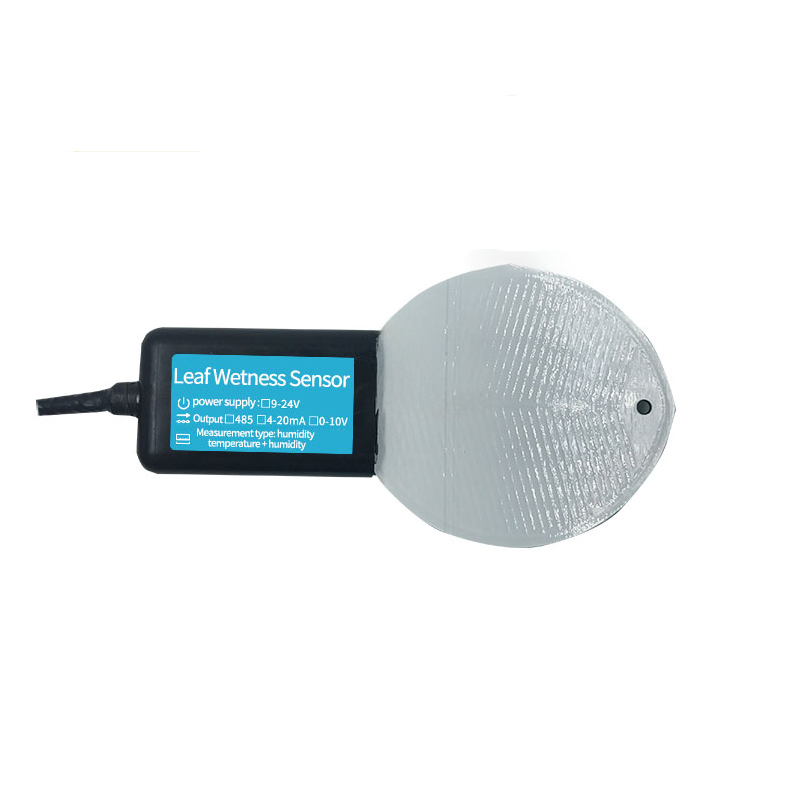

JXBS-3001-YM-5 Leaf Wetness Sensor - RS485 Modbus, IP65 Waterproof

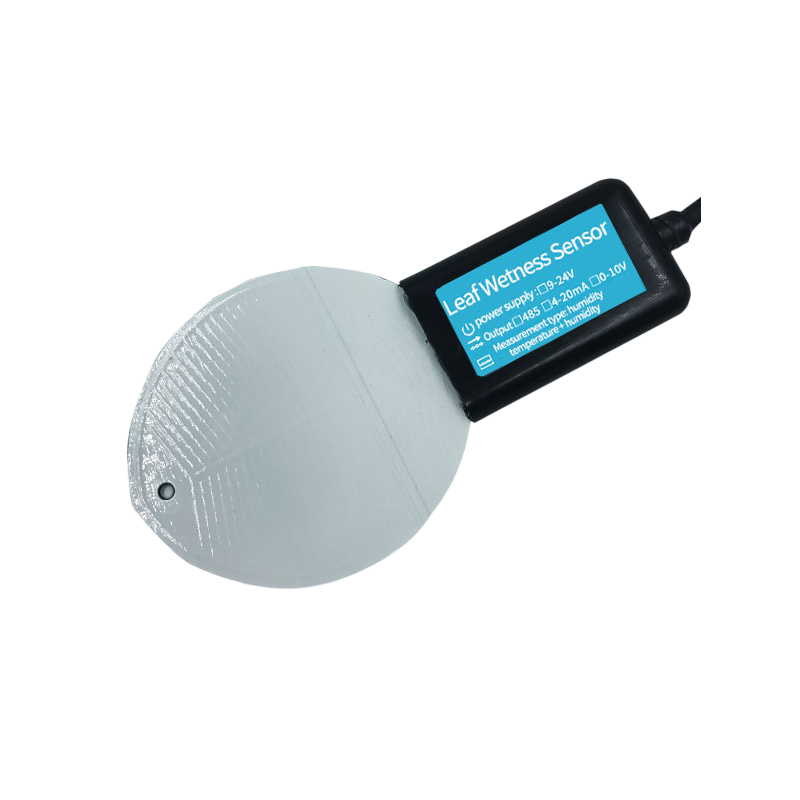

JXBS-3001-YM-5 Leaf Wetness Sensor - RS485 Modbus, IP65 Waterproof - Image 2
SKU: SENS-3371
📋 GST Invoice Available

JXBS-3001-YM-5 Leaf Wetness Sensor - RS485 Modbus, IP65 Waterproof

₹4,799.00 (Inclusive of all taxes)
Out of Stock

The JXBS-3001-YM-5 is a dedicated leaf wetness sensor with integrated temperature monitoring, designed for precision agriculture and environmental monitoring. It communicates via RS485 Modbus protocol for reliable, long-distance data transmission to PLCs, data loggers, and IoT gateways, and is housed in an IP65-rated enclosure for durable outdoor operation.

Features

  • Dedicated leaf wetness sensing for precise agricultural monitoring.
  • Integrated temperature measurement with ±1℃ accuracy.
  • RS485 Modbus communication for robust, long-distance industrial connectivity.
  • IP65-rated waterproof and dustproof enclosure for harsh outdoor environments.
  • Wide operating temperature range from -40°C to 80°C.

Out of stock

Description

The JXBS-3001-YM-5 Leaf Wetness Sensor employs a specialized sensing principle to detect the presence and duration of moisture on leaf surfaces, a critical parameter for predicting plant disease and optimizing irrigation schedules. It integrates a high-precision temperature sensor to provide ambient thermal context. The sensor’s signal is conditioned and transmitted via a stable RS485 interface using the Modbus RTU protocol, ensuring noise immunity and compatibility with industrial automation systems.

Encased in a rugged, IP65-rated housing, the sensor is engineered to withstand prolonged exposure to rain, dust, and temperature extremes from -40°C to 80°C. Its low-power design enables deployment in remote, solar-powered field stations, making it an essential component for smart agriculture, greenhouse climate management, and ecological research networks.

Key Features

  • Specialized Leaf Wetness Detection: Accurately measures surface moisture to model plant disease risk and irrigation needs.
  • Integrated Temperature Monitoring: Provides ambient temperature data with ±1°C accuracy for comprehensive environmental analysis.
  • Industrial-Grade Communication: RS485 Modbus RTU protocol ensures reliable data transmission over distances up to 1200 meters on a single bus.
  • Rugged Environmental Protection: IP65-rated enclosure guarantees operation in dusty, wet, and variable outdoor conditions.
  • Extended Operational Range: Functions reliably across a wide temperature span from -40°C to +80°C.
  • Optimized Power Profile: Low operating current (~20mA) facilitates use in battery-powered or solar-based remote monitoring stations.
  • Robust Mechanical Construction: Durable housing and sealed design ensure long-term field reliability and reduced maintenance.

Applications

  • Smart Agriculture Irrigation Scheduling: Deploy in fields to monitor leaf wetness duration, triggering irrigation only when necessary to conserve water and prevent fungal diseases.
  • Greenhouse Climate Control Systems: Integrate with environmental controllers to manage ventilation and heating based on real-time canopy moisture and temperature data.
  • Viticulture and Horticulture Disease Modeling: Use data to predict outbreaks of downy mildew, botrytis, and other moisture-dependent pathogens.
  • Weather Station Networks: Enhance meteorological stations with precise leaf-level wetness measurements for agrometeorological research and forecasting.
  • Ecological and Forestry Research: Monitor canopy interception, dew formation, and microclimate conditions in natural ecosystems.

Technical Specifications

Model NumberJXBS-3001-YM-5
Sensor TypeLeaf Wetness & Temperature
Communication InterfaceRS485 (Modbus RTU)
Supply Voltage9-24 VDC
Operating Current~0.02 A (20 mA)
Leaf Wetness OutputDigital/Modbus Register Value
Temperature Range-40°C to 80°C
Temperature Accuracy±1°C
Ingress ProtectionIP65
Dimensions (L x W)170 mm x 80 mm
Weight350 g

Frequently Asked Questions

What is the supply voltage range for the JXBS-3001-YM-5 sensor?

The sensor operates on a wide-range DC power supply from 9 to 24 volts. This flexibility allows it to be powered by common 12V solar systems, industrial PLC power rails, or regulated DC adapters, ensuring easy integration into various field deployment setups.

How do I communicate with this sensor and read the data?

The sensor uses the RS485 physical layer and the Modbus RTU protocol. Connect the A and B wires to an RS485 transceiver on your host device (e.g., PLC, data logger, Raspberry Pi with USB adapter). You will need to query the specific Modbus register addresses defined in the sensor's datasheet to read the leaf wetness index and temperature values.

Is this sensor suitable for permanent outdoor installation?

Yes, its IP65 rating provides protection against dust ingress and low-pressure water jets from any direction. Combined with its operating temperature range of -40°C to 80°C, it is designed for reliable, long-term performance in exposed agricultural, horticultural, and environmental monitoring applications.

What does the leaf wetness output actually measure?

The sensor outputs a calibrated value representing the presence and persistence of moisture on its sensing surface, which mimics a leaf. This value, often an index or a scaled digital number, correlates to the duration of wetness, which is a key parameter for modeling plant disease development and scheduling irrigation.

Package Includes

  • 1 x JXBS-3001-YM-5 Leaf Wetness Sensor

Additional Information

Weight 0.35 kg
Dimensions 17 × 8 cm
