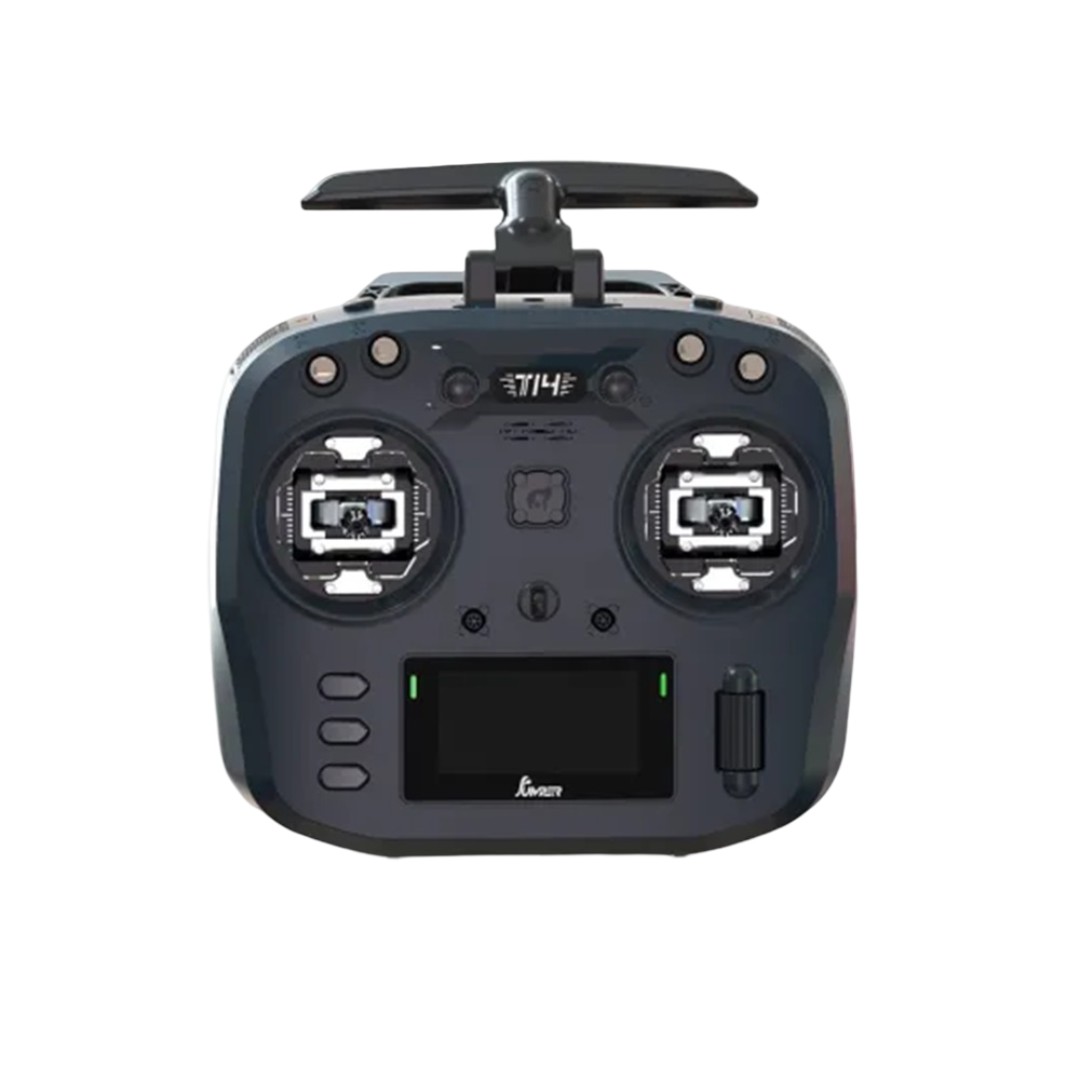

Jumper T14 Radio Controller with Standard Gimbals - ELRS

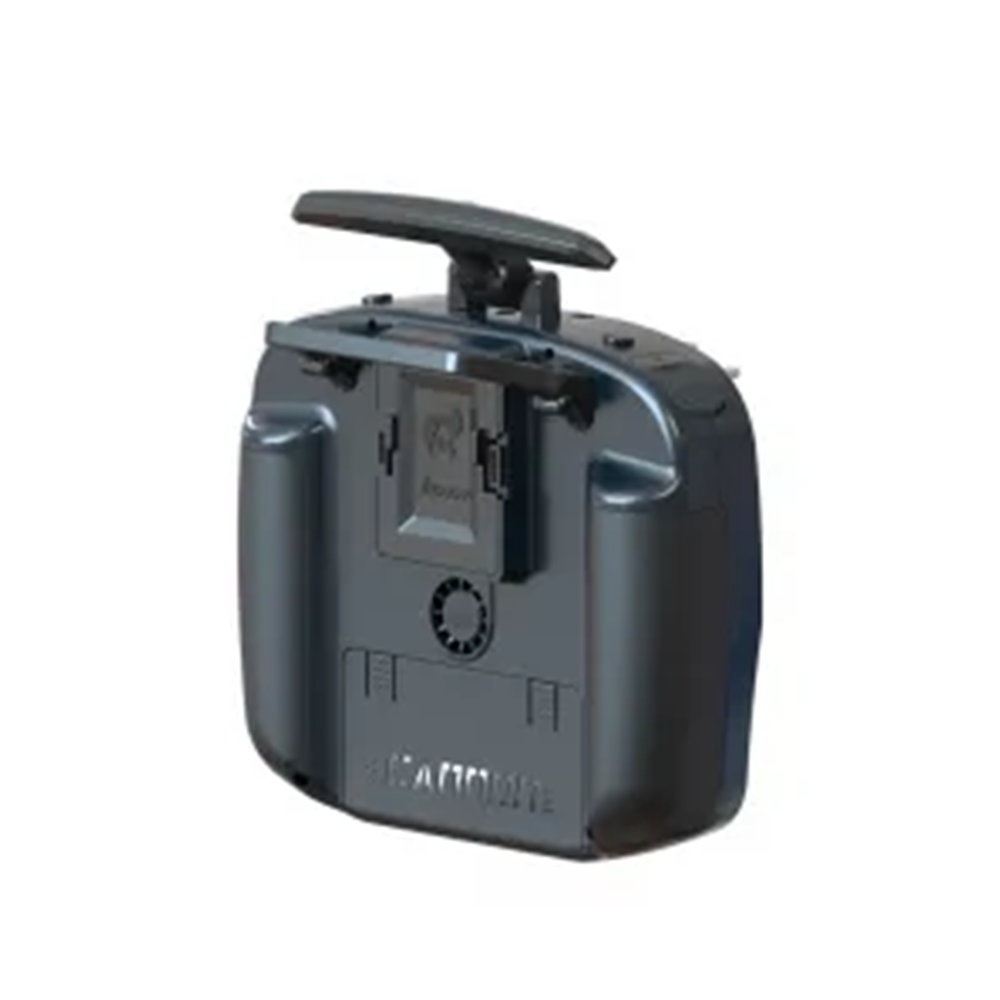

Jumper T14 Radio Controller with Standard Gimbals - ELRS - Image 2

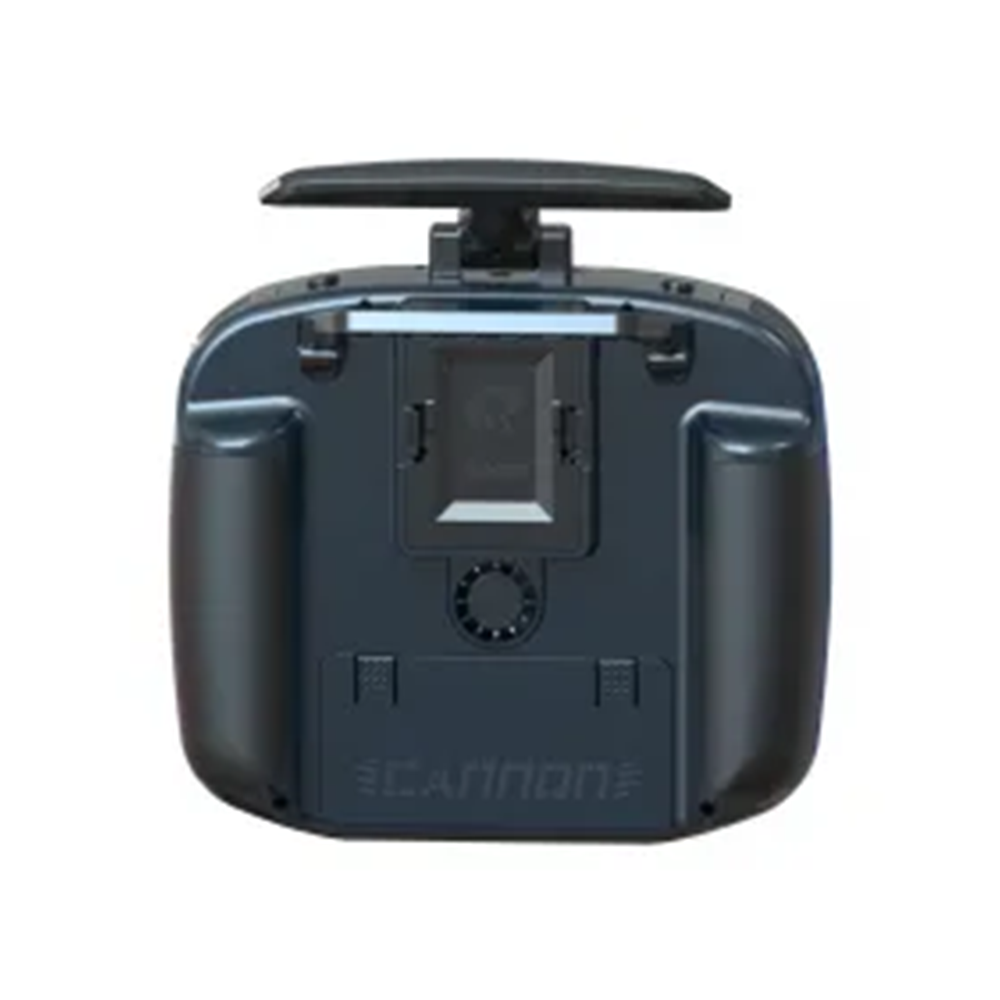

Jumper T14 Radio Controller with Standard Gimbals - ELRS - Image 3
SKU: DRFC-3392
📋 GST Invoice Available

Jumper T14 Radio Controller with Standard Gimbals - ELRS

₹14,199.00 (Inclusive of all taxes)
Out of Stock

The Jumper T14 is a feature-rich radio transmitter with a built-in 2.4GHz ExpressLRS module, powered by an STM32F407 MCU and running EdgeTX firmware. It supports 6-8.4V input via dual 21700 Li-ion cells and features a standard JR bay for external RF modules.

Features

  • Built-in 2.4GHz ExpressLRS (ELRS) module with up to 30dBm (1W) output power.
  • Powered by STM32F407ZETB MCU for robust EdgeTX firmware compatibility.
  • Features VS-M Hall effect gimbals for precise, drift-free control.
  • 2.42-inch OLED display (128×64) for clear telemetry and menu navigation.
  • Standard JR external module bay compatible with Crossfire, FrSky, and other systems.

Out of stock

Description

The Jumper T14 transmitter is engineered for demanding FPV and RC pilots, integrating a high-performance internal ELRS 2.4GHz module alongside an external JR module interface for ultimate protocol flexibility. Its core is driven by an STM32F407 processor, ensuring smooth operation with the open-source EdgeTX firmware for deep customization of mixes, switches, and telemetry.

An integrated cooling fan manages thermal loads during extended high-power transmission sessions. The ergonomic shell houses bi-directional foldable antennas for optimized signal reception and a 10W fast-charging circuit for the dual 21700 Li-ion battery setup, providing a balance of runtime and quick turnaround between flights.

Key Features

  • High-Power Internal RF: Integrated 2.4GHz ExpressLRS module delivers up to 1W (30dBm) output for exceptional long-range and penetration capability.
  • Advanced Processing Platform: STM32F407ZETB microcontroller provides ample processing power for complex EdgeTX scripting and model configurations.
  • Precision Control Interface: Equipped with VS-M Hall effect gimbals offering smooth, magnetic sensing for accurate stick inputs without potentiometer wear.
  • Dual RF System Flexibility: Standard JR module slot allows simultaneous use of the internal ELRS and an external module (e.g., Crossfire, Ghost) for diverse receiver fleets.
  • Enhanced Thermal Management: Built-in cooling fan actively dissipates heat from the internal RF power amplifier, maintaining stability during prolonged high-power use.
  • Rapid Power System: Supports 10W fast charging for the dual 21700 Li-ion batteries, minimizing downtime between flying sessions.
  • High-Contrast Display: Large 2.42-inch OLED screen offers excellent visibility in various lighting conditions for monitoring telemetry and settings.

Applications

  • Primary transmitter for long-range FPV drones utilizing the internal high-power ExpressLRS link.
  • Versatile ground station for multi-protocol RC models using the external JR bay for systems like TBS Crossfire or ImmersionRC Ghost.
  • Competitive FPV racing and freestyle piloting requiring low-latency control and extensive switch programmability via EdgeTX.
  • Complex aerial photography and mapping platforms where multiple flight modes and telemetry feedback are essential.

Technical Specifications

Item TypeRadio Controller
MCU TypeSTM32F407ZETB
Screen Size2.42 inch
Display TypeOLED (128x64)
Internal RF ProtocolExpressLRS 2.4GHz
Max. RF Power30dBm (~1000mW)
External Module InterfaceStandard JR Bay (Compatible with JR/FrSky/Crossfire)
Gimbal TypeVS-M Hall Sensor
Working Voltage6 - 8.4V
Battery Configuration2x 21700 Li-ion (Not Included)
Charging10W Fast Charging
CoolingBuilt-in Fan
Dimensions185 x 175 x 79 mm
Weight4719 grams (with batteries)
FirmwareEdgeTX

Frequently Asked Questions

What type of batteries does the Jumper T14 require, and are they included?

The Jumper T14 requires two 21700-sized Li-ion batteries to operate within its 6-8.4V input range. These batteries are not included with the transmitter, so you must purchase them separately. The transmitter supports 10W fast charging for compatible battery packs.

Can I use other radio protocols besides the built-in ExpressLRS?

Yes. The Jumper T14 features a standard JR-style external module bay, allowing you to install and use other long-range systems like TBS Crossfire, ImmersionRC Ghost, or FrSky R9 modules concurrently with or instead of the internal ELRS. This provides exceptional flexibility for controlling drones with different receivers.

What firmware does the Jumper T14 run, and is it customizable?

The transmitter runs the open-source EdgeTX firmware on its STM32F407 MCU. EdgeTX offers deep customization, allowing you to create complex mixer setups, configure logical switches, display extensive telemetry data, and install Lua scripts for enhanced functionality, making it highly adaptable for advanced pilots.

What is the purpose of the internal cooling fan?

The integrated cooling fan actively dissipates heat generated by the internal ExpressLRS module's power amplifier, especially when operating at its maximum 30dBm (1W) output. This thermal management ensures consistent RF performance and protects components during prolonged, high-power transmission sessions common in long-range FPV flight.

Package Includes

  • 1 x Jumper T14 Radio Controller (ELRS Version with Hall Gimbals)

Additional Information

Weight 4.719 kg
Dimensions 17.5 × 18.5 × 7.9 cm

Related Products

Out of Stock

RadioMaster TX12 MKII 2.4GHz Radio Controller - CC2500 Version

14,669.00
Learn More
Out of Stock

HGLRC C1 Remote Control (RC + Strap + Dongle)

8,299.00
Learn More
Out of Stock

RadioMaster ER8 2.4GHz ELRS PWM Receiver

5,129.00
Learn More
Out of Stock

RadioMaster Bandit Nano ExpressLRS 915MHz RF Module

8,069.00
Learn More
Out of Stock

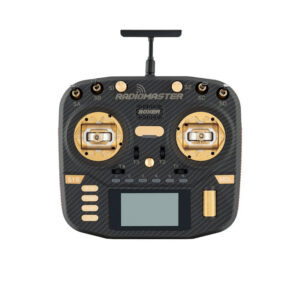

RadioMaster Boxer Max Radio Controller (M2) - ELRS Version - Gold

35,509.00
Learn More
Out of Stock

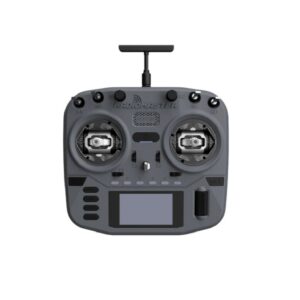

RadioMaster Boxer Crush Radio Controller (M2) - ELRS Version - Iron Grey
