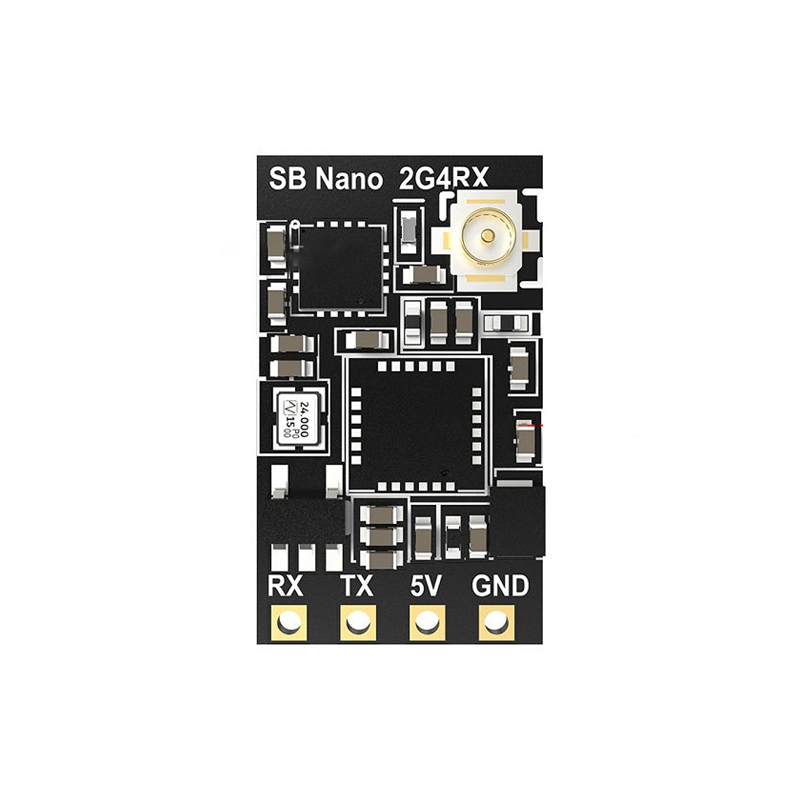

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver
The SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver is a compact, lightweight receiver designed for micro and nano-sized FPV drones. It leverages the ExpressLRS protocol for ultra-low latency, long-range control, and bi-directional telemetry, compatible with EdgeTX and Betaflight systems.
Features
- Nano-sized form factor and lightweight design for installation in tight micro-drone builds.
- Operates on the 2.4GHz band using the open-source ExpressLRS protocol for ultra-low latency and long-range performance.

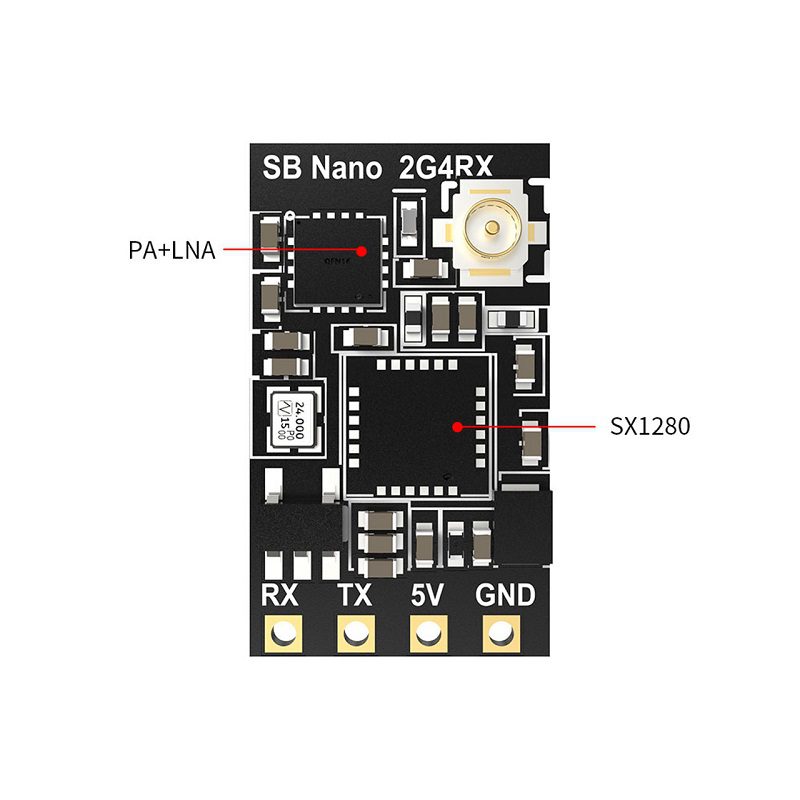

- Features the SX1281+ESP8285 chipset, supporting high refresh rates and reliable telemetry data transmission.
- 5V operating voltage with a measured output power of approximately 120mW for robust signal strength.
- Firmware upgradable to benefit from the latest ExpressLRS performance enhancements and feature updates.
Out of stock
The SpeedyBee Nano 2.4G ExpressLRS Receiver is engineered for pilots who demand maximum performance from minimal hardware. Its nano-sized footprint and sub-2-gram weight make it an ideal choice for weight-sensitive micro and whoop-class drones, without compromising on communication robustness.
Built around the SX1281 transceiver and ESP8285 co-processor, this receiver delivers the full benefits of the ExpressLRS ecosystem, including packet rates up to 500Hz, exceptional range, and reliable telemetry feedback. The integrated T-antenna provides a stable signal pattern suitable for the compact frames it’s designed to inhabit.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 7 × 8 × 2 cm |
