JSN-SR04T-2.0 Waterproof Ultrasonic Obstacle Detection Sensor with 2.5m Separate Probe - 5V DC
The JSN-SR04T-2.0 is a waterproof ultrasonic distance sensor module featuring a separate, sealed transducer probe connected via a 2.5m cable. Operating at 5V DC, it provides reliable obstacle detection from 25 cm to 450 cm, making it suitable for Arduino, Raspberry Pi, and industrial control systems in wet or harsh environments.
Features
- Waterproof, separate transducer probe for reliable operation in wet or harsh conditions.
- Wide sensing range from 25 cm to 450 cm with a resolution of 0.5 cm.
- Simple 5V DC operation with standard trigger/echo pulse-width timing interface.

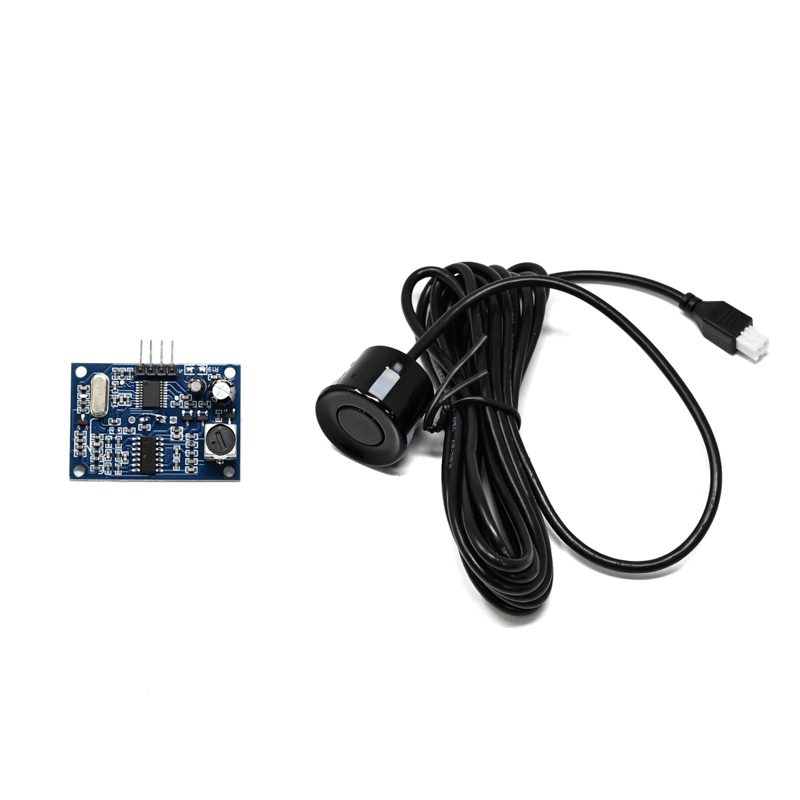

- Integrated 2.5-meter cable connects the sealed probe to the control board.

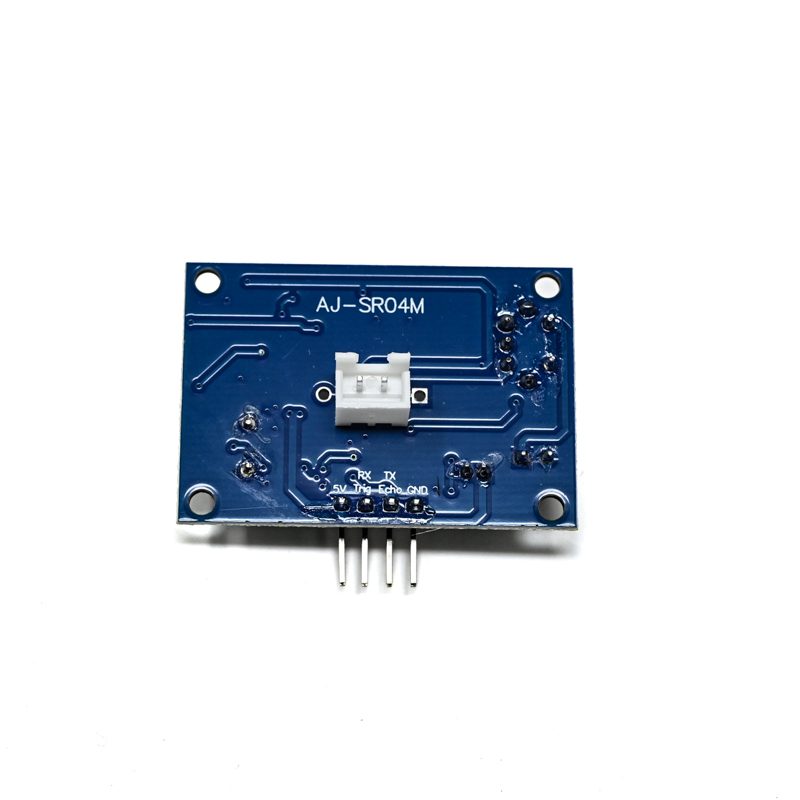

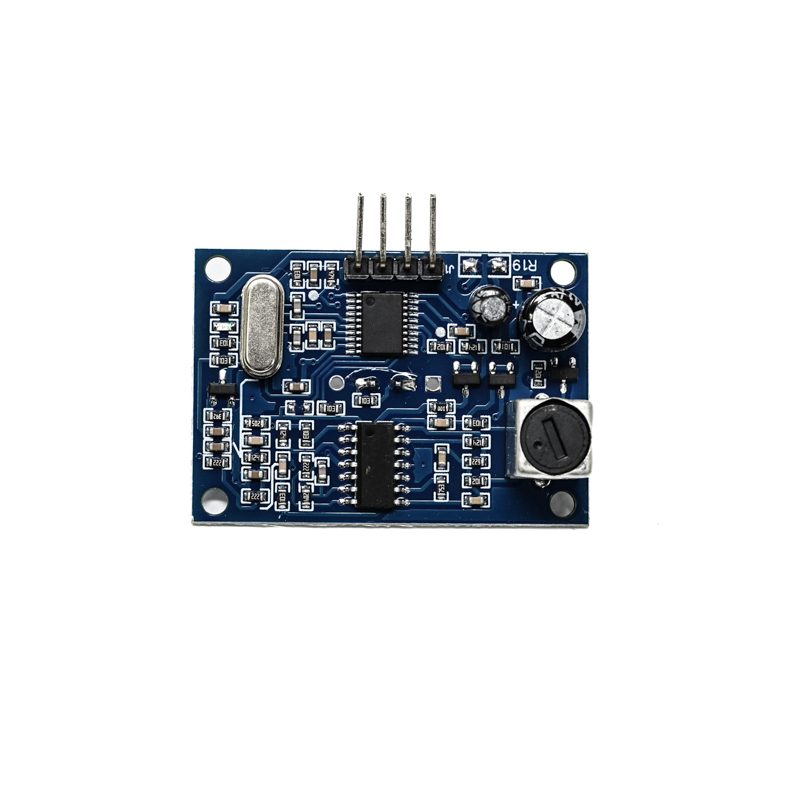

- Compact control board dimensions of 41mm x 28mm for easy integration.
Out of stock

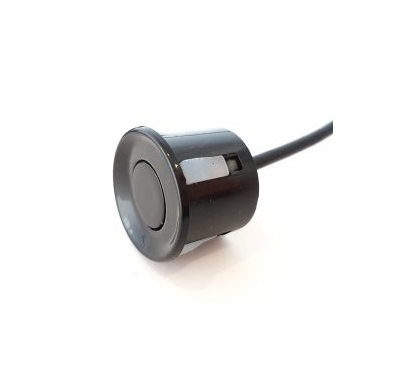

The JSN-SR04T-2.0 ultrasonic sensor utilizes a time-of-flight (ToF) principle, emitting 40 kHz sound pulses and measuring the echo return time to calculate distance. Its primary advantage is the physical separation of the sensing element and control electronics. The transducer is housed in a waterproof, sealed probe, allowing it to be placed directly in challenging environments while the control board remains in a protected location.
This design enhances durability for applications requiring sensing in moisture-prone areas. The module interfaces via a simple digital pulse protocol: a 10µs high pulse on the TRIG pin initiates a measurement cycle, and the ECHO pin outputs a high-level pulse whose duration is proportional to the measured distance. This standard interface ensures compatibility with a wide range of microcontrollers and single-board computers.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4.1 × 2.8 cm |
