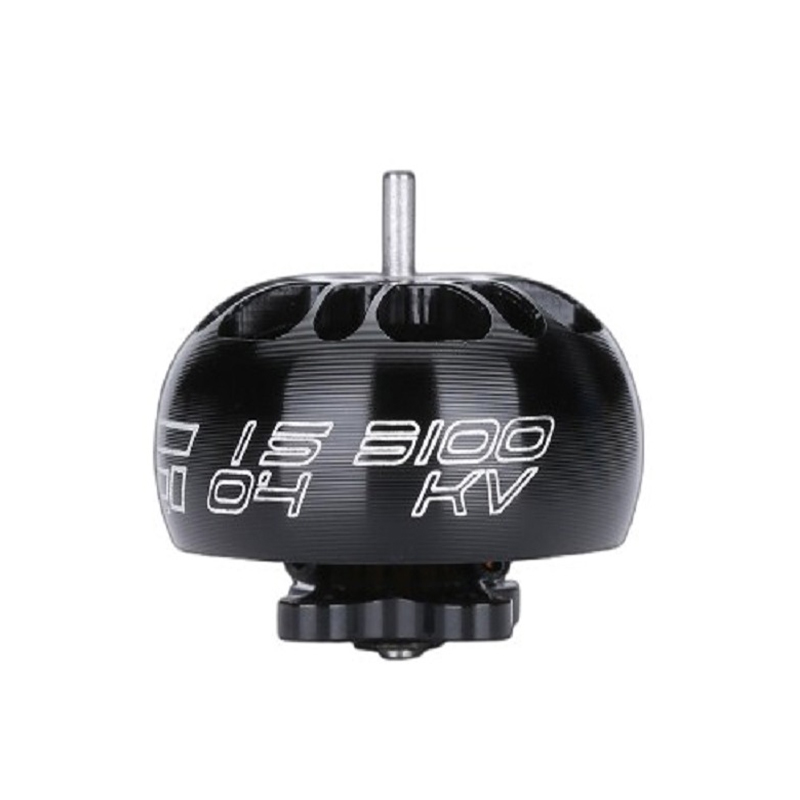

iFlight XING 1504 FPV Motor - 3100kv
The iFlight XING 1504 is a 3100KV brushless motor engineered for high-performance 3-4″ micro FPV drones, offering a powerful and efficient power-to-weight ratio for freestyle and cinematic flight.
Features
- 3100KV rating optimized for 3-4″ micro drone builds on 3S-4S LiPo.
- Ultra-lightweight 12.3g design with a compact 21.6mm diameter.
- High-torque N52H curved magnets and 9N12P configuration for smooth, responsive power.
- Durable unibell rotor and NSK bearings ensure crash resilience and longevity.
- 9x9mm M2 mounting pattern with a 1.5mm shaft for secure installation.
Out of stock
The XING 1504 motor from iFlight delivers robust performance in a micro form factor, engineered for pilots demanding agility and efficiency from their 3-4″ drones. Its 3100KV winding is tuned to provide a strong thrust-to-weight ratio on 3S and 4S battery configurations, enabling rapid acceleration and precise throttle control for freestyle maneuvers and smooth cinematic footage.
Constructed with a high-strength unibell rotor and premium NSK bearings, the motor is designed to withstand the impacts typical of aggressive FPV flight. The advanced N52H curved magnets and 9N12P stator configuration work in concert to minimize cogging torque and electrical noise, resulting in exceptionally smooth and vibration-free operation that protects sensitive flight controller and FPV camera components.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 4 × 3 × 3 cm |
