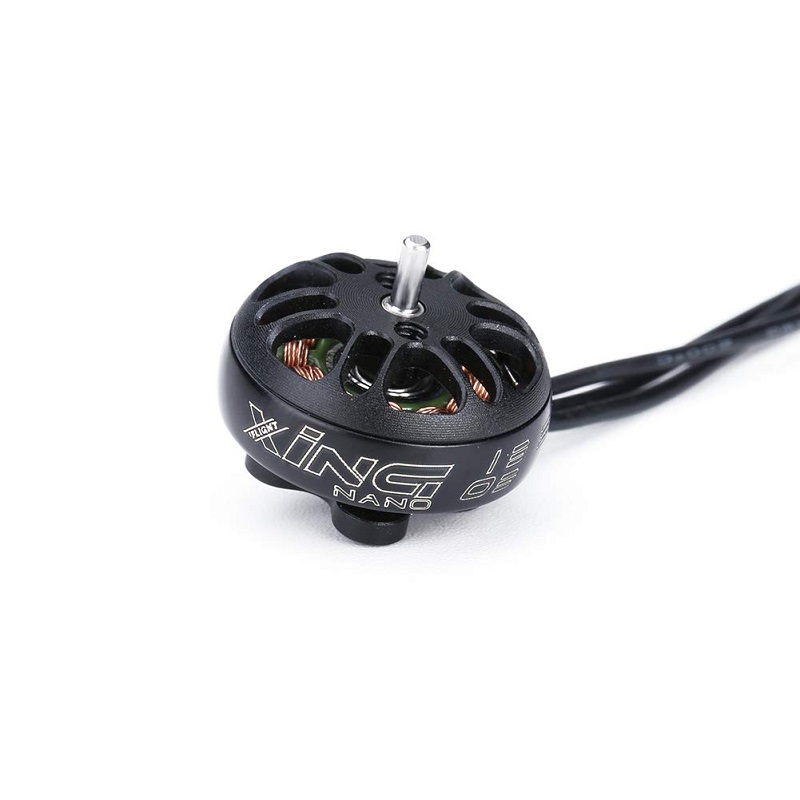

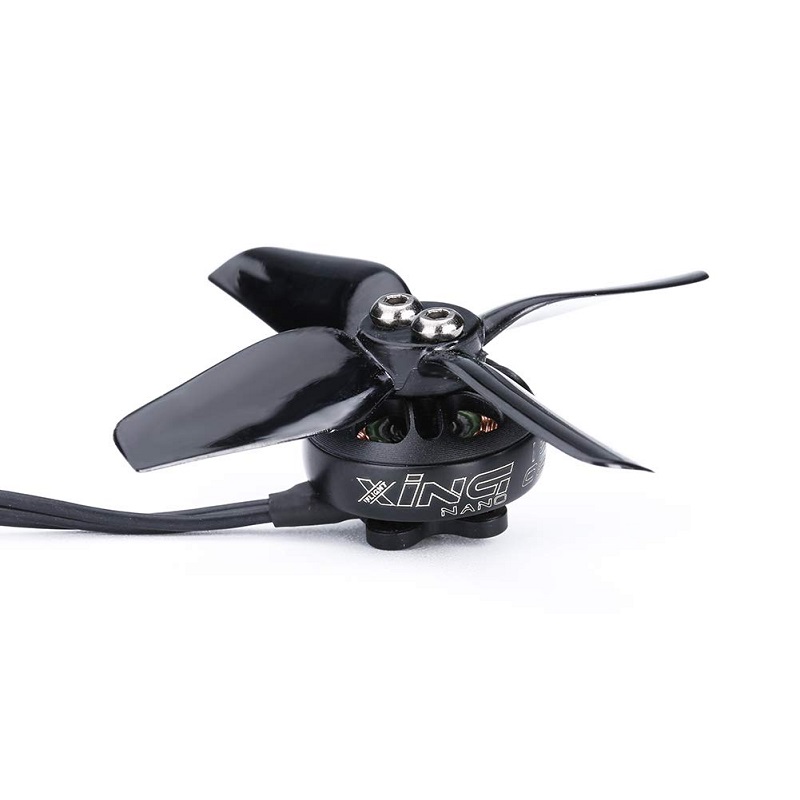

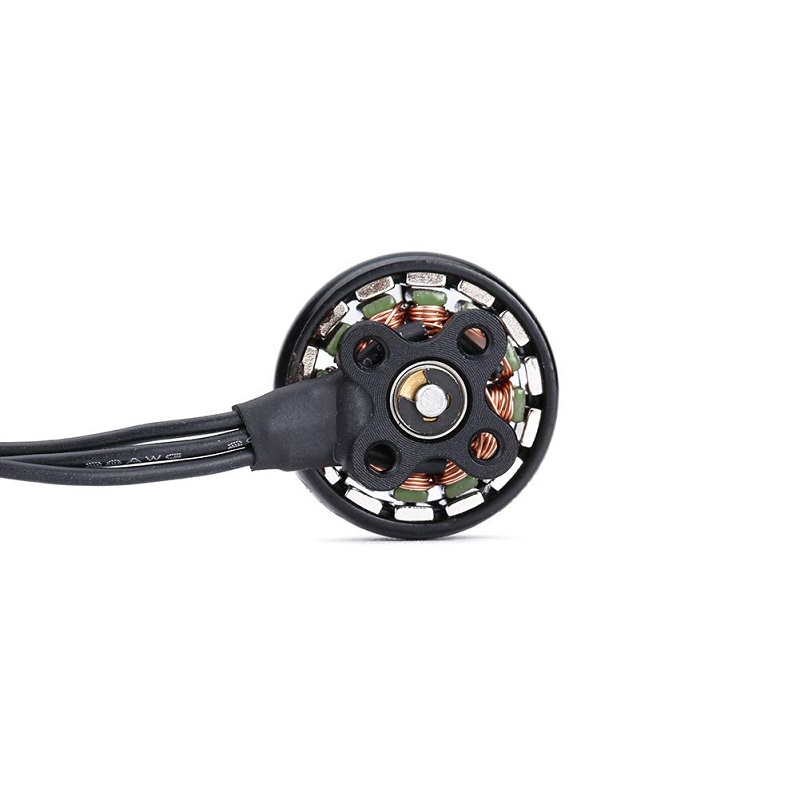

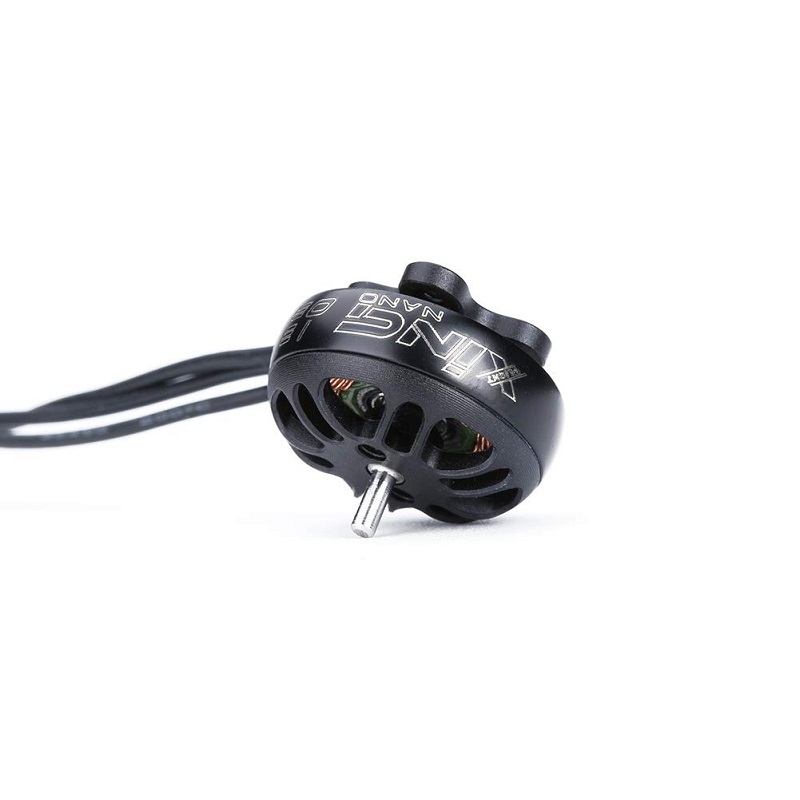

iFlight XING 1303 FPV Micro Motor - 5000KV
The iFlight XING 1303 is a 5000KV brushless micro motor engineered for ultralight 2-3″ FPV drones, offering a high power-to-weight ratio for responsive throttle control and smooth, efficient flight on 3-4S LiPo batteries.
Features
- 5000KV rating optimized for high-RPM performance on 2-3″ micro propellers.
- Ultra-lightweight 6.5g design with durable N52H curved magnets and NSK bearings.
- 9N12P configuration and single-strand copper winding for smooth, efficient power delivery.
- Compact 9x9mm M2 mounting pattern with a 1.5mm shaft diameter for easy integration.
- Rated for 3-4S LiPo input, handling peak currents up to 6.13A (98.1W).
Out of stock
The XING 1303 micro motor from iFlight is designed for builders seeking maximum performance in the smallest form factor. Its 5000KV wind provides the high rotational speed necessary for agile micro drone flight, while the segmented bell rotor and precision-balanced components ensure minimal vibration for stable video footage and precise control.
Constructed with high-grade materials, including N52H curved magnets and premium NSK bearings, the motor is built to withstand the rigors of FPV flying. The efficient 9N12P magnetic configuration and optimized single-strand copper winding minimize electrical losses, translating battery power directly into thrust for extended flight times on 3-4S packs.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 4 × 3 × 3 cm |
