ID-Innovations RFID Reader Module ID-3LA 125kHz Mini - Serial/Wiegand Output
ID-Innovations RFID Reader Module ID-3LA 125kHz Mini - Serial/Wiegand Output - Image 2
ID-Innovations RFID Reader Module ID-3LA 125kHz Mini - Serial/Wiegand Output - Image 3
SKU: SENS-2541
📋 GST Invoice Available

ID-Innovations RFID Reader Module ID-3LA 125kHz Mini - Serial/Wiegand Output

₹3,909.00 (Inclusive of all taxes)
Out of Stock

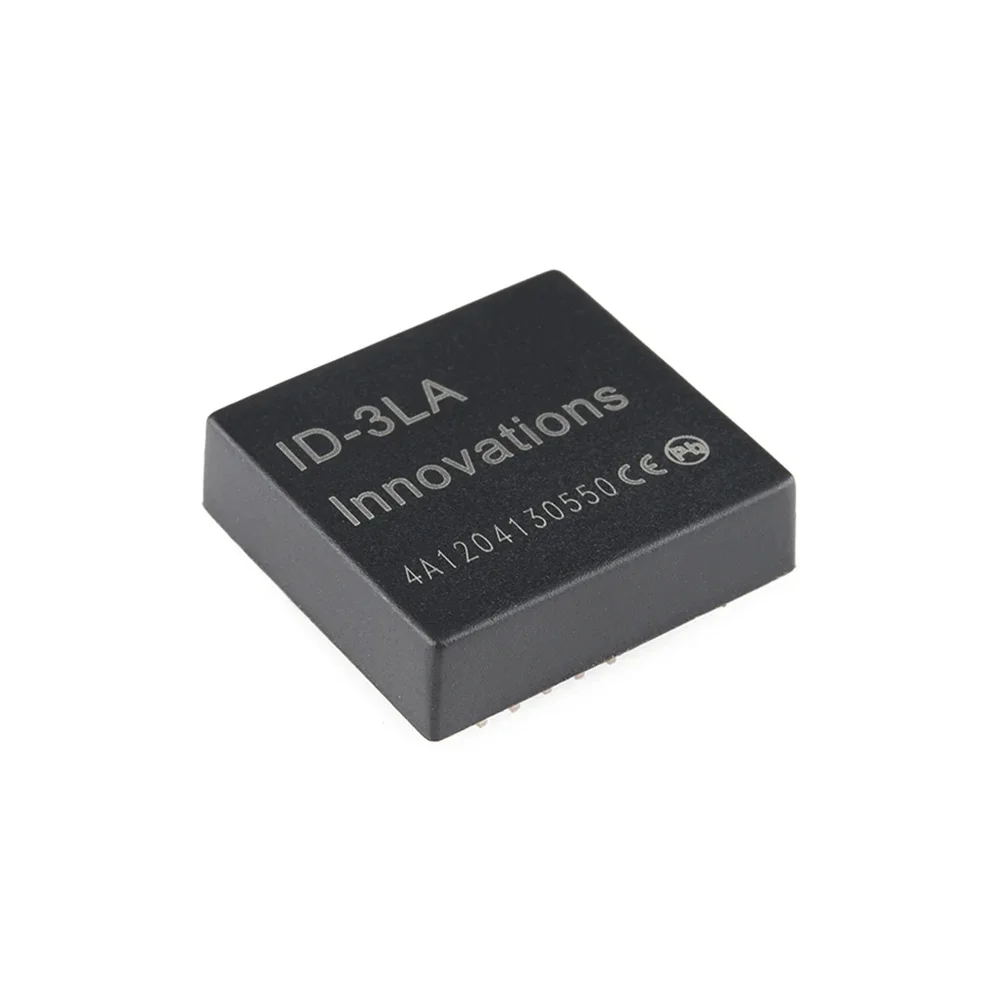

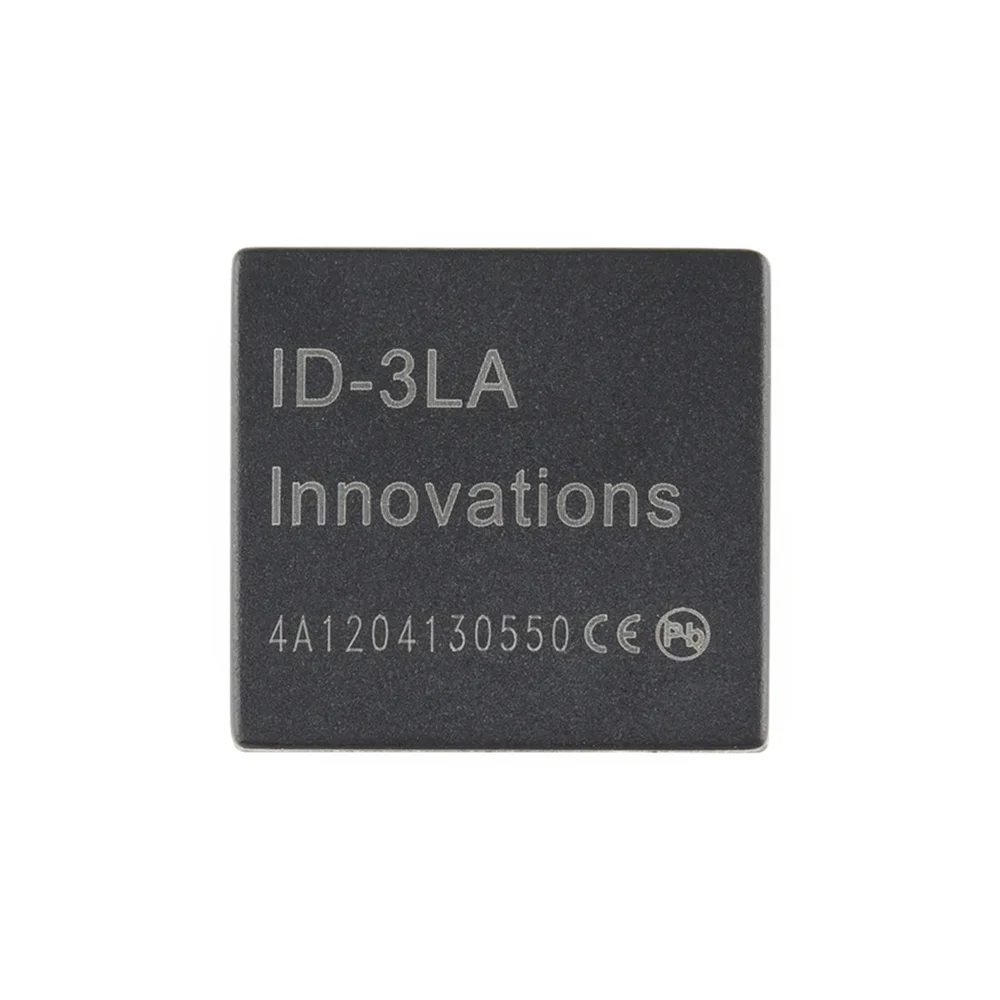

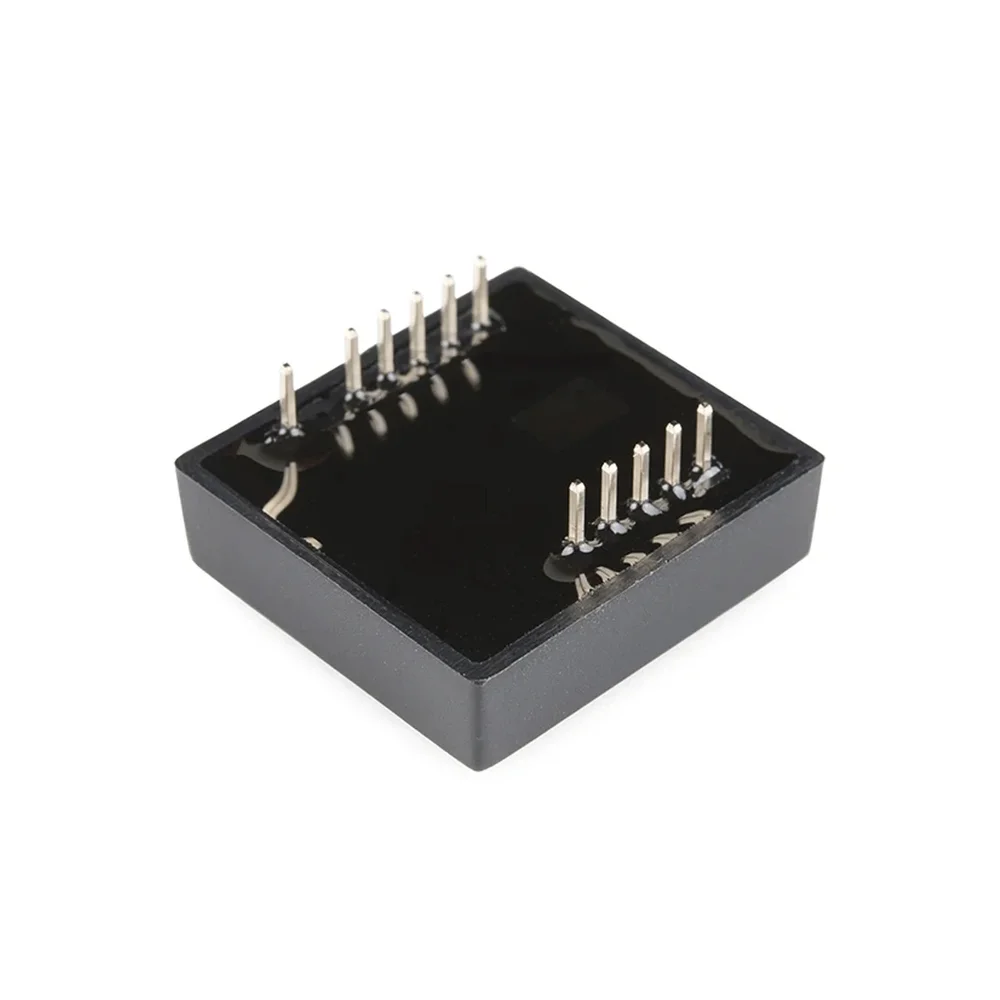

The ID-Innovations ID-3LA is a compact 125kHz RFID reader module compatible with EM4001 tags, offering a read range up to 30mm. It provides serial and Wiegand26 outputs for easy integration with microcontrollers (Arduino, Raspberry Pi, ESP32) and industrial PLCs, operating from a 2.8V to 5V DC supply.

Features

  • 125kHz RFID Reader Module for EM4001-Compatible Tags
  • Up to 30mm Read Range with External Antenna Support
  • Multi-Format Output: ASCII, Wiegand26, and ABA Track2
  • Wide Operating Voltage: 2.8V to 5V DC for 3.3V/5V Logic Systems
  • Compact Miniature Design: 22 x 20 x 10 mm

Out of stock

Description

The ID-3LA RFID Reader Module operates on the 125kHz Low Frequency (LF) band, utilizing an external antenna to inductively power and read compatible EM4001 transponder tags. Its built-in RF decoding engine handles Manchester 64-bit encoding, delivering a clean, processed serial data stream to reduce host microcontroller overhead.

Designed for low-power embedded systems and industrial automation, the module supports a wide 2.8V to 5V DC input range, making it suitable for battery-operated devices and 3.3V logic platforms. Its compact form factor and flexible antenna integration allow for optimized placement in access control, asset tracking, and embedded identification projects.

Key Features

  • 125kHz LF RFID Reader with Integrated RF Decoding Engine
  • Supports EM4001 and Compatible 64-bit Manchester Encoded Tags
  • Flexible Output Interfaces: TTL Serial (ASCII), Wiegand26, and Magnetic Stripe Emulation (ABA Track2)
  • Low Voltage Operation from 2.8V to 5V DC, Ideal for 3.3V Microcontrollers
  • External Antenna Connection Enables Custom Range and Form Factor Optimization
  • Compact and Lightweight PCB Module for Space-Constrained Designs
  • Compliant with CE, FCC, and ROHS Standards for Commercial Deployment

Applications

  • Embedded Access Control and Door Entry Systems
  • Asset Tracking and Inventory Management for Small Items
  • Embedded Device Authentication and Secure Boot Sequences
  • Time & Attendance Systems with RFID Badge Readers
  • Interactive Kiosks and Vending Machines with User Identification

Technical Specifications

Operating Frequency125kHz (nominal)
Compatible Tag FormatEM4001 or compatible
Read RangeUp to 30mm (with external antenna)
EncodingManchester 64-bit, modulus 64
Supply Voltage2.8VDC – 5VDC
RF I/O Output Current±200mA PK-PK
Data Output FormatsASCII, Wiegand26, ABA Track2
Dimensions (L x W x H)22 x 20 x 10 mm
Weight5 g

Frequently Asked Questions

What types of RFID tags are compatible with the ID-3LA module?

The ID-3LA reader is specifically designed for 125kHz Low Frequency (LF) tags that use the EM4001 protocol and 64-bit Manchester encoding. It is compatible with a wide range of EM4100-family transponders, including key fobs, cards, and glass tags that adhere to this standard.

How do I interface the ID-3LA module with an Arduino or Raspberry Pi?

You can interface the module via its TTL serial (ASCII) output by connecting the TX pin of the module to an RX pin on your microcontroller. For Wiegand26 output, connect the DATA0 and DATA1 lines to digital input pins. Ensure the module's power supply is within the 2.8V to 5V range, matching your system's logic level.

Does the module include an antenna, and what is the maximum read range?

No, the ID-3LA module requires an external 125kHz antenna coil to be connected to its RF I/O pins. The achievable read range, up to approximately 30mm, depends on the size, geometry, and tuning of this external antenna. Proper antenna design and matching are critical for optimal performance.

What is the difference between the ASCII, Wiegand26, and ABA Track2 output formats?

ASCII mode outputs the tag's ID as a plain text serial string. Wiegand26 is a common 26-bit binary format used in access control systems, comprising 24 data bits and 2 parity bits. ABA Track2 format emulates the data from a magnetic stripe card's second track, useful for legacy system integration.

Package Includes

  • 1 x ID-Innovations RFID Reader Module - ID-3LA, 125kHz (Mini)

Additional Information

Weight 0.005 kg
Dimensions 2.2 × 2 × 1 cm
