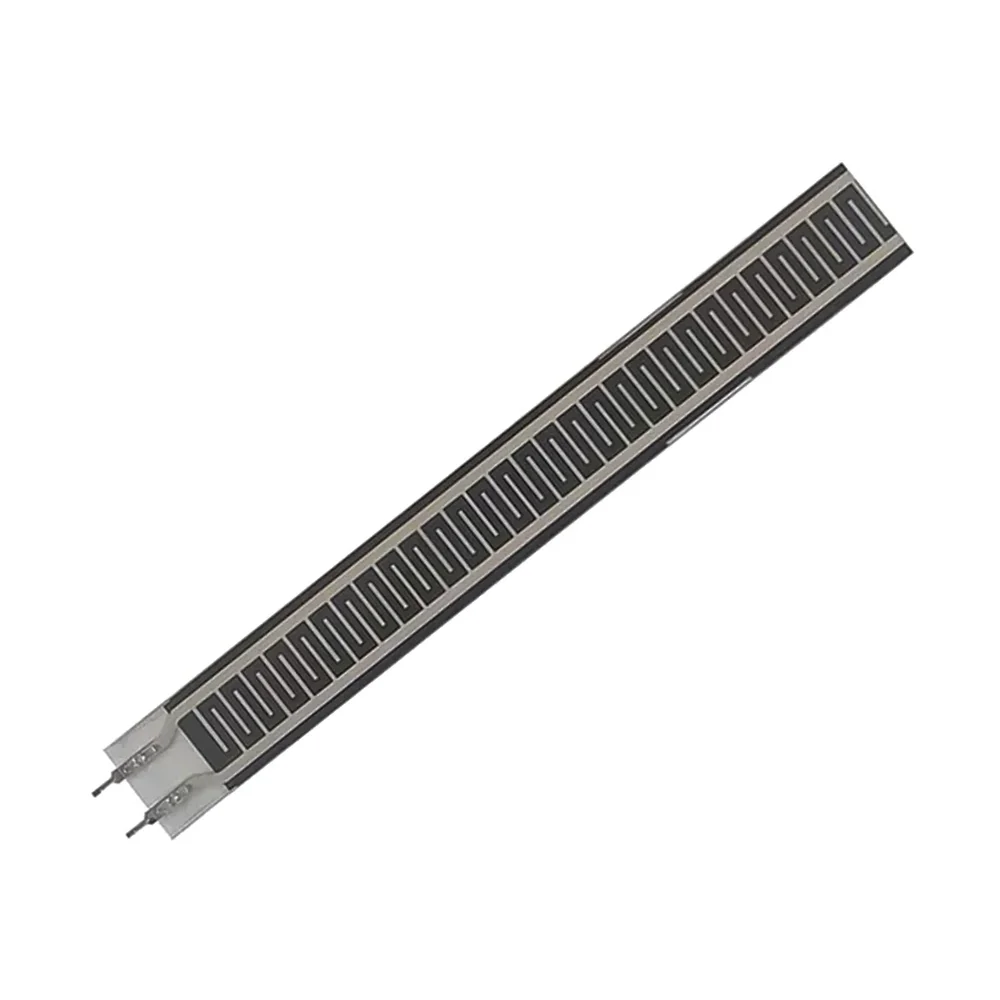

Generic RP-L-130 Force Sensitive Resistor (20g-10kg)
The RP-L-130 is a thin-film force-sensitive resistor (FSR) providing variable resistance proportional to applied force from 20g to 10kg, ideal for integration into Arduino, Raspberry Pi, and other microcontroller-based projects requiring tactile or pressure sensing.
Features
- Ultra-thin 0.4mm polymer thick film (PTF) construction for flexible integration.
- Wide force sensing range from a light 20g actuation up to 10kg maximum load.
- Variable resistance output, decreasing from >10MΩ (no load) as force is applied.
- Robust operating temperature range from -40°C to +85°C for diverse environments.
- Simple two-terminal interface for easy connection to voltage divider circuits.
Out of stock
The RP-L-130 Force Sensitive Resistor operates on the principle of piezoresistivity, where the electrical resistance of its conductive polymer film decreases predictably with an increase in applied mechanical force. This analog output characteristic makes it suitable for creating simple, cost-effective force-sensing interfaces.

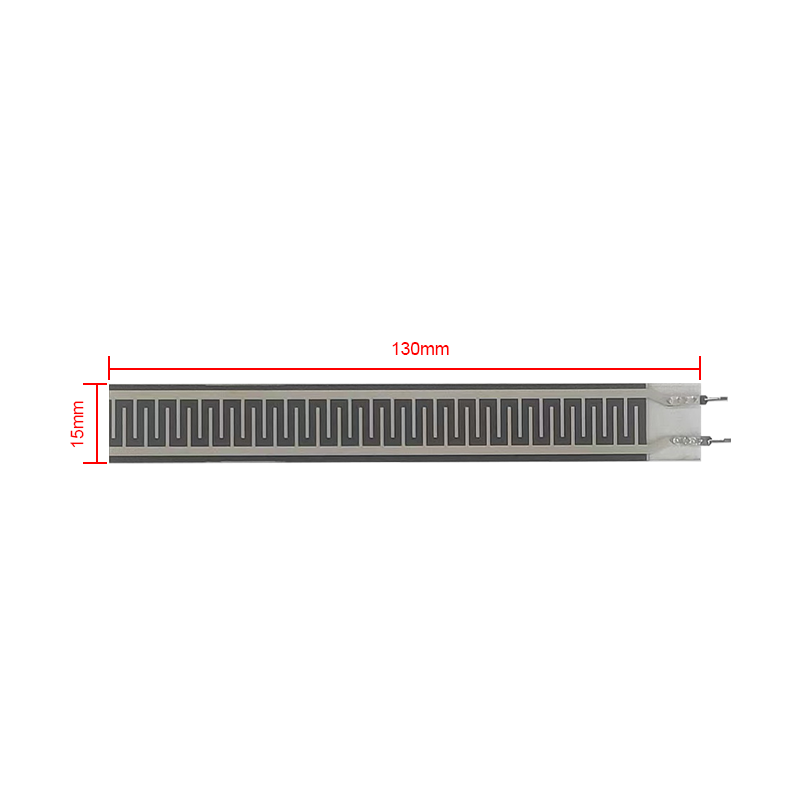

Designed with a minimal 0.4mm profile, this sensor can be embedded into tight spaces, wearable devices, or under surfaces without adding bulk. Its wide operating temperature ensures reliable performance in both industrial and consumer electronics applications, from control panels to robotic grippers.
