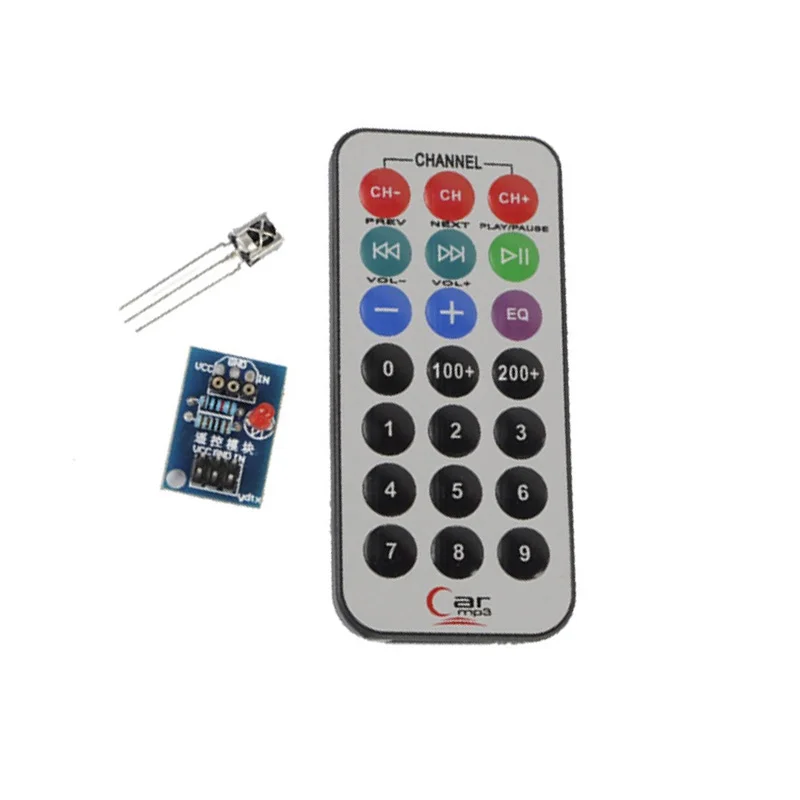

HX1838 VS1838 NEC Infrared IR Remote Control Sensor Module

Connect the module's VCC pin to Arduino's 5V pin, GND to GND, and the digital OUT pin to any digital input pin (e.g., D11). Use the popular IRremote library in the Arduino IDE. Include the library, define the receiver pin, and use `IrReceiver.decode()` to read NEC codes sent from the remote, printing results to the serial monitor for debugging your control logic.

The HX1838 module operates from 3.3V to 5V DC, making it compatible with both 5V boards like Arduino Uno and 3.3V systems like ESP32 or ESP8266. The dynamic current draw is low, between 3 to 5 milliamps. Ensure a stable power source; noise on the VCC line can cause erratic signal reception. A small decoupling capacitor (e.g., 100µF) near the module's power pins is recommended for optimal performance.

Yes, the kit is compatible with ESP32, ESP8266, and Raspberry Pi. For ESP boards, use the same IRremote library via the Arduino IDE or PlatformIO. For Raspberry Pi, use Python libraries like LIRC or GPIO Zero. Remember the receiver outputs a clean digital signal. On the Pi, connect the output to a GPIO pin configured as input, ensure common ground, and use 3.3V power to avoid damaging the Pi's sensitive inputs.

Effective range depends on line-of-sight and ambient light. Ensure no obstructions like glass, plastic, or fabric block the path. Strong ambient infrared light (sunlight, incandescent bulbs) can flood the receiver. Test in dimmer conditions. Check the remote's CR2025 battery voltage; a weak battery reduces output power. The receiver's 60° acceptance angle means you must aim relatively directly at the module's sensor window for reliable communication up to the rated 8 meters.
