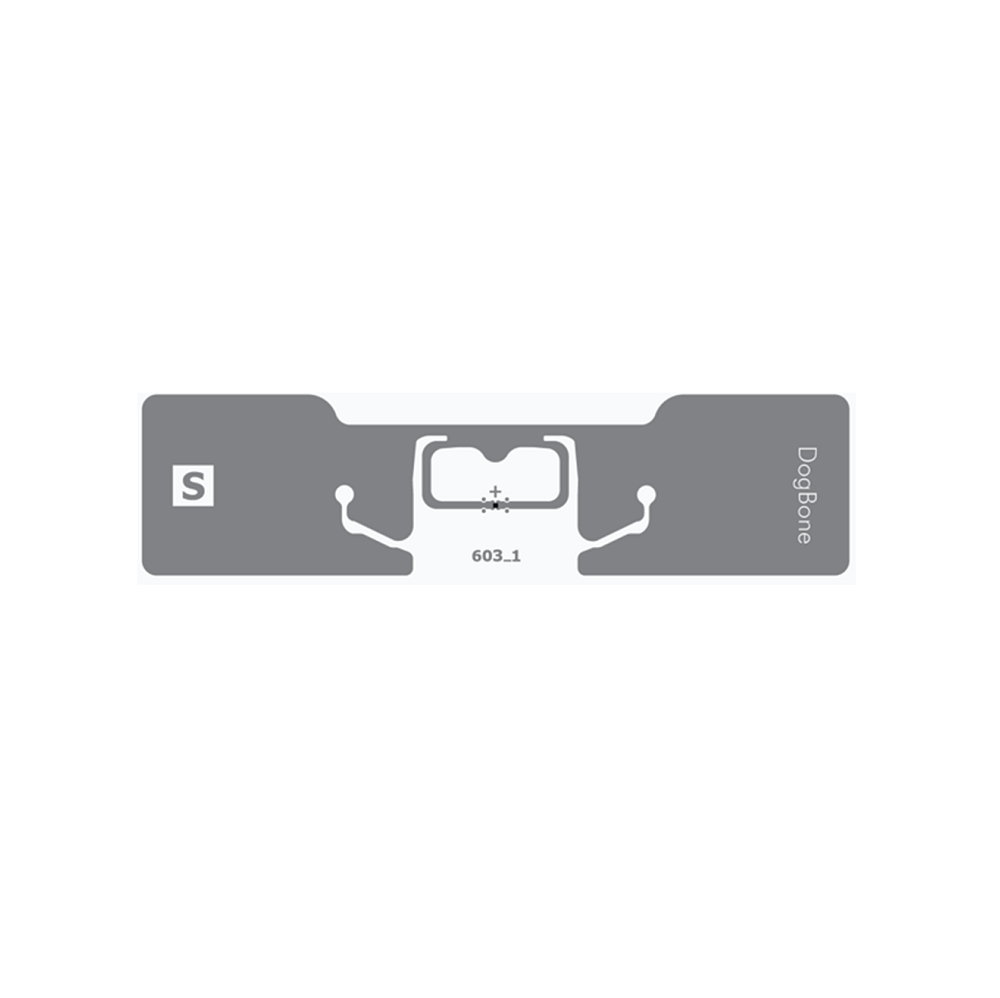

Huahao UHF RFID Sticker 97x27mm, White PET Sticker, Strong Adhesive - Impinj m750/AD Dogbone Chip

Name: Huahao UHF RFID Sticker 97x27mm, White PET Sticker, Strong Adhesive - Impinj m750/AD Dogbone Chip
Brand: Huahao
SKU: SENS-2512
Price: 58.00 INR
Availability: OutOfStock

₹58.00 (Inclusive of all taxes)

Out of Stock

This Huahao UHF RFID sticker features an Impinj m750/AD Dogbone® chip and operates on the global 860-960 MHz frequency band, offering a read distance of up to 20 meters. Its strong adhesive and white PET printable surface make it suitable for vehicle windshield and asset tagging applications.

Features

Impinj m750/AD Dogbone® chip with 96-bit EPC, 32-bit User, and 96-bit TID memory.
Global UHF frequency band (860-960 MHz) for worldwide compatibility.
Extended read range up to 20 meters, optimized for vehicle windshield mounting.
Strong permanent adhesive ensures secure attachment on non-metallic surfaces.
White PET material is printable with resin ribbons on RFID label printers.

Out of stock

Get Notified When Available

Description

This UHF RFID sticker is engineered for high-performance asset and vehicle identification. Utilizing the Impinj m750/AD Dogbone® chip, it provides reliable data storage and fast read/write operations across the global UHF spectrum. The antenna is precision-designed within a compact 94×24 mm footprint to maximize read distance, especially when applied to vehicle windshields.

Constructed from durable white PET, the tag’s surface is compatible with resin ribbon printing on industrial RFID label printers, allowing for custom branding or encoding directly on the adhesive side. The strong, permanent adhesive backing is formulated for long-term adhesion on glass and other non-metallic surfaces, though it is not suitable for direct application on metal. With an operating temperature range of -40°C to +85°C, it is built for use in demanding indoor and outdoor environments.

Key Features

High-Performance RFID Chip: Features the reliable Impinj m750/AD Dogbone® IC with ample memory for unique identification and user data.
Optimized Antenna Design: Compact 94x24 mm antenna layout maximizes read range and performance on dielectric surfaces like glass.
Broad Operational Temperature: Rated for continuous use from -40°C to +85°C, ensuring reliability in harsh climatic conditions.
Industrial-Grade Printable Surface: White PET material accepts high-resolution resin ribbon printing for permanent barcodes, text, or logos.
Application-Specific Adhesive: Strong permanent adhesive is engineered for secure, long-term bonding to vehicle windshields and similar substrates.
Global Regulatory Compliance: Operates across the 860-960 MHz UHF band, supporting regional frequency hopping protocols (FCC, ETSI).

Applications

Vehicle access control and parking management via windshield tagging.
Asset tracking and inventory management for logistics and warehousing.
Electronic toll collection (ETC) system integration.
Retail inventory control and anti-theft systems.
Library book and document tracking.

Technical Specifications

Model / Name	UHF RFID Sticker
Chip Model	Impinj m750/AD Dogbone®
Operating Frequency	860 - 960 MHz
Memory Configuration	EPC: 96-bit, User: 32-bit, TID: 96-bit
Antenna Size	94 mm x 24 mm
Overall Die-Cut Size	100 mm x 30 mm
Read Distance	Up to 20 meters (on vehicle windshield)
Operating Temperature	-40°C to +85°C
Material	White PET (Printable with resin ribbons)
Adhesive Type	Strong Permanent Adhesive
Surface Compatibility	Non-Metallic (e.g., Glass, Plastic)

Frequently Asked Questions

What surfaces is this RFID sticker suitable for?

This sticker is designed with strong adhesive for non-metallic surfaces like vehicle windshields, glass, plastic, and cardboard. It is not recommended for direct application on metal surfaces, as metal can detune the antenna and severely reduce read performance. For metal asset tagging, consider a specialized on-metal RFID tag.

Can I print directly on this RFID sticker?

Yes, the white PET surface is printable using resin ribbons on industrial RFID label printers (e.g., Zebra, SATO). You can print barcodes, text, or logos. Printing is also possible on the adhesive side. Do not use standard inkjet or laser printers, as they may damage the tag or provide poor adhesion.

What is the typical read range of this tag?

Under optimal conditions with a suitable UHF RFID reader and antenna, read distances of up to 20 meters are achievable, particularly when the tag is applied to a vehicle windshield. Actual range depends on reader power, antenna configuration, and the local RF environment. Performance is maximized on large, flat dielectric surfaces.

What memory banks are available on the Impinj m750 chip?

The Impinj m750 chip includes three main memory banks: a 96-bit TID (Tag Identifier) that is factory-locked and unique, a 96-bit EPC (Electronic Product Code) memory for your item identification data, and a 32-bit User memory for custom application data. All banks are readable and the EPC/User memory is writable via standard UHF RFID commands.
