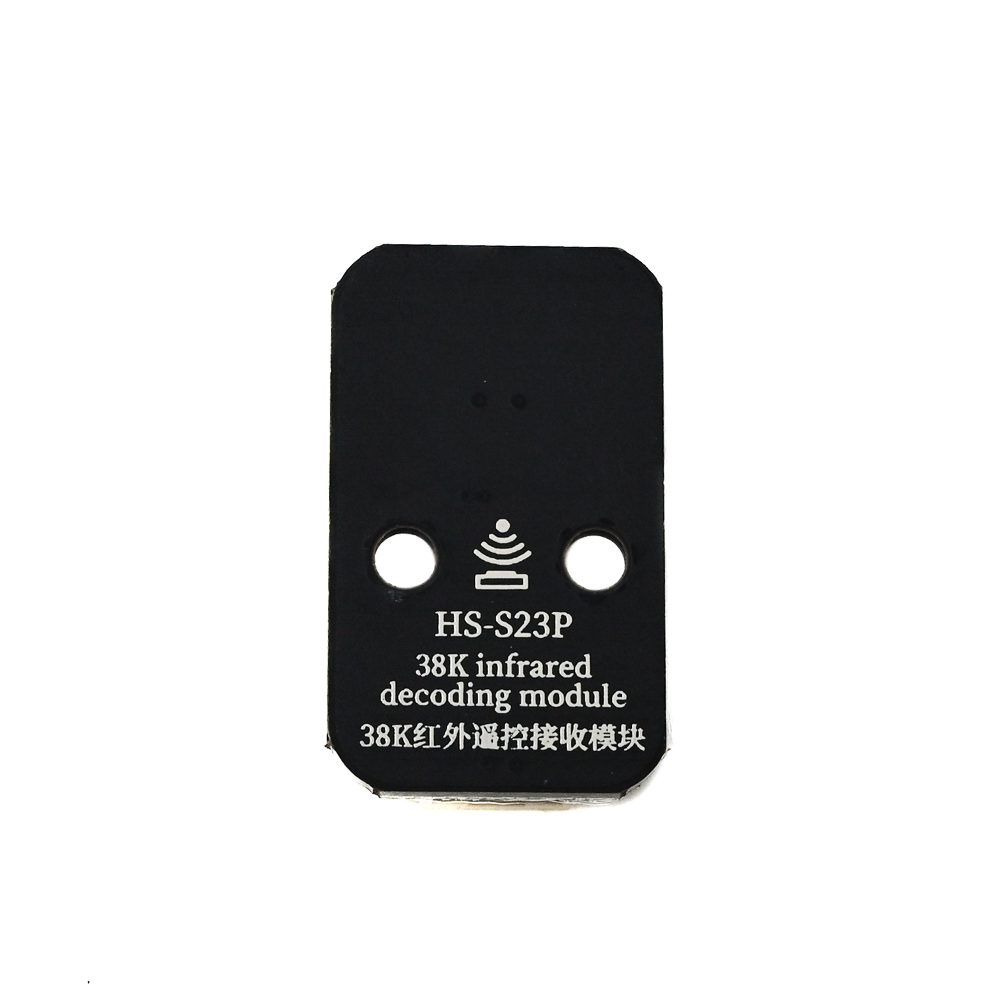

HS-S23P 38KHz Infrared Decoding Receiver Module - Digital Output
The HS-S23P is a 38KHz infrared decoding receiver module designed for receiving and demodulating IR signals from standard remote controls. It provides a clean digital output signal compatible with 3.3V and 5V microcontrollers like Arduino, ESP32, and Raspberry Pi for remote control integration.
Features
- 38 kHz Carrier Frequency for standard IR remote compatibility.
- Digital active-low output for direct microcontroller interfacing.
- Wide operating voltage range from 2.5V to 5.5V.
- High immunity to ambient light interference.
- Compact PCB design with 2.54mm pin header interface.
Out of stock

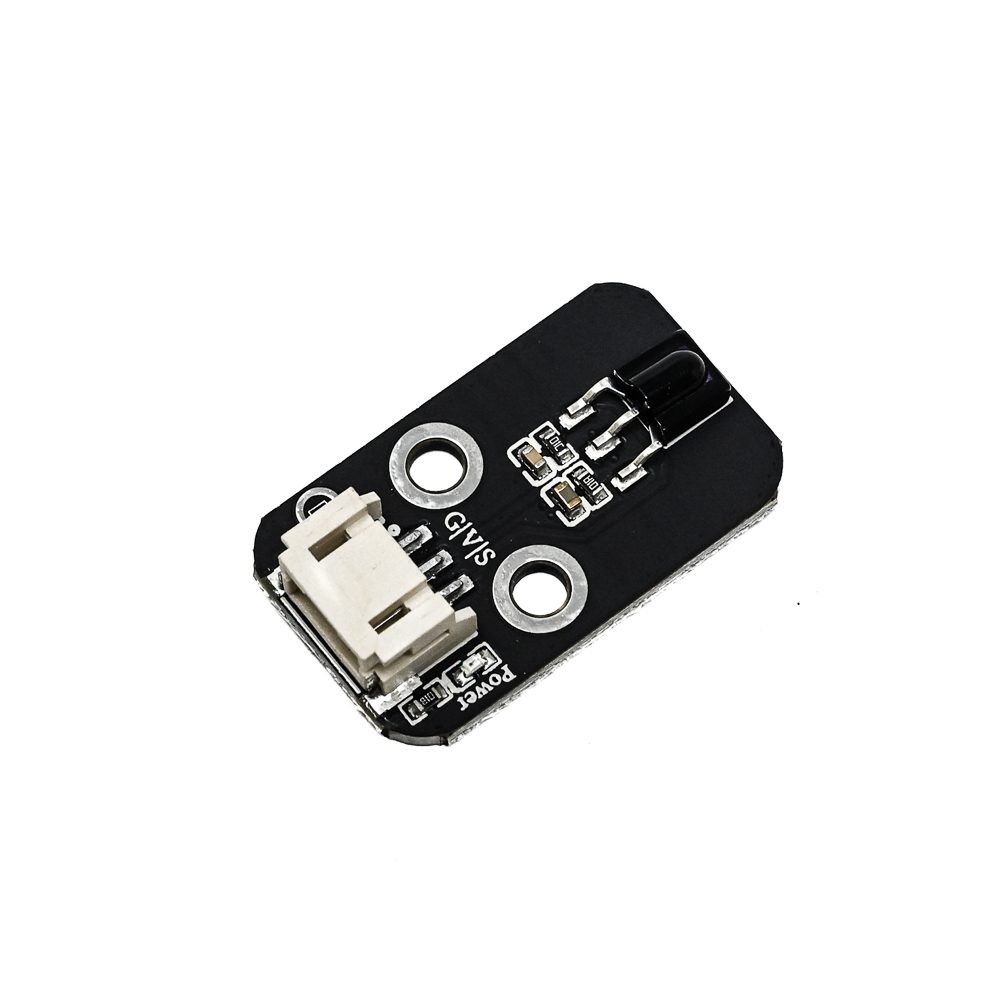

The HS-S23P infrared decoding module integrates a photodiode and a preamplifier tuned to the 38 kHz carrier frequency commonly used in consumer IR remote controls. It demodulates the incoming signal, providing a clean, active-low digital output that directly interfaces with microcontroller GPIO pins, eliminating the need for external signal conditioning.
Engineered for reliable performance, the module features internal filtering to reject interference from ambient light sources and operates efficiently across a wide voltage range, making it suitable for both 3.3V and 5V logic systems. Its compact form factor and standardized pin spacing facilitate easy integration into prototypes and embedded systems.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 3.6 × 3.1 cm |
