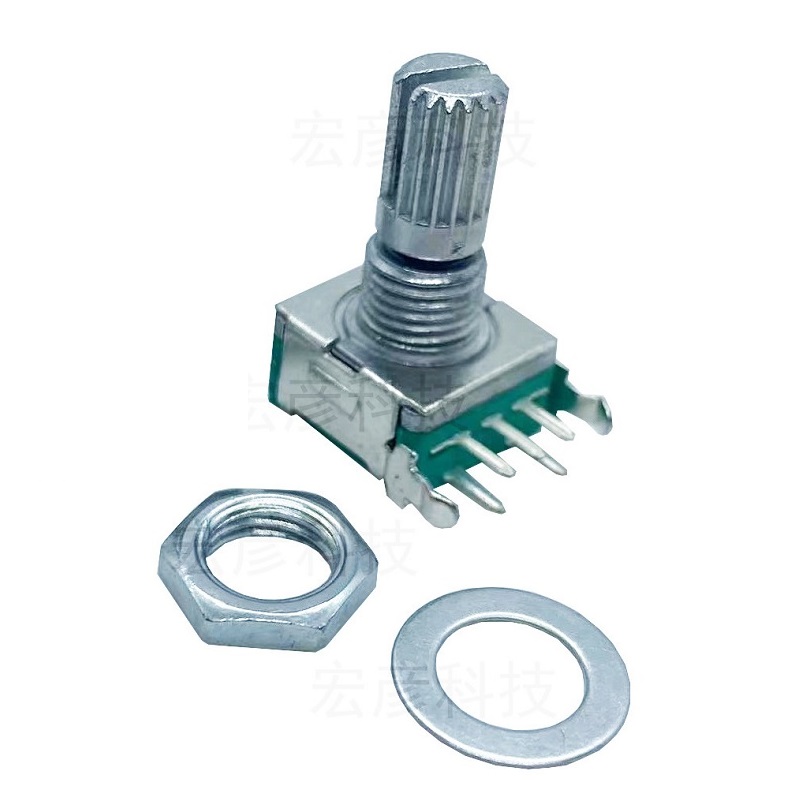

Hongyan Technology EC11J 5DM20P1ZY15F7 Horizontal Rotary Encoder with Switch - 15mm Shaft
The Hongyan Technology EC11J 5DM20P1ZY15F7 is a horizontal incremental rotary encoder with integrated push-button switch, featuring a 15mm shaft for precise rotational control and menu navigation in embedded systems, industrial controls, and consumer electronics. It operates on a 5V DC supply and provides tactile detent feedback for reliable user input.
Features
- Horizontal incremental encoder with integrated push-button switch for dual-function control.
- 15mm shaft length and compact 12 x 11.7mm body for space-constrained panel designs.
- 5V DC operating voltage compatible with standard microcontroller logic levels (Arduino, Raspberry Pi, STM32).
- Provides tactile detent feedback for precise rotational adjustment and user confirmation.
- Robust construction rated for an operating temperature range of -30°C to +80°C.
Out of stock
The Hongyan Technology EC11J 5DM20P1ZY15F7 is a horizontal-mount rotary encoder module combining rotational sensing with a momentary push-button switch. Its incremental quadrature output allows for the detection of direction and speed of rotation, while the integrated switch provides a secondary input for menu selection or mode changes. The 15mm shaft is designed for direct coupling with knobs.
Engineered for durability, the encoder’s internal mechanical design ensures reliable performance across an extended temperature range from -30°C to +80°C, making it suitable for both consumer and light industrial environments. Its compact footprint facilitates integration into control panels, audio equipment, instrumentation, and DIY electronics projects requiring precise parameter adjustment.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.17 × 1.2 cm |
