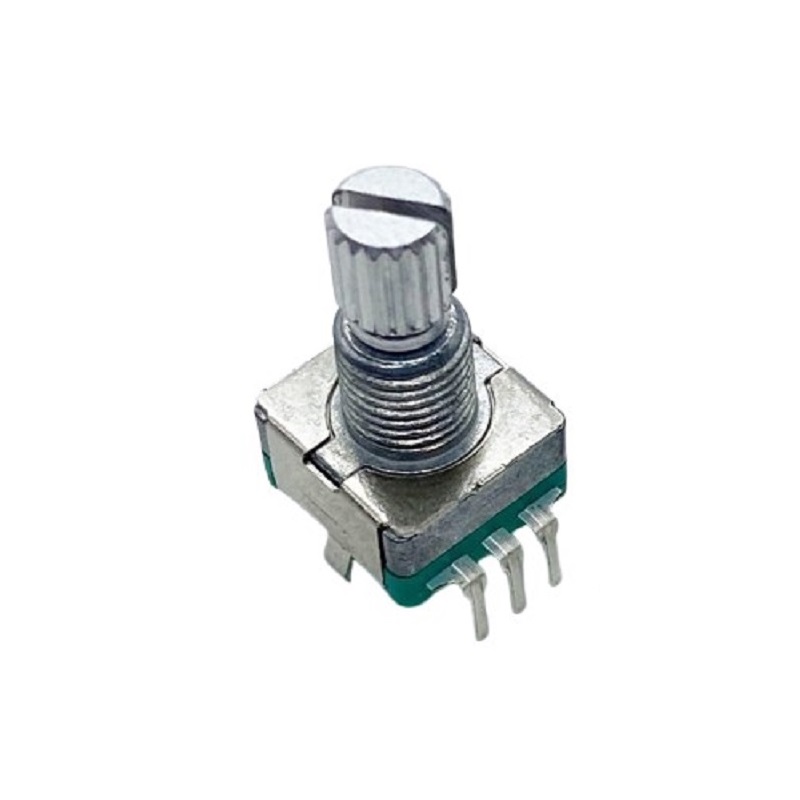

Hongyan Technology EC11H 7CE15P1ZY15F7 Vertical Rotary Encoder with Switch - 5-Pin Plug-in
The Hongyan Technology EC11H 7CE15P1ZY15F7 is a compact, vertical-mount rotary encoder with an integrated pushbutton switch, delivering precise incremental position feedback and tactile selection. Its 5-pin plug-in design and 6.5mm base diameter facilitate easy integration into control panels, DIY electronics, and embedded systems requiring reliable user input.
Features
- Combined rotary encoder with integrated pushbutton switch for dual-function control.
- Vertical plug-in 5-pin design with a compact 6.5mm base for space-efficient PCB mounting.
- Provides 15 or 20 pulses per 360° rotation for precise incremental position feedback.
- Durable mechanical construction ensures stable performance and long operational life.
- Ideal for volume knobs, menu navigation, and parameter adjustment in user interfaces.
Out of stock
The Hongyan Technology EC11H series encoder utilizes a mechanical contact-based design to generate quadrature output signals (A and B phases) with each detent step, allowing microcontrollers to determine both direction and magnitude of rotation. The integrated pushbutton switch provides a separate digital input for selection or mode changes.
Built for frequent manual operation, this encoder offers a smooth tactile feel with clear detents. Its vertical PCB-mount form factor and standard pin spacing make it compatible with a wide range of prototyping boards and commercial electronic assemblies, from audio equipment to industrial control panels.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 × 4 cm |
