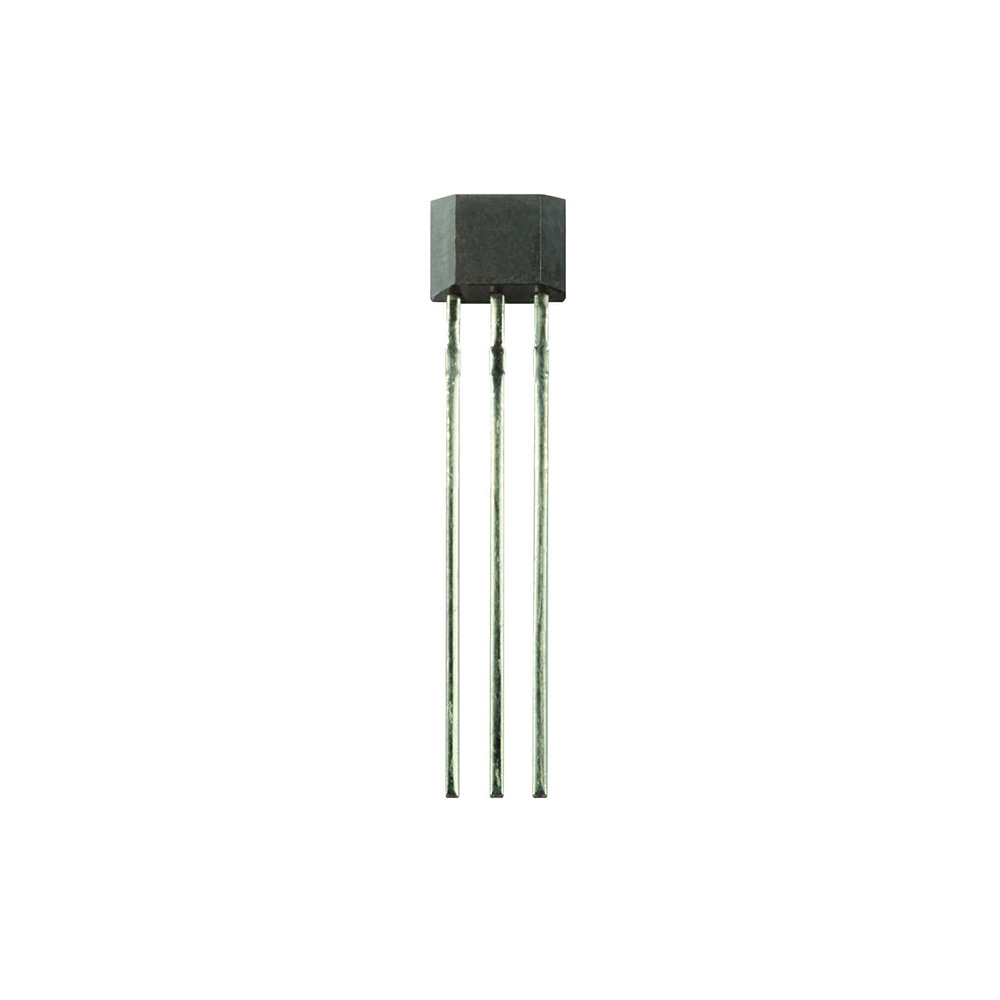

Honeywell SS496B Ratiometric Linear Hall Effect Sensor, TO-92 Package, 4.5-10.5Vdc, -840 to +840 G
The Honeywell SS496B is a ratiometric linear Hall effect sensor in a TO-92 package, designed for precise magnetic field measurement from -840 to +840 Gauss. It operates from 4.5 to 10.5V DC and provides a linear analog output, making it compatible with microcontrollers like Arduino and industrial ADCs for position and current sensing applications.
Features
- Ratiometric linear output proportional to magnetic flux density (±840 G range)
- Wide operating voltage range: 4.5V to 10.5V DC with low 7mA current consumption
- Quad-Hall IC design minimizes errors from package stress and temperature drift
- Stable performance across an extended industrial temperature range: -40°C to +150°C
- Rail-to-rail output swing for maximum signal resolution and accuracy
Out of stock
The SS496B utilizes a ratiometric, temperature-compensated quad-Hall element design. Its output voltage is linearly proportional to the applied magnetic field strength, providing high accuracy for displacement and current sensing. The sensor’s performance is stabilized against mechanical package stress and wide temperature fluctuations.
Engineered for reliability in harsh environments, it features a single current sinking or sourcing output. The rail-to-rail operation ensures the full analog output range is usable, enhancing measurement resolution when interfaced with data acquisition systems or microcontroller ADCs.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 8 × 6 × 3 cm |
