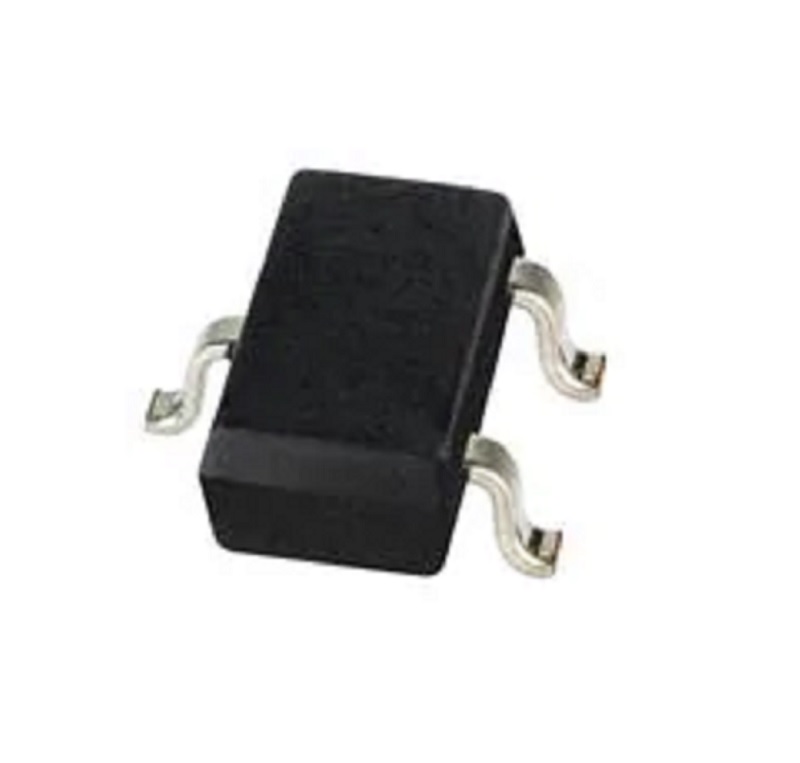

Honeywell SL353HT Omnipolar Hall Effect Magnetic Sensor - SOT-23-3 SMD
The Honeywell SL353HT is a compact, omnipolar digital Hall-effect sensor IC in an SOT-23-3 SMD package, designed for low-voltage (3V) applications. It provides a digital output triggered by either north or south magnetic poles, making it ideal for integration into automated assemblies, motion control systems, and portable electronics.
Features
- Omnipolar magnetic sensing activated by either north or south pole.
- Low operating voltage capability (3 Vdc) for energy-efficient designs.
- Wide operating temperature range from -40°C to +85°C.
- Compact SOT-23-3 surface-mount (SMD) package for automated placement.
- Digital output with a maximum sink current of 5 mA.
Out of stock
The SL353HT is a versatile, board-mount digital Hall-effect sensor from Honeywell. It operates on the principle of the Hall effect, where a voltage difference is generated across a conductor when exposed to a magnetic field. This IC converts that analog phenomenon into a clean digital output signal, simplifying interface with microcontrollers and logic circuits. Its omnipolar design means it responds to magnetic fields of either polarity, increasing application flexibility.
Engineered for stability, the device maintains consistent performance across a broad temperature range from -40°C to +85°C. The integrated circuitry provides a robust digital output capable of sinking up to 5 mA, suitable for directly driving LEDs or interfacing with other low-power logic inputs. The SOT-23-3 package is optimized for high-volume, automated PCB assembly processes.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
