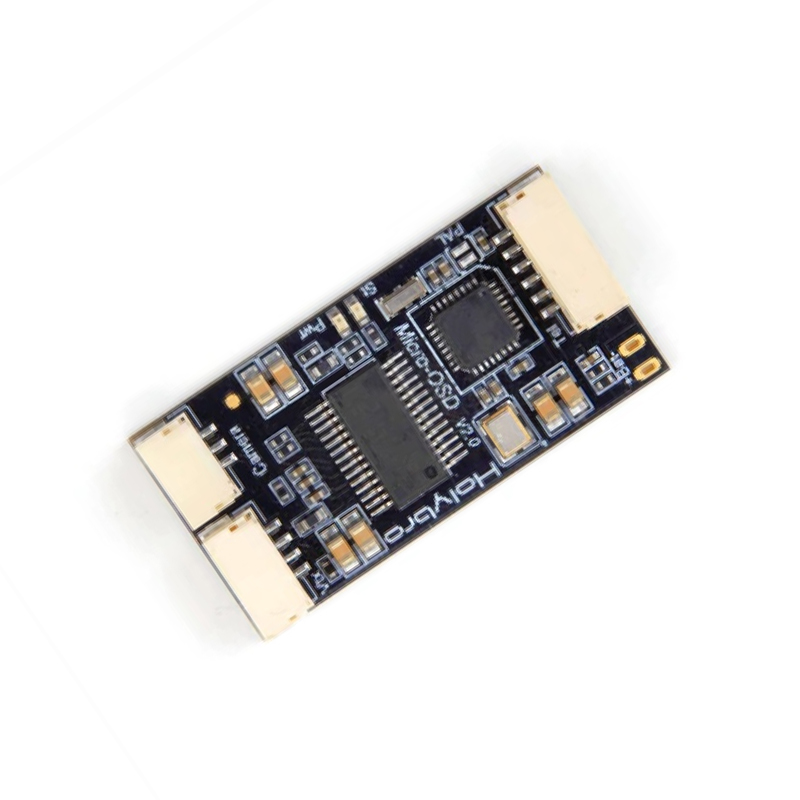

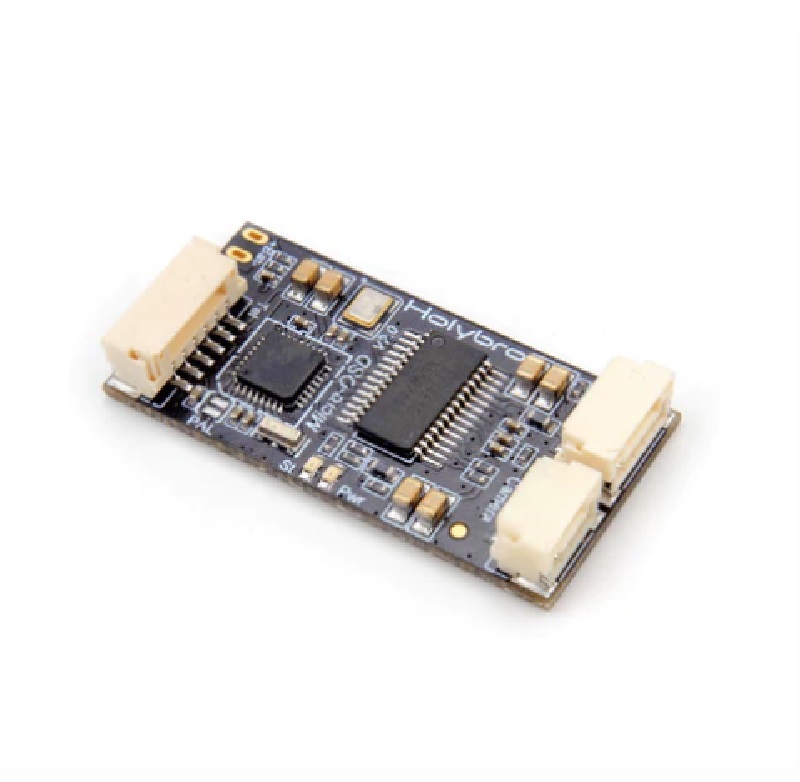

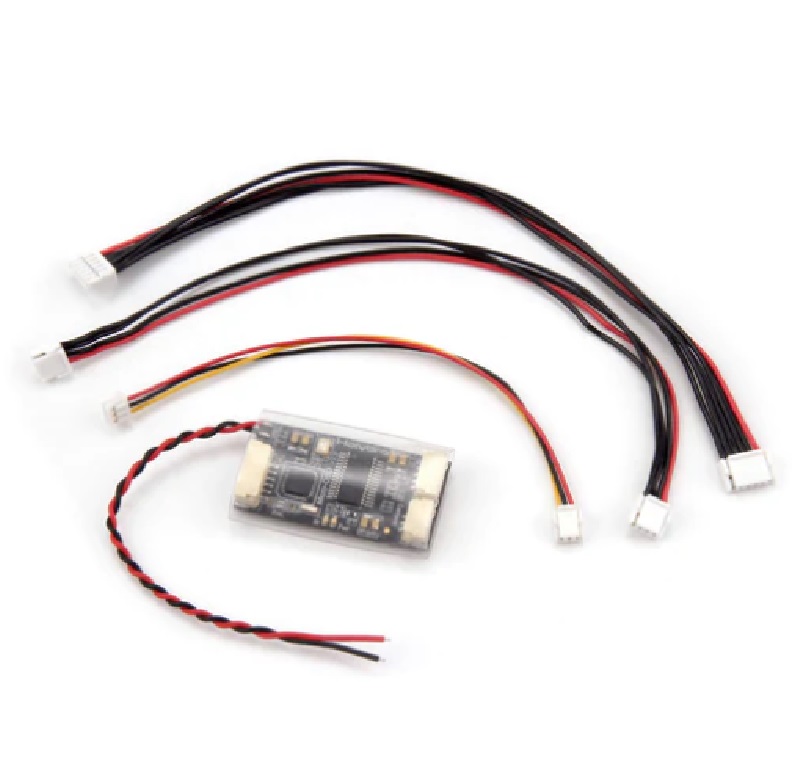

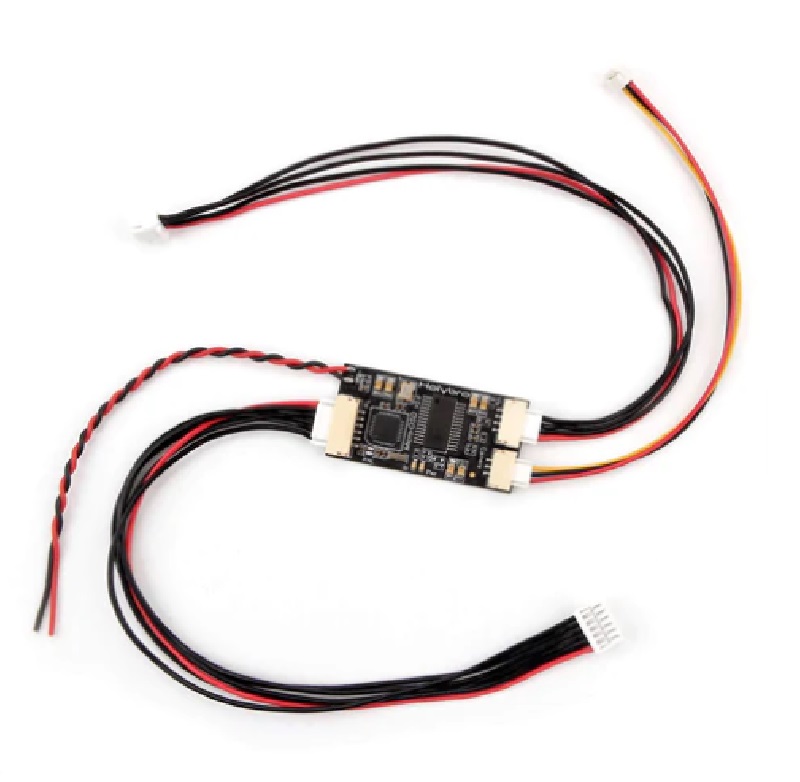

Holybro Micro OSD V2 - Standard Set
The Holybro Micro OSD V2 is a compact on-screen display module designed for integration with Pixhawk-series flight controllers, providing real-time overlay of critical flight data such as battery voltage, altitude, and flight mode onto your FPV video feed.
Features
- ATmega328P processor with Arduino bootloader for easy configuration.
- MAX7456 monochrome OSD chip supporting both PAL and NTSC video standards.
- Plug-and-play compatibility with Holybro Pixhawk 4 and Durandal flight controllers.
- Standard 6-pin ISP header and solder Jumper for video system selection.
- Compact footprint of 17.5x35mm and lightweight design for minimal space impact.
Out of stock
The Holybro Micro OSD V2 serves as a dedicated, real-time telemetry overlay system for FPV and autonomous drone platforms. It connects directly to the telemetry port of compatible flight controllers, parsing data streams to generate a clean, customizable on-screen display. This allows pilots to monitor vital parameters without looking away from their video feed, enhancing situational awareness during manual flight and simplifying data verification for autonomous missions.

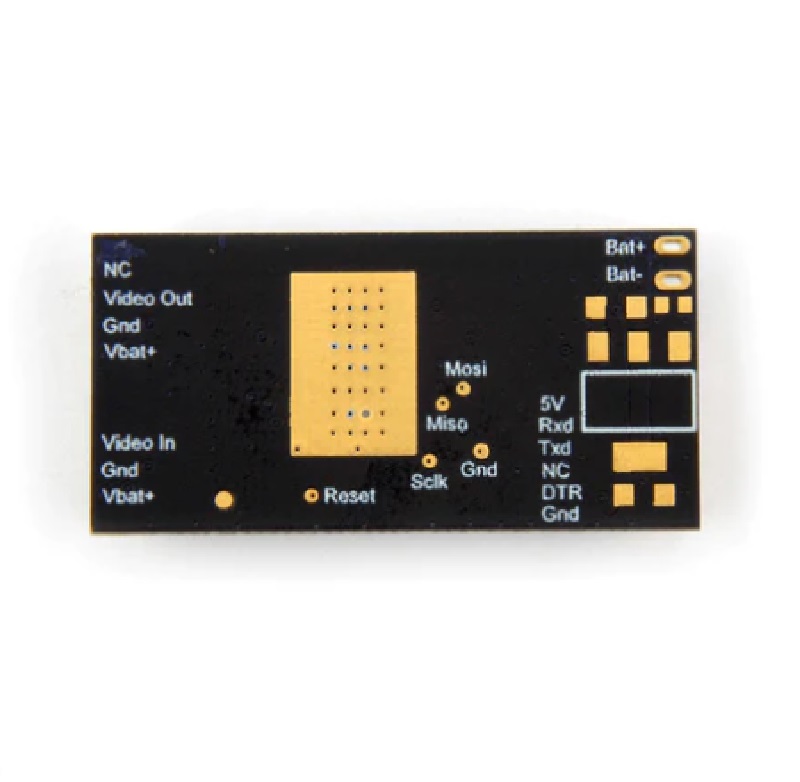

Engineered for reliability, the module features a robust MAX7456 OSD generator known for its stable sync handling and crisp character rendering. The inclusion of exposed test points for HSYNC and LOS signals aids in advanced troubleshooting and integration. Its pre-configured setup offers immediate functionality, while the accessible ATmega328P processor allows for deep customization of display layout and data sources via standard FTDI programmers, making it a versatile tool for both casual FPV pilots and advanced ArduPilot/ PX4 users.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 3.5 × 1.75 cm |
