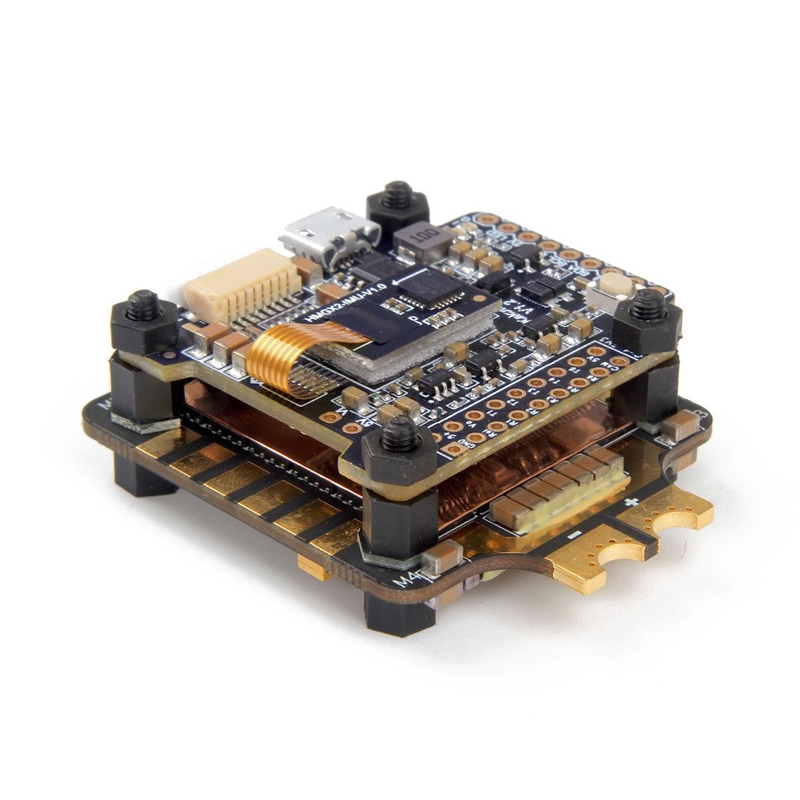

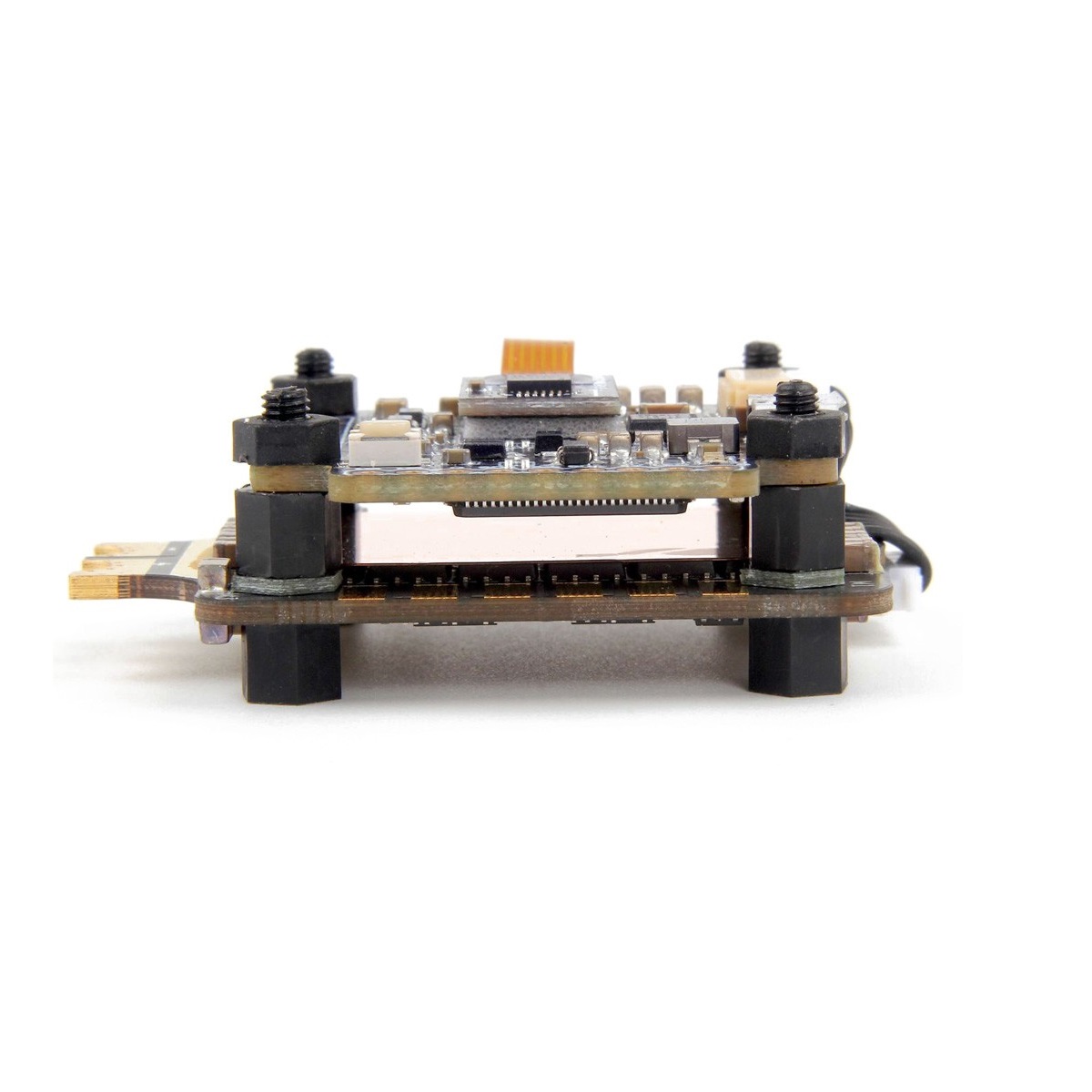

Holybro Kakute F7 & Tekko32 BLHeli32 4-in-1 ESC Stack
The Holybro Kakute F7 & Tekko32 4-in-1 ESC stack is a high-performance, integrated flight control solution for 3-6S FPV racing and freestyle drones. It combines a 32-bit STM32F745 flight controller with a 35A BLHeli32 4-in-1 ESC, supporting Betaflight, Butterflight, and Cleanflight firmware for a streamlined build.
Features
- Integrated Kakute F7 FC with STM32F745 MCU and SPI ICM20689 gyro for high-speed, low-noise flight processing.
- Tekko32 4-in-1 ESC delivers 35A continuous (50A burst) per motor with native BLHeli32 firmware and ESC telemetry.
- Supports 3-6S LiPo input (7-42V) with a robust 2oz copper PCB rated for up to 120A continuous current.
- Features Betaflight OSD, built-in soft-mounting, BMP280 barometer, and BLHeli pass-through for easy configuration.
- Includes six hardware UARTs, TF card logging, and filtered 5V/2A & 3.3V/200mA BEC outputs for peripherals.
Out of stock
The Holybro Kakute F7 & Tekko32 stack merges a premium flight controller and electronic speed controller into a single, cohesive unit designed for competitive FPV builds. The Kakute F7 flight controller is built around an STM32F745 32-bit processor and an SPI-connected ICM20689 IMU, enabling gyro sampling rates up to 32 kHz. Its design incorporates vibration-damping foam directly under the IMU, eliminating the need for external soft-mounting and ensuring clean flight data in high-vibration environments.
The paired Tekko32 4-in-1 ESC utilizes BLHeli32 firmware to deliver precise, responsive motor control with support for DShot1200, OneShot, and active braking (damped light). Enhanced capacitor filtering minimizes electrical noise for cleaner video transmission. The stack’s unified 30.5×30.5mm mounting pattern and direct solder pad interface simplify wiring, creating a clean and reliable power distribution system for complex multirotor setups.
Additional Information
| Weight | 0.056 kg |
|---|---|
| Dimensions | 6 × 9 × 2.5 cm |
