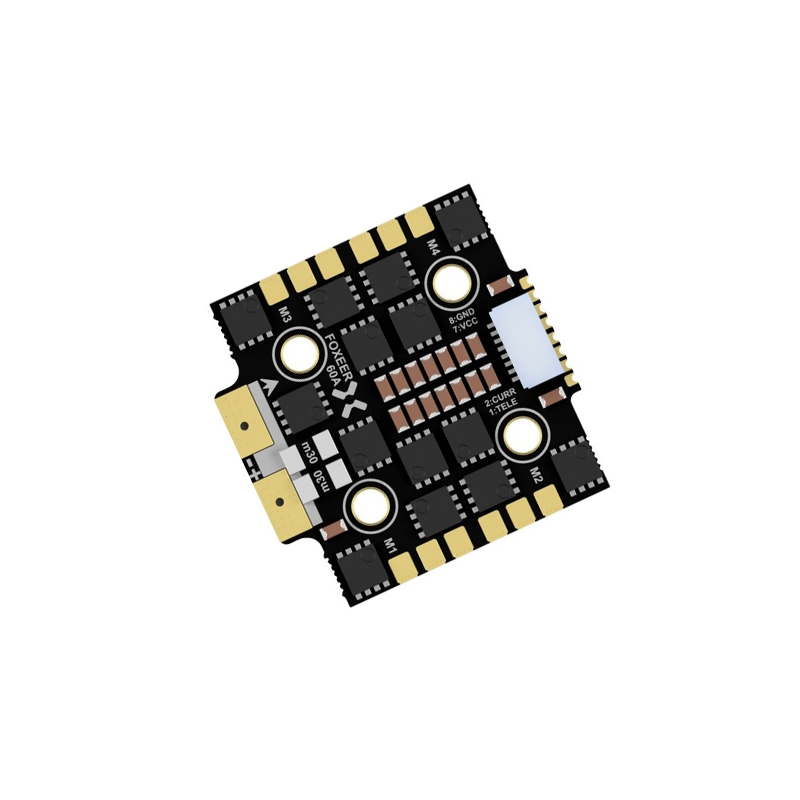

Foxeer Reaper F4 Mini 60A 3-8S 4-in-1 ESC
The Foxeer Reaper F4 Mini 60A 4-in-1 ESC provides robust power delivery for FPV racing drones, supporting 3-8S LiPo input. Its compact design and BLHeli32 firmware ensure efficient and responsive motor control for demanding flight maneuvers.
Features
- High-current 60A 4-in-1 ESC with 100A burst current per channel.
- Wide input voltage range from 3S to 8S LiPo (9V-40V DC) for versatile builds.
- Equipped with advanced BLHeli32 firmware for precise motor control and DShot 1200 support.
- Compact 20x20mm mounting pattern and lightweight 13.5g design for mini FPV frames.
- Integrated current sensor and telemetry support for real-time flight data monitoring.
Out of stock
The Foxeer Reaper F4 Mini 60A 4-in-1 Electronic Speed Controller is engineered for high-performance FPV racing and freestyle drones. This unit integrates four powerful 60A ESCs onto a single board, delivering a robust and stable power management solution capable of handling up to 100A burst current per channel. Operating across a wide 3-8S LiPo voltage range, it provides consistent power delivery for a variety of motor setups, ensuring peak performance under strenuous flight conditions.
Featuring advanced BLHeli32 firmware, the Reaper F4 Mini ESC offers superior motor control precision, supporting high-speed digital protocols like DShot 150/300/600/1200, as well as MultiShot and OneShot. Its compact 20x20mm mounting footprint and lightweight profile allow for seamless integration into smaller, agile drone frames without compromising on power or reliability. Built with high-quality components, this ESC ensures excellent thermal dissipation and stable operation, providing pilots with the confidence needed for aggressive flying.
Additional Information
| Dimensions | 4.05 × 4 × 0.55 cm |
|---|
