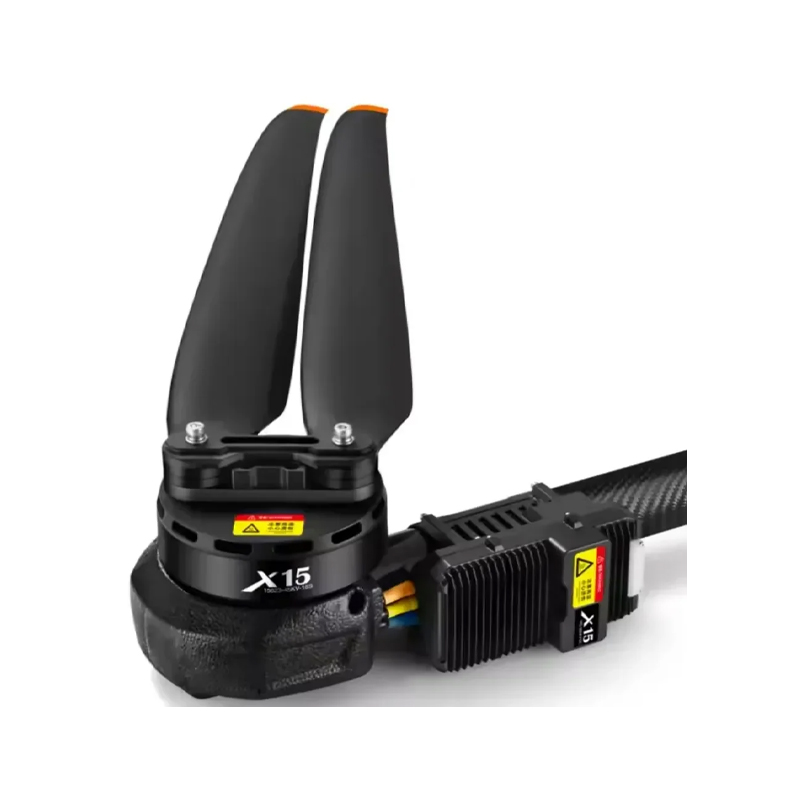

Hobbywing X15 Motor Power System Combo CW

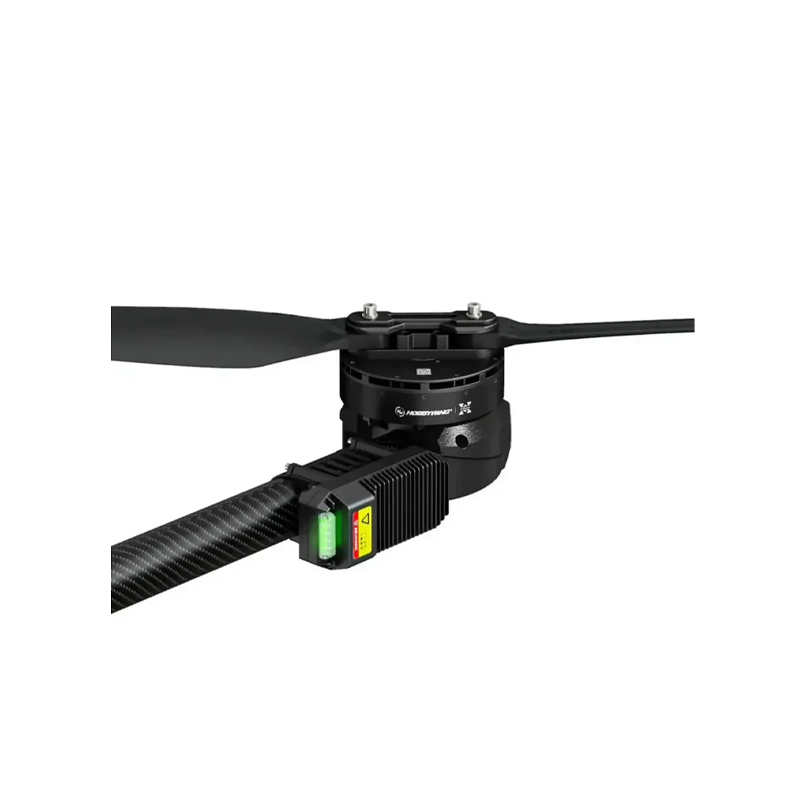

Hobbywing X15 Motor Power System Combo CW - Image 2

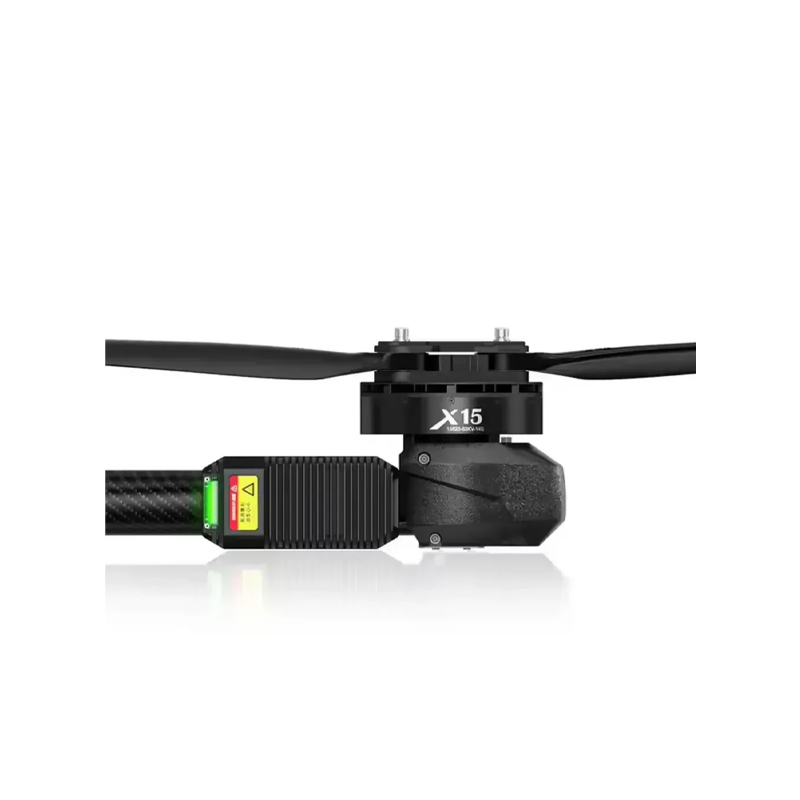

Hobbywing X15 Motor Power System Combo CW - Image 3
Hobbywing X15 Motor Power System Combo CW - Image 4
SKU: DRFC-3115
📋 GST Invoice Available

Hobbywing X15 Motor Power System Combo CW

₹89,439.00 (Inclusive of all taxes)
Out of Stock

The Hobbywing X15 CW Power System Combo is an integrated 5500W propulsion unit designed for heavy-lift agricultural and industrial drones, featuring a waterproof ESC, a 63×24″ carbon composite propeller, and support for 18S LiPo batteries with CAN and PWM control interfaces.

Features

  • Integrated 5500W brushless motor, ESC, and 63×24″ carbon composite propeller.
  • Delivers up to 72 kg of maximum thrust per rotor for heavy payloads.
  • IPX6 waterproof rating for reliable operation in harsh environmental conditions.
  • Supports 18S LiPo battery input (max 78.3V) with a 300A max current rating.
  • Features dual control interfaces: PWM (3.3V/5V) and high-speed CAN (DroneCAN/HWCAN).

Out of stock

Description

The Hobbywing X15 CW Power System Combo is engineered as a complete, high-power propulsion solution for demanding commercial UAV applications. Its integrated design combines a high-torque 5500W brushless motor, a robust electronic speed controller, and a large-diameter 63×24″ carbon-reinforced nylon propeller, optimized for efficiency and thrust generation under heavy load.

The system is built for durability, with an IPX6 waterproof rating protecting both the motor and ESC from moisture and contaminants, making it suitable for agricultural spraying and mapping missions. Electrical integration is streamlined through its 60mm tube arm mounting design and support for advanced CAN bus communication (DroneCAN/HWCAN) alongside standard PWM input, allowing for precise parameter tuning and telemetry feedback.

Key Features

  • High-Efficiency Thrust: Delivers 8.2–7.6 g/W efficiency at its rated 37.5 kg thrust point, optimizing flight time for payload operations.
  • Rugged Environmental Protection: IPX6-rated construction ensures reliable performance in wet, dusty, or chemically exposed conditions common in agriculture.
  • Advanced Communication & Control: Supports both PWM (50–500 Hz) and high-speed CAN bus (500 kbps) for flexible integration with open-source (e.g., ArduPilot) and commercial flight controllers.
  • High-Current Power Handling: ESC rated for continuous 300A current at ambient temperatures up to 60°C, capable of handling peak power demands.
  • Optimized Thermal Design: Stator size (156x23mm) and motor construction are engineered for sustained high-power operation within a -10°C to +40°C ambient range.
  • Complete System Integration: Pre-configured combo includes motor, ESC, propeller, power cables, and mounting hardware for simplified installation.

Applications

  • Heavy-lift agricultural drones for crop spraying and fertilizer distribution.
  • Large-scale mapping and surveying UAVs requiring extended flight time with sensor payloads.
  • Industrial cargo and logistics drones designed for transporting heavy packages.
  • Search and rescue (SAR) or firefighting drones carrying specialized equipment.
  • Cinematography platforms for heavy cinema cameras and gimbal systems.

Technical Specifications

Item TypeX15 Motor Combo CW
Motor TypeBrushless DC Motor
Model No.X15
Max Thrust72 kg (at 69V, Sea Level)
Rated Thrust (Efficiency Point)37.5 kg
Efficiency at Rated Thrust8.2 – 7.6 g/W
Operating Temperature-10°C to +40°C
Motor Diameter (Mount)60 mm
Propeller63 x 24" (Carbon Plastic Composite)
Propeller RotationCW (Clockwise)
BearingWaterproof
Max Voltage78.3 V
Max Continuous Current300 A (≤ 60°C ambient)
ESC Control InterfacePWM (3.3V/5V) + CAN
PWM Frequency Range50 – 500 Hz
CAN Baud Rate500 kbps
Supported ProtocolsDroneCAN, HWCAN
Stator Size156*23 mm
Unit Length780 mm
Unit Width185 mm

Frequently Asked Questions

What is the maximum battery voltage supported by the Hobbywing X15 Combo?

The Hobbywing X15 Power System Combo supports a maximum input voltage of 78.3V, which is designed for use with 18S LiPo battery packs. It is critical to not exceed this voltage limit to prevent damage to the integrated ESC and motor windings.

Can I use this motor combo with an ArduPilot or Pixhawk flight controller?

Yes, the X15 Combo is fully compatible with open-source flight controllers like ArduPilot/Pixhawk. You can use the CAN bus interface (DroneCAN) for advanced telemetry and parameter tuning, or the standard PWM input. If using PWM, ensure the flight controller's output is configured for a 1050-1950 µs throttle range.

What does the IPX6 waterproof rating mean for field operations?

The IPX6 rating indicates the motor and ESC are protected against powerful water jets from any direction, making the system highly resistant to rain, spray, and washing. This is essential for reliability in agricultural spraying, maritime environments, or any operation where exposure to moisture is likely.

What size drone arm is required to mount the X15 motor?

The Hobbywing X15 Combo is designed for mounting on 60mm diameter tube-style drone arms. The included mounting accessories are specifically configured for this size, ensuring a secure and vibration-free installation critical for heavy-lift stability.

How do I adjust parameters like throttle curve or current limiting?

Parameters can be adjusted using Hobbywing's DataLink tool, a CAN Analyzer, or DroneCAN GUI software via the CAN bus interface. It is crucial to adjust parameters cautiously, as changes will directly impact flight performance, efficiency, and thermal management of the system.

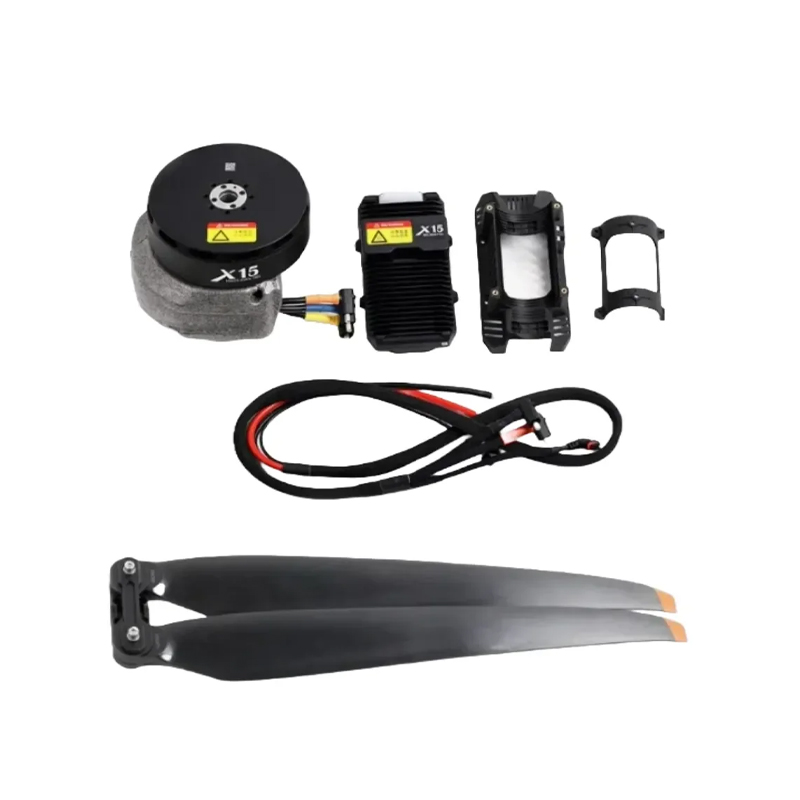

Package Includes

  • 1 x Hobbywing X15 Motor Combo CW
  • 1 x Electronic Speed Controller (ESC)
  • 1 x 63x24" Carbon Composite Propeller (CW)
  • 1 x Set of Power Cables
  • 1 x Set of Mounting Accessories

Additional Information

Weight 7.1 kg
Dimensions 78 × 18.5 cm
