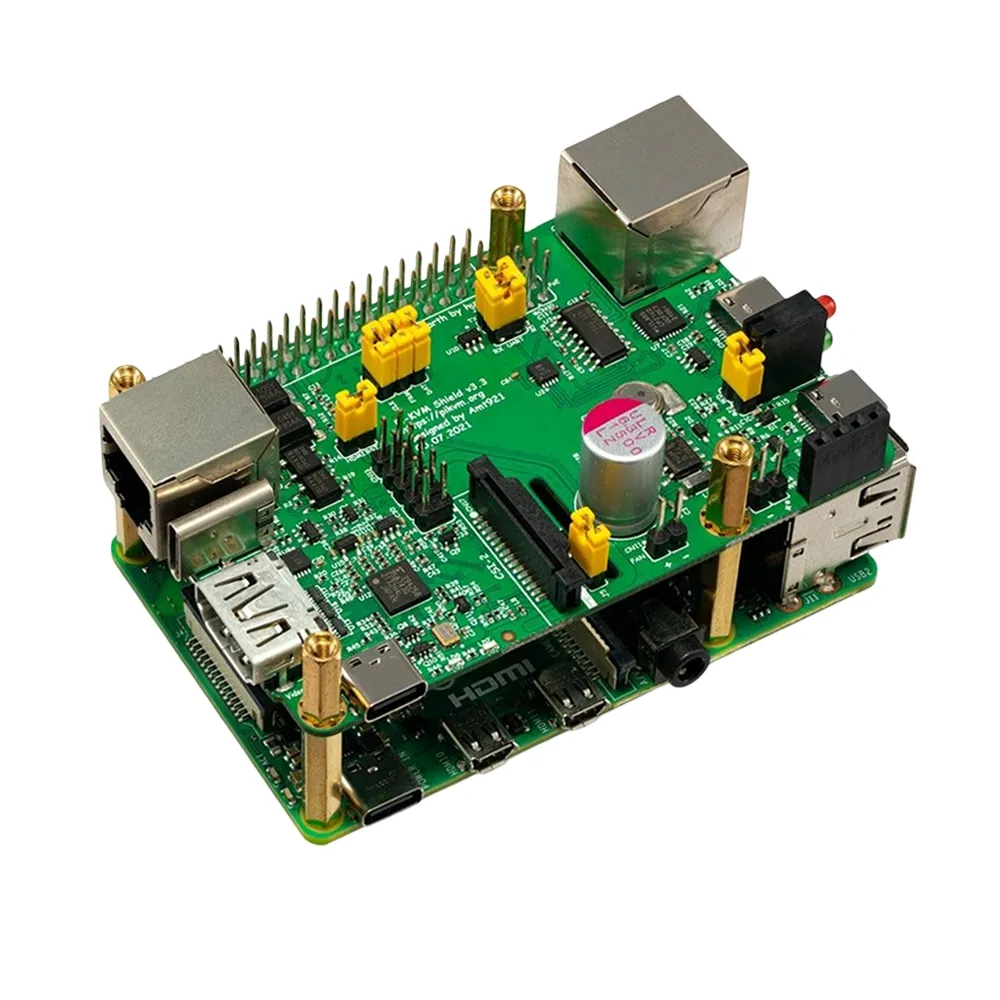

HiPi PiKVM v3 HAT for Raspberry Pi 4
HiPi PiKVM v3 HAT for Raspberry Pi 4 - Image 2
HiPi PiKVM v3 HAT for Raspberry Pi 4 - Image 3
HiPi PiKVM v3 HAT for Raspberry Pi 4 - Image 4
SKU: SBCD-1391
📋 GST Invoice Available

HiPi PiKVM v3 HAT for Raspberry Pi 4

₹15,889.00 (Inclusive of all taxes)
Out of Stock

The HiPi PiKVM v3 HAT transforms your Raspberry Pi 4 into a powerful, open-source KVM-over-IP solution, offering remote hardware-level access to target machines. Gain full control over BIOS/UEFI settings, OS reinstallation via virtual media, and power management, independent of the target system’s operating state.

Features

  • Provides remote KVM-over-IP access for BIOS/UEFI configuration and OS reinstallation.
  • Features low-latency HDMI video capture (1080p 50Hz) with MJPEG or H.264/WebRTC.
  • Includes virtual CD-ROM and Flash Drive emulation for comprehensive system maintenance.
  • Integrated ATX power control for remote power cycling of the connected server.
  • Offers full keyboard and mouse emulation for seamless remote interaction.

Out of stock

Description

The HiPi PiKVM v3 HAT is an advanced KVM-over-IP solution designed for the Raspberry Pi 4, enabling comprehensive remote management of servers and computers. This HAT allows users to interact with a target machine at a hardware level, regardless of its boot state, making it ideal for managing headless servers, troubleshooting operating system issues, or performing low-level system configurations like BIOS/UEFI adjustments. By leveraging the Raspberry Pi, it provides a cost-effective yet robust alternative to traditional KVM solutions, integrating seamlessly into existing network infrastructures.

Equipped with a high-performance HDMI video capture module, the PiKVM v3 delivers low-latency video streaming up to 1080p at 50Hz, supporting both MJPEG and H.264/WebRTC codecs for optimal performance over various network conditions. Its virtual mass storage capabilities enable OS reinstallation from remotely mounted ISOs or virtual USB drives, while integrated ATX power control ensures you can power cycle the target system even if it’s completely unresponsive. The HAT also includes an onboard real-time clock, a 5V PWM fan controller, and health monitoring for the Raspberry Pi, enhancing its reliability and operational oversight.

Key Features

  • Fully open-source software with a pre-configured, fine-tuned Linux-based OS for ease of use.
  • Web UI and VNC access for versatile remote server management.
  • HDMI video capture with extra-low latency (1080p 50Hz max) using MJPEG or H.264/WebRTC codecs.
  • Comprehensive keyboard and mouse emulation for complete remote input control.
  • Bootable Virtual CD-ROM and Flash Drive emulation for OS installation and recovery.
  • Mass storage emulation with "removal and insertion" simulation for flexible device management.
  • ATX controller via RJ45 ports for remote power on/off and reset functionality.
  • Onboard real-time clock (RTC) for accurate system logging and timekeeping.
  • 5V PWM fan controller for optimized thermal management of the Raspberry Pi.
  • Health monitoring of the Raspberry Pi to ensure stable operation.
  • USB and RJ-45 serial console access for debugging and direct command-line interaction.
  • Web UI control for GPIO ports and USB relays, expanding automation possibilities.
  • Compatible with Apple computers for broad system support.

Applications

  • Remote server administration and headless system management.
  • BIOS/UEFI configuration and low-level system troubleshooting.
  • Operating system reinstallation using virtual media (CD-ROM/Flash Drive).
  • Data center and server room management for power cycling and initial setup.
  • Educational and development environments requiring remote hardware access.

Technical Specifications

Item TypeHAT
CompatibilityRaspberry Pi 4
HAT TypePiKVM HAT
OS Supports (Target)Linux (via KVM)
Video InputHDMI
USB Interface (Pi to Target)USB-C (for KVM emulation)
MicrocontrollerRaspberry Pi 4 (Host)

Frequently Asked Questions

What is the primary function of the HiPi PiKVM v3 HAT?

The PiKVM v3 HAT converts your Raspberry Pi 4 into a robust KVM-over-IP device. It provides complete remote access to a target computer at the hardware level, allowing users to interact with the BIOS, reinstall operating systems via virtual media, and control power functions from any location.

What are the main connectivity and video capabilities?

This HAT uses an HDMI input for video capture, supporting resolutions up to 1080p at 50Hz with extra-low latency using MJPEG or H.264/WebRTC codecs. It connects to the target machine via USB-C for keyboard and mouse emulation, and an RJ45 port for ATX power control.

Does the PiKVM v3 require specific software on the target machine?

No, the PiKVM v3 operates at a hardware level and does not require any software or drivers installed on the target machine. This independence allows full control even when the target system is powered off, during boot, or experiencing OS failures, offering true out-of-band management.

Can I use the PiKVM v3 for OS installation or recovery?

Yes, the PiKVM v3 supports bootable Virtual CD-ROM and Flash Drive emulation. This feature allows you to mount ISO images or other virtual media files stored on the Raspberry Pi and present them to the target machine as if they were physical drives, facilitating OS installations or recovery tasks.

What Raspberry Pi model is required for the PiKVM v3 HAT?

The HiPi PiKVM v3 HAT is specifically designed for and compatible with the Raspberry Pi 4. It leverages the Raspberry Pi 4's processing power and connectivity to provide its advanced KVM-over-IP functionality, ensuring optimal performance for remote management tasks.

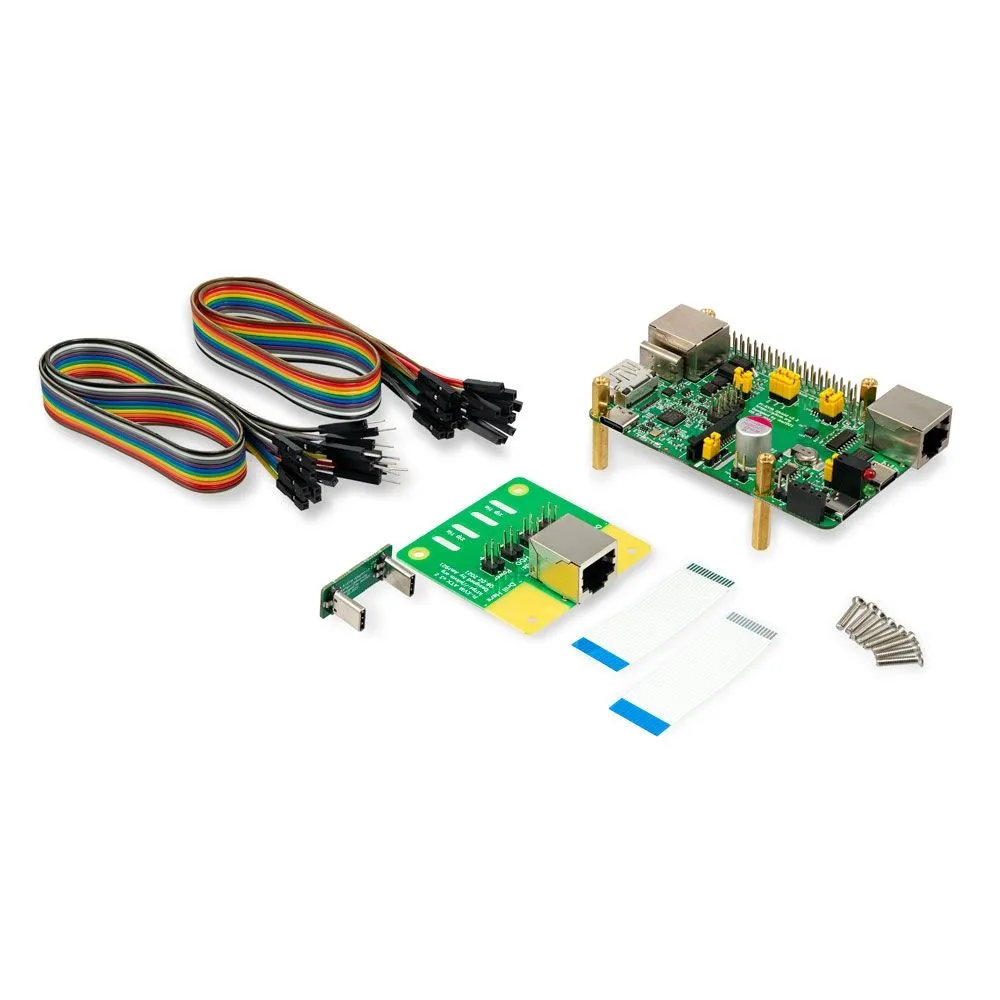

Package Includes

  • 1 x PiKVM v3 HAT
  • 1 x USB-C bridge board

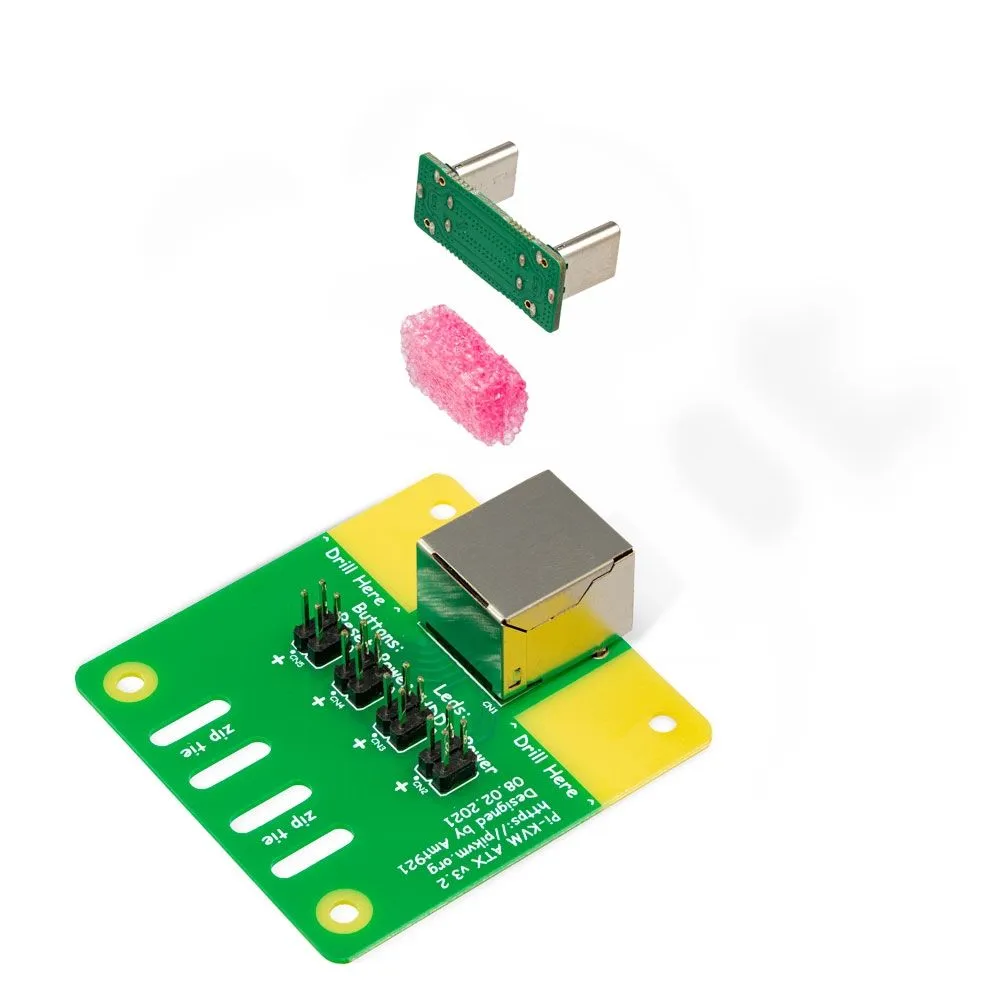

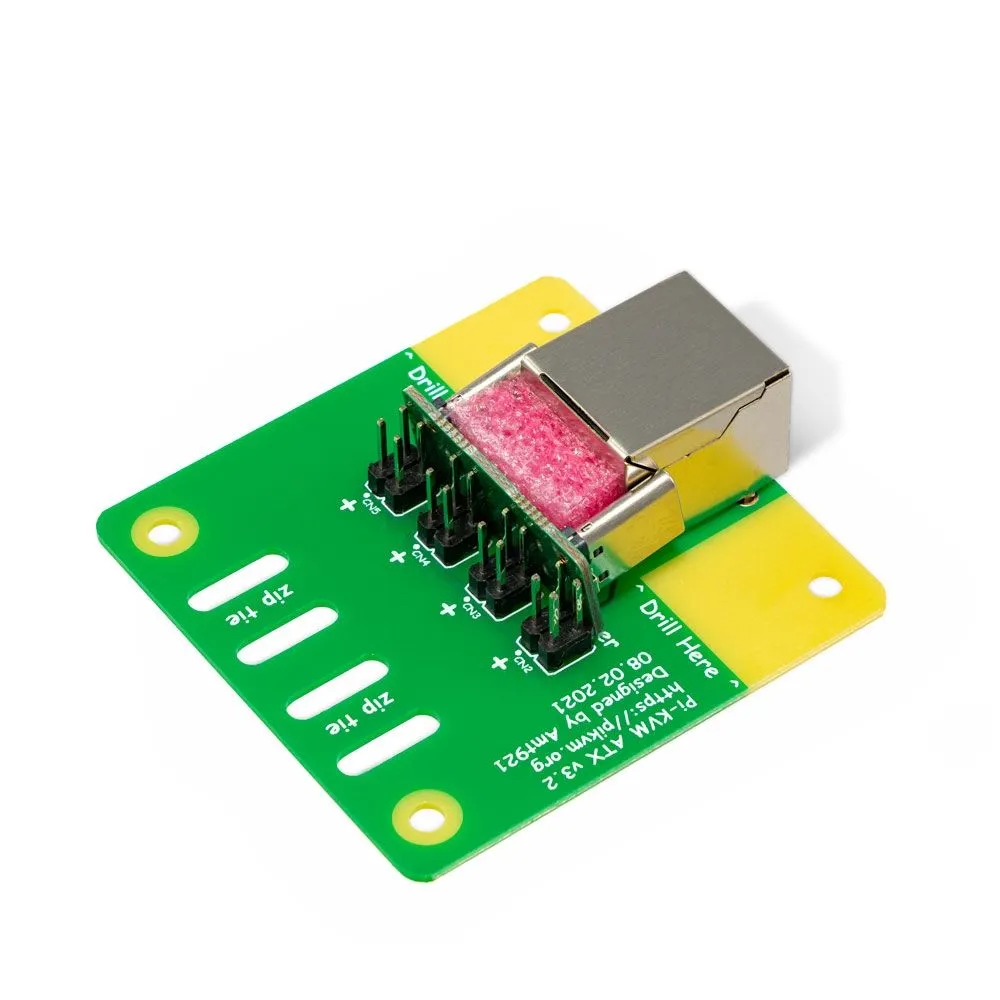

  • 1 x ATX adapter board
  • 2 x Flat CSI-2 cable
  • 7 x Colorful jumpers
  • 4 x Brass standoffs
  • 8 x Screws
  • 1 x Wires for connecting the ATX interface to the motherboard

Additional Information

Weight 0.2 kg
Dimensions 9 × 9 × 5 cm
