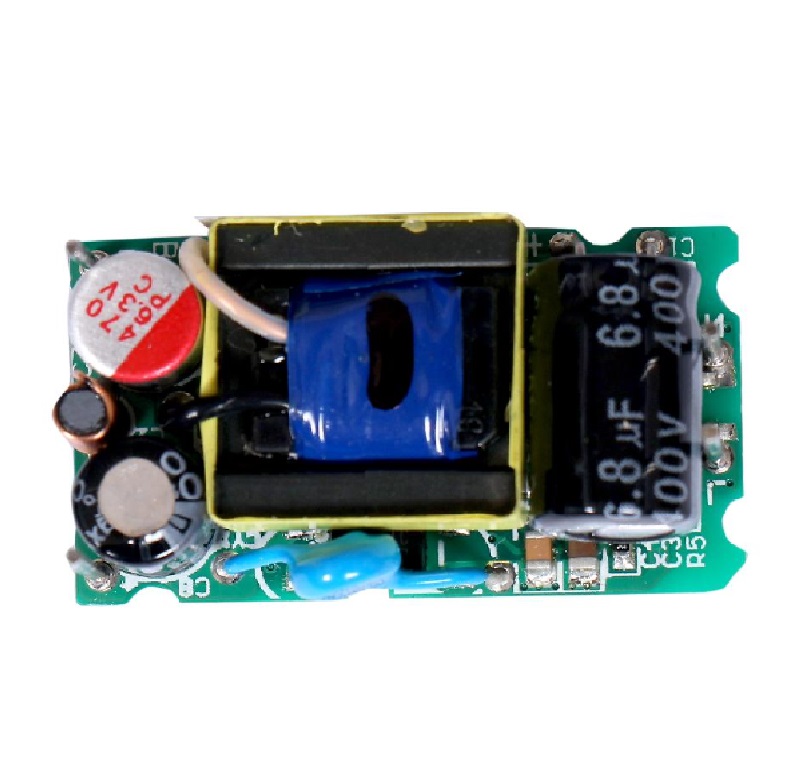

Hi-Link HLK-PM03L Open Frame AC-DC Power Module - 3.3V 600mA Output

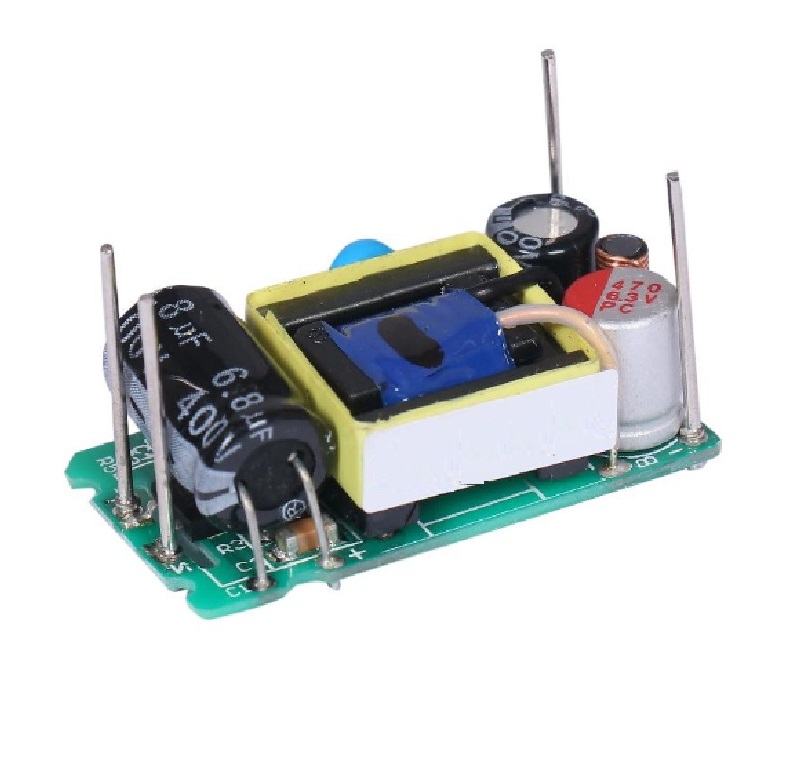

Hi-Link HLK-PM03L Open Frame AC-DC Power Module - 3.3V 600mA Output - Image 2

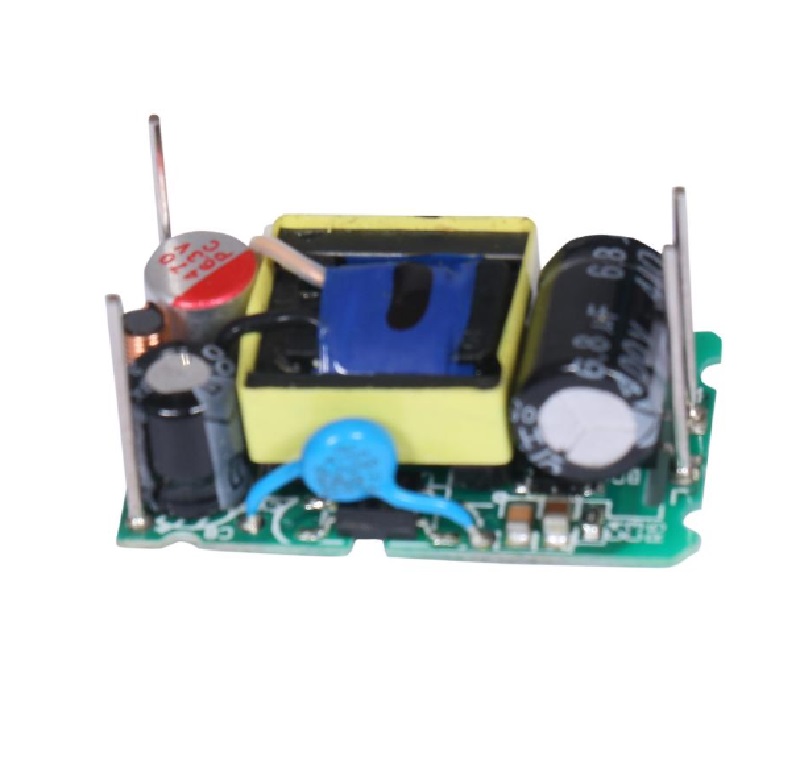

Hi-Link HLK-PM03L Open Frame AC-DC Power Module - 3.3V 600mA Output - Image 3
SKU: SENS-4265
📋 GST Invoice Available

Hi-Link HLK-PM03L Open Frame AC-DC Power Module - 3.3V 600mA Output

₹169.00 (Inclusive of all taxes)
Out of Stock

The Hi-Link HLK-PM03L is an open-frame AC-DC power module designed to provide a stable 3.3V DC supply from a wide-range AC mains input. It is engineered for integration into embedded systems, IoT devices, and industrial control boards requiring compact, isolated power conversion.

Features

  • Wide-range AC input (100-240V AC, 50-60Hz) for global compatibility.
  • Provides a stable 3.3V DC output with a continuous current rating of 600mA (3W).
  • Open-frame design with high-efficiency conversion and low no-load power consumption.
  • Incorporates output overload and short-circuit protection for enhanced system safety.
  • Meets UL and CE safety and EMC requirements for reliable industrial and commercial use.

Out of stock

Description

The HLK-PM03L is a compact, high-efficiency AC-DC power module engineered by Hi-Link Electronics. It utilizes advanced switching technology to convert a universal AC mains input into a precisely regulated 3.3V DC output, making it an ideal power solution for microcontroller boards, sensor nodes, and communication modules. Its design prioritizes low ripple and noise for sensitive electronic applications.

Featuring reinforced safety isolation, the module ensures protection between the high-voltage AC input and the low-voltage DC output. The open-frame construction allows for efficient heat dissipation and easy integration into end-product enclosures. It is built for reliability with a focus on low-temperature operation and high power density, suitable for space-constrained designs.

Key Features

  • Universal 100-240V AC input range compatible with global mains voltages.
  • Stable 3.3V DC output capable of delivering up to 600mA continuous current (1000mA peak).
  • High-efficiency design with low no-load loss for energy-conscious applications.
  • Integrated output overload and short-circuit protection safeguards connected circuitry.
  • Open-frame, ultra-compact form factor for easy PCB mounting and thermal management.
  • Designed to meet UL and CE standards for safety and electromagnetic compatibility (EMC).
  • Low output ripple and noise ensure clean power for sensitive analog and digital components.

Applications

  • Power supply for ESP8266, ESP32, Arduino, and other 3.3V microcontroller development boards.
  • Integrated power conversion module for IoT gateways, smart home hubs, and sensor networks.
  • Compact auxiliary power source for industrial PLCs, relay modules, and control circuitry.
  • Embedded power solution for consumer electronics, LED drivers, and display modules.

Technical Specifications

Item TypePower Module
Model NumberHLK-PM03L
Input Voltage100-240V AC
Input Frequency50-60Hz
Output Voltage3.3V DC
Output Current (Continuous)600mA
Output Current (Peak)1000mA
Rated Power3W
EfficiencyApprox. 70%
Input Current0.2A
ProtectionOverload, Short-Circuit
IsolationSafety Isolation
ComplianceUL, CE

Frequently Asked Questions

What is the exact input voltage range for the HLK-PM03L module?

The HLK-PM03L accepts a wide-range AC input from 100 to 240 volts at a frequency of 50-60Hz. This makes it compatible with standard mains power in most countries worldwide without requiring a voltage selector switch.

Can this module power a 5V Arduino board?

No, this module provides a fixed 3.3V DC output. It is designed for 3.3V logic devices like ESP8266, ESP32, or sensors. To power a 5V Arduino, you would need a module with a 5V output, such as the HLK-PM01 or a similar 5V model.

Does the module provide electrical isolation between input and output?

Yes, the HLK-PM03L is designed with safety isolation between the high-voltage AC input and the low-voltage DC output. This isolation helps protect sensitive downstream electronics from mains voltage transients and is a key part of its compliance with UL and CE safety standards.

What protections are included in this power module?

The module features built-in output overload and short-circuit protection. If the output current demand exceeds safe limits or a short occurs, the module will automatically limit or shut down the output to prevent damage to itself and the connected load, enhancing system reliability.

Package Includes

  • 1 x Hi-Link HLK-PM03L Open Frame Power Module

Additional Information

Weight 0.009 kg
Dimensions 7 × 6 × 2.5 cm
