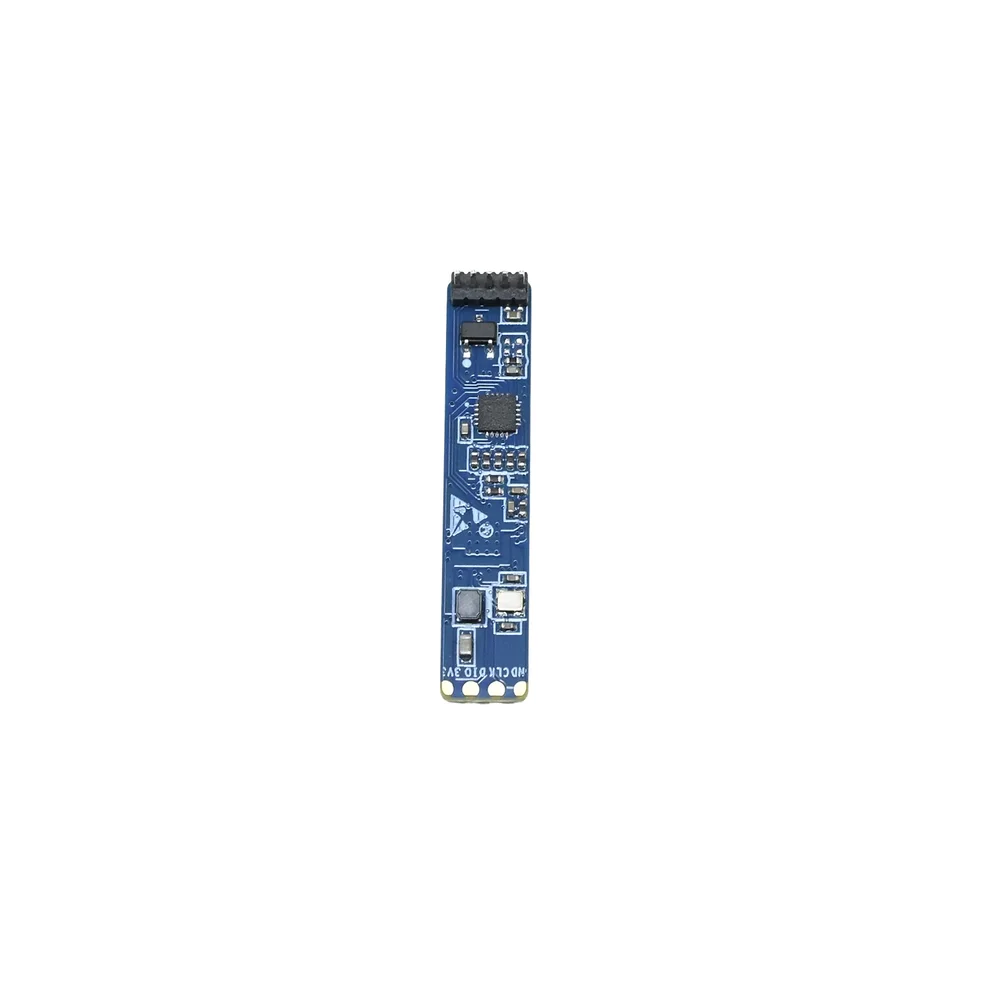

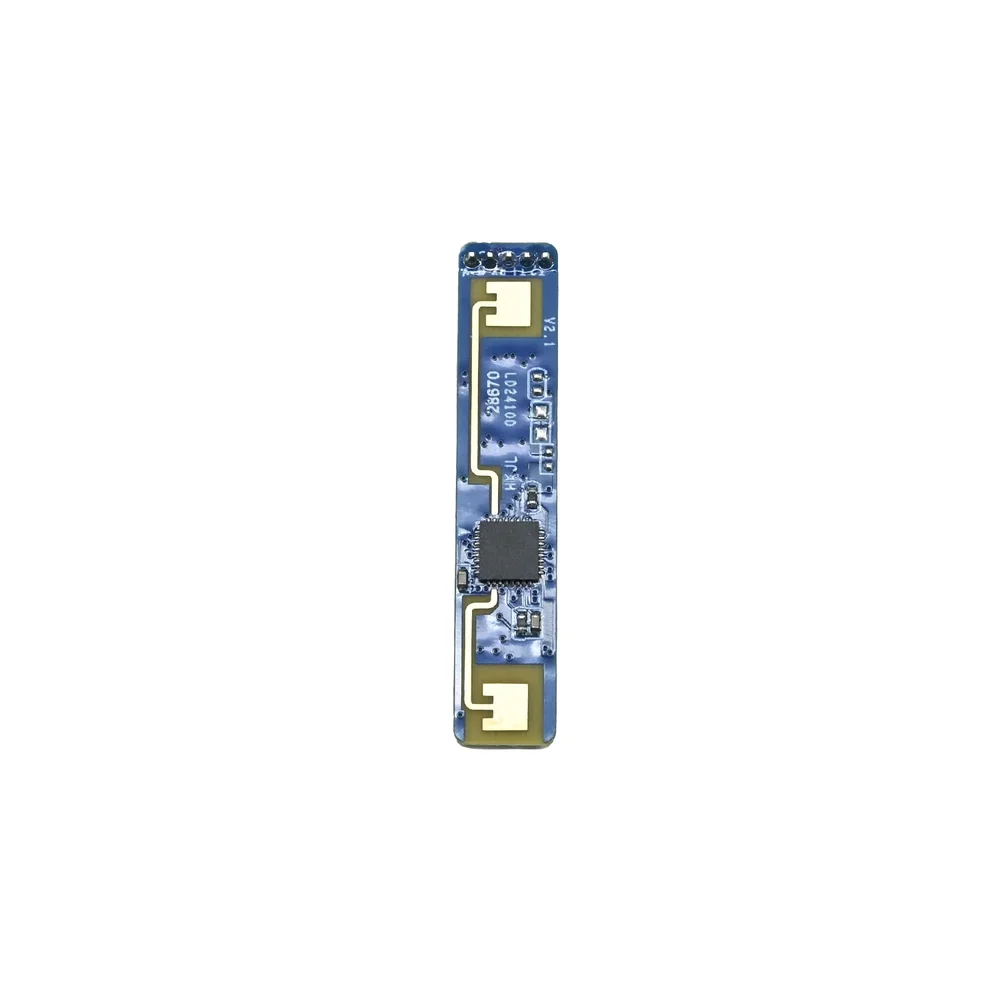

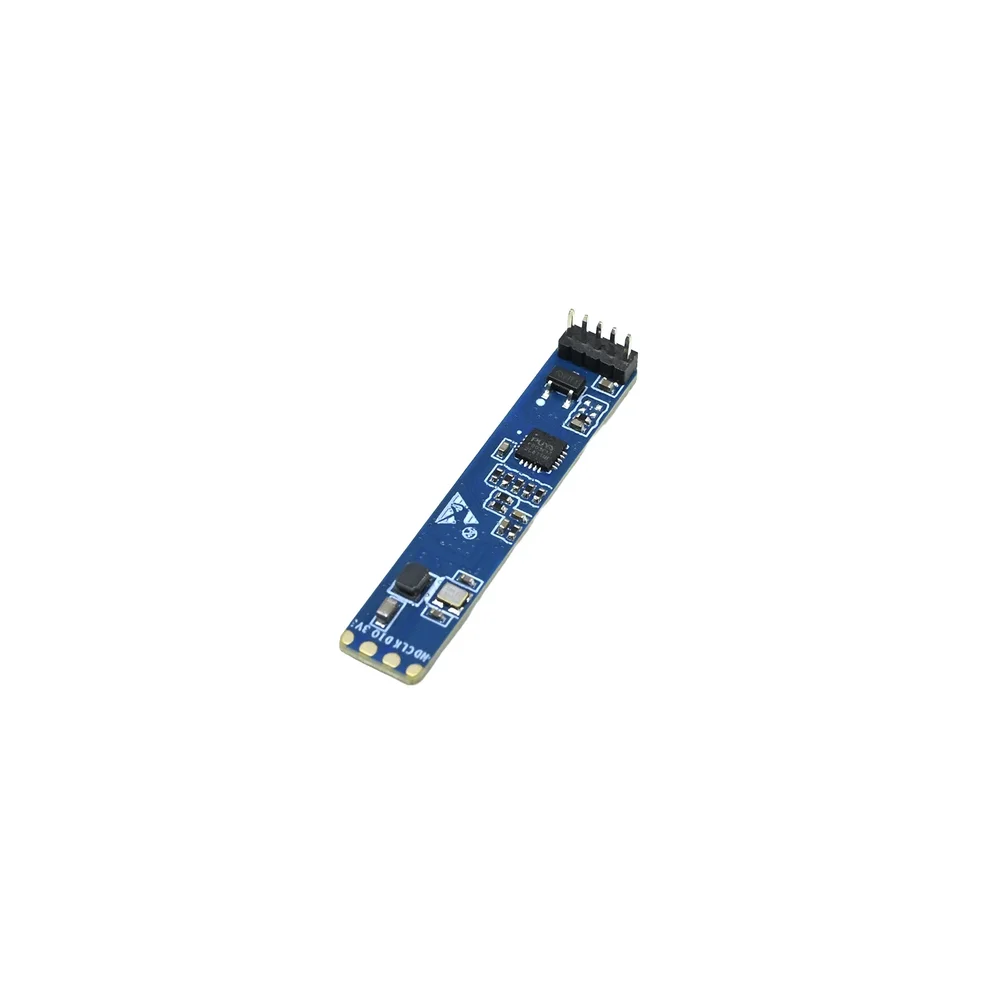

Hi-Link HLK-LD2410D 24GHz Motion & Human Presence Sensor Module - UART/GPIO Interface
The Hi-Link HLK-LD2410D is a 24GHz millimeter-wave radar sensor module designed for precise motion and stationary human presence detection. Operating at 5V DC, it provides UART and GPIO outputs for seamless integration with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.
Features
- 24GHz FMCW radar detects motion, micro-motion, and stationary human presence up to 6 meters.
- Dual voltage support (3.0-3.6V or 4.5-5.5V) with a default 5V DC operation for broad compatibility.
- Real-time data output via UART (115200 bps) and configurable GPIO high/low signals.
- Compact 7x35mm form factor with a wide ±60° detection angle for space-constrained installations.
- Industrial-grade operating temperature range from -40°C to 85°C for reliable performance.
Out of stock
The HLK-LD2410D utilizes Frequency Modulated Continuous Wave (FMCW) radar technology within the 24-24.25 GHz ISM band to detect subtle movements and stationary human presence. Its advanced signal processing algorithms differentiate between motion, micro-motion (like breathing), and static targets, providing a significant advantage over traditional PIR sensors. The module outputs real-time detection data and distance information through its serial interface.
Engineered for robust integration, the sensor features configurable sensitivity, detection range, and hold time via UART commands. Its compact, surface-mount design and low 50mA average current consumption make it suitable for battery-powered and embedded smart systems requiring continuous, reliable presence sensing.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 3.5 × 0.7 cm |
