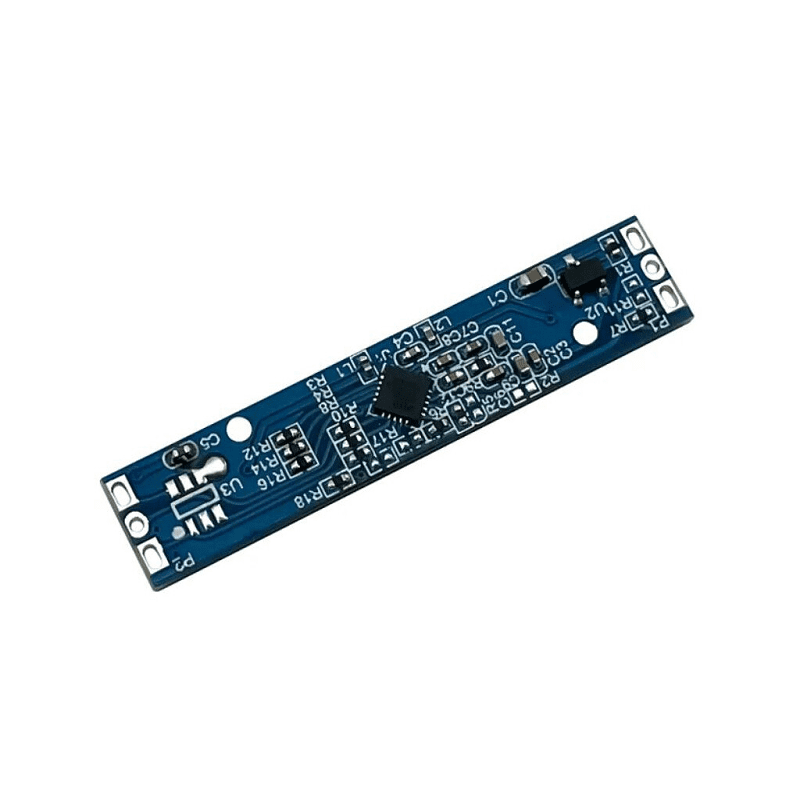

Hi-Link HLK-LD1030 10GHz X-Band Motion Detection Radar Sensor Module
The Hi-Link HLK-LD1030 is a compact X-band (10.525GHz) Doppler radar motion sensor module designed for embedded applications. It operates from 3.3V to 12V DC, features an adjustable detection range of 2-6 meters, and includes integrated signal processing for reliable presence detection in smart lighting and automation systems.
Features
- 10.525GHz X-Band Doppler Radar with 1T1R antenna for precise motion sensing.
- Adjustable sensing range from 2 to 6 meters via onboard configuration.
- Wide operating voltage range of 3.3V to 12V DC for flexible system integration.
- Integrated intermediate frequency demodulation, amplification, and digital processing.
- Robust performance across -20°C to +85°C, unaffected by humidity or airborne particulates.
Out of stock
The HLK-LD1030 utilizes a fixed-frequency X-band radar chip operating at 10.525GHz to detect motion via the Doppler shift principle. Its integrated design includes a directional antenna, intermediate frequency (IF) demodulation circuit, signal amplification, and digital processing, providing a clean, processed output signal. This architecture ensures high clutter suppression and harmonic rejection for stable, reliable operation.
Engineered for concealed installation, the module is immune to environmental factors like temperature fluctuations, humidity, smoke, and water mist. Its non-penetrating RF characteristics prevent false triggers through walls, making it ideal for precise zone detection in indoor environments. The module supports optional light intensity detection and features configurable delay and sensitivity settings for customized application behavior.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
