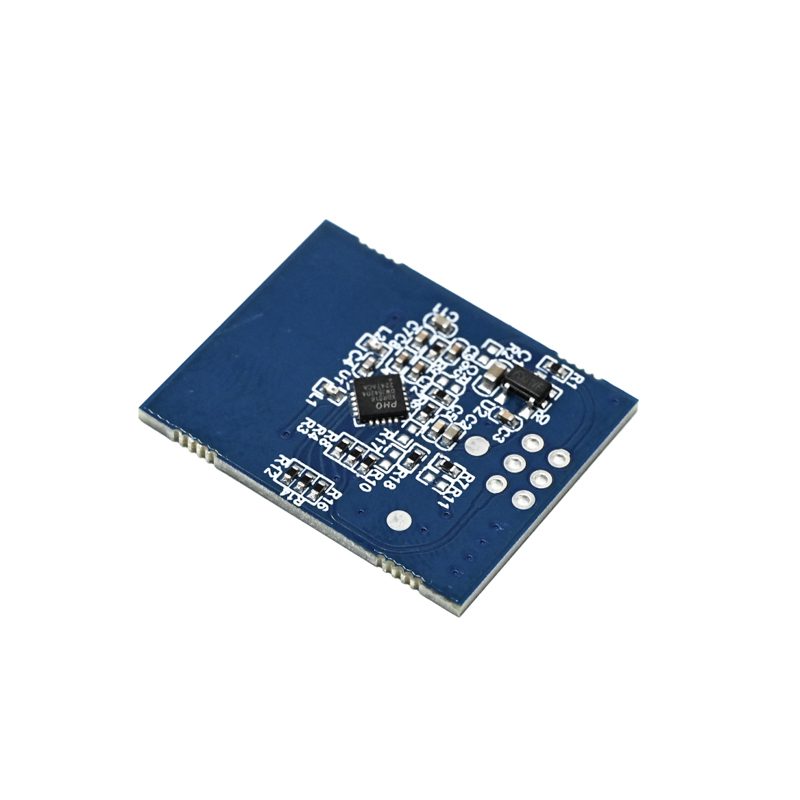

Hi-Link HLK-LD1010 10GHz Motion Detection Radar Sensor Module
The Hi-Link HLK-LD1010 is a compact, low-power 10.525GHz X-band microwave radar motion sensor module. It features a 1T1R antenna design with integrated signal processing, offering configurable sensing range and delay settings for integration into smart lighting, security devices, and battery-powered IoT systems.
Features

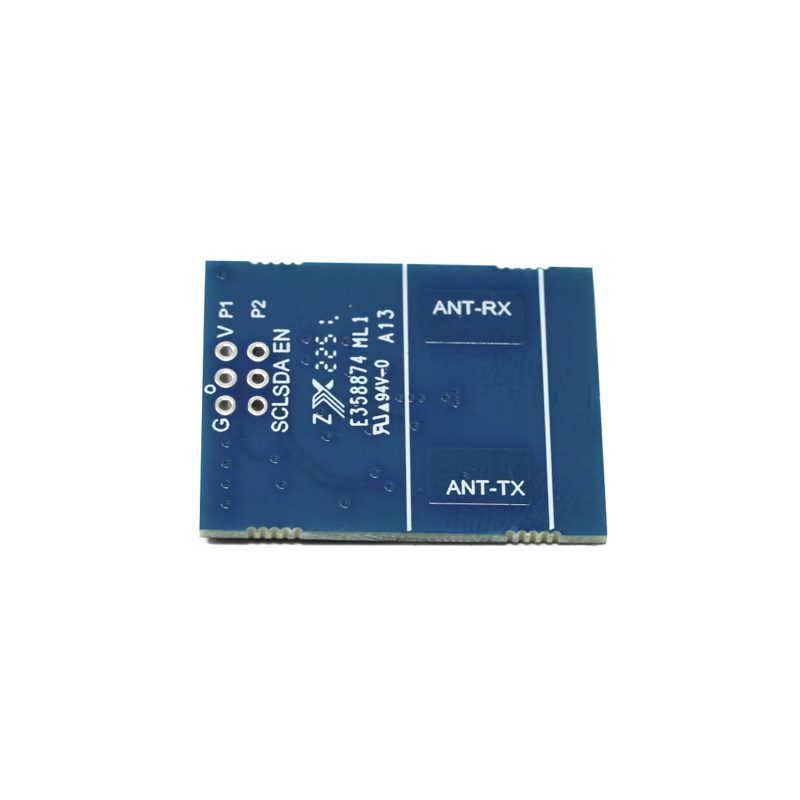

- 10.525GHz X-band radar chip with 1T1R directional antenna for precise motion detection.
- Ultra-low power consumption of only 100µA in pulse power mode for battery-operated applications.
- Configurable sensing range: 2-4m radius (ceiling mount) or 2-6m radial (wall mount).
- Wide 110° ± 10° beam angle for broad coverage in ceiling installations.
- Robust operation from -20°C to +70°C, immune to environmental factors like humidity and smoke.
Out of stock
The HLK-LD1010 is a micro-motion sensing module based on a fixed-frequency 10.525GHz X-band radar transceiver. It integrates intermediate frequency demodulation, signal amplification, and digital processing on-board, outputting a clean digital trigger signal upon detecting motion within its adjustable field of view. Its design suppresses clutter and harmonics effectively, ensuring high stability and consistency across units.
Engineered for concealed embedding, the module is unaffected by ambient temperature, humidity, oil smoke, or water mist, making it suitable for demanding indoor environments. The combination of ultra-low power draw and configurable parameters like sensing delay and sensitivity allows for optimized performance in a wide range of low-power consumer and commercial electronics.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
