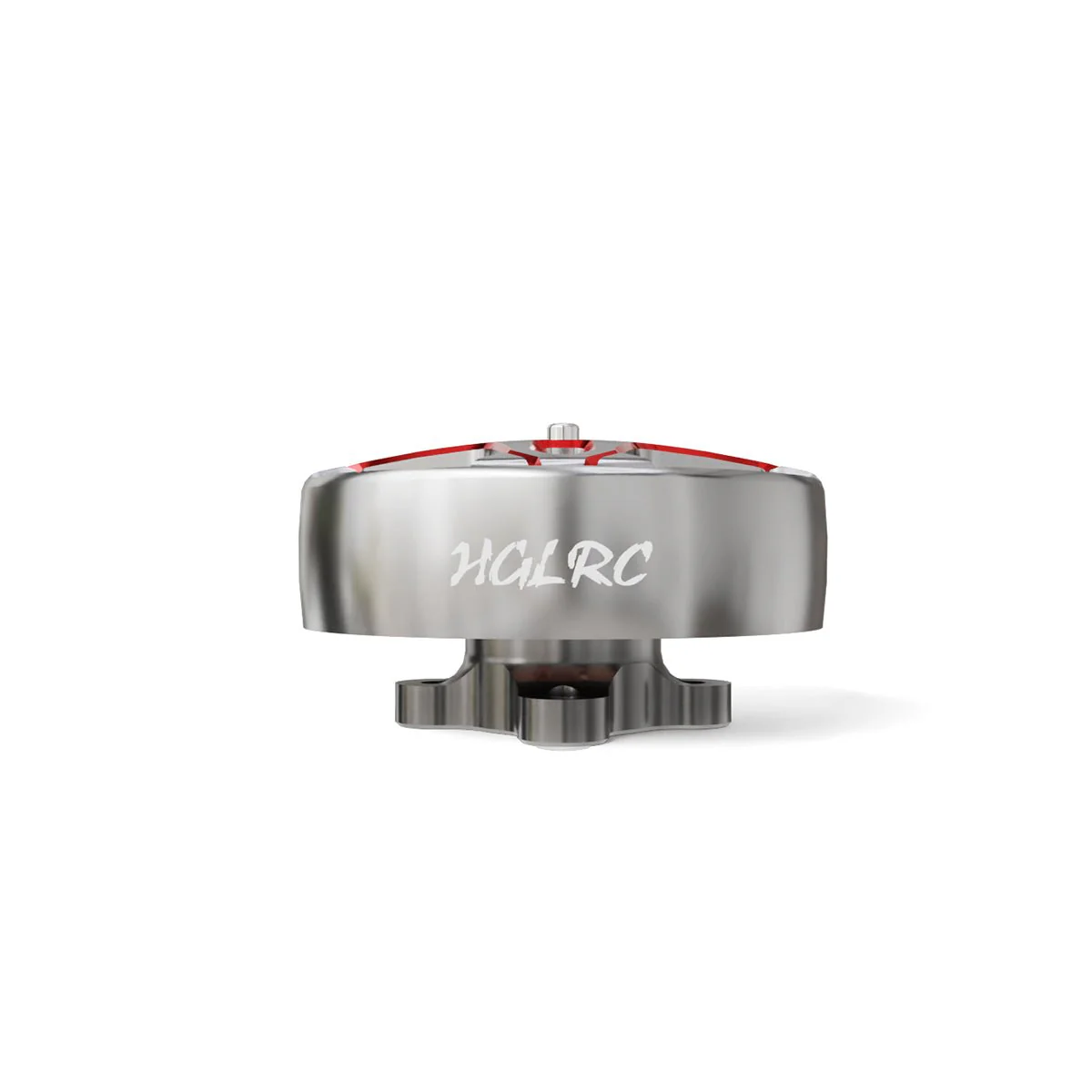

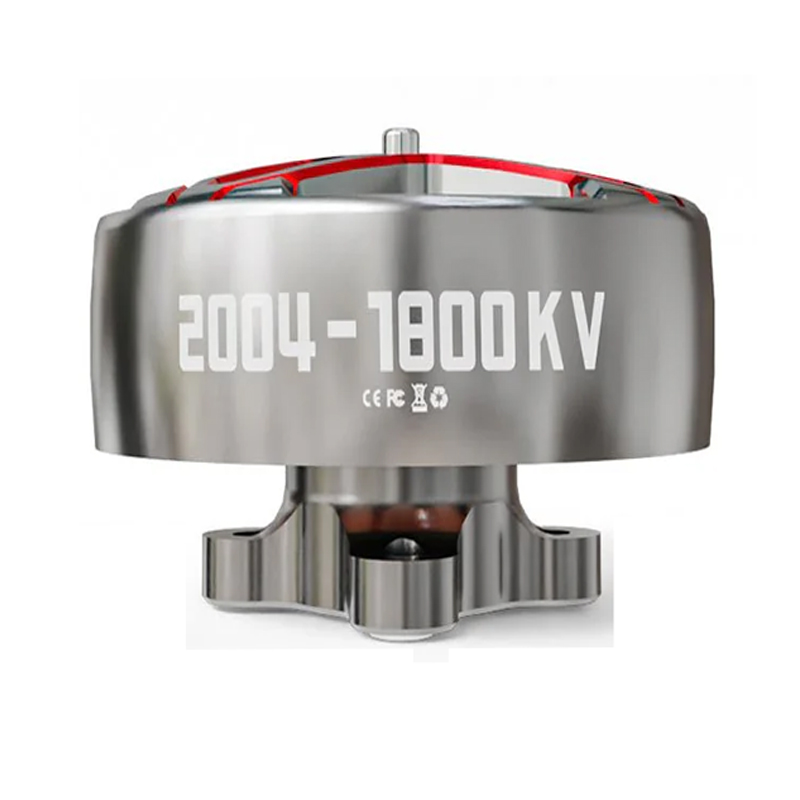

HGLRC SPECTER 2004 1800KV Brushless Motor
The HGLRC SPECTER 2004 1800KV brushless motor is engineered for high-performance 4-6S LiPo FPV freestyle and racing drones. Its 12N14P stator design and N52H magnets deliver high torque and linear power output for responsive 3-5 inch propeller setups.
Features
- 2004 size with 1800KV rating for 4-6S LiPo voltage range (14.8-25.2V).

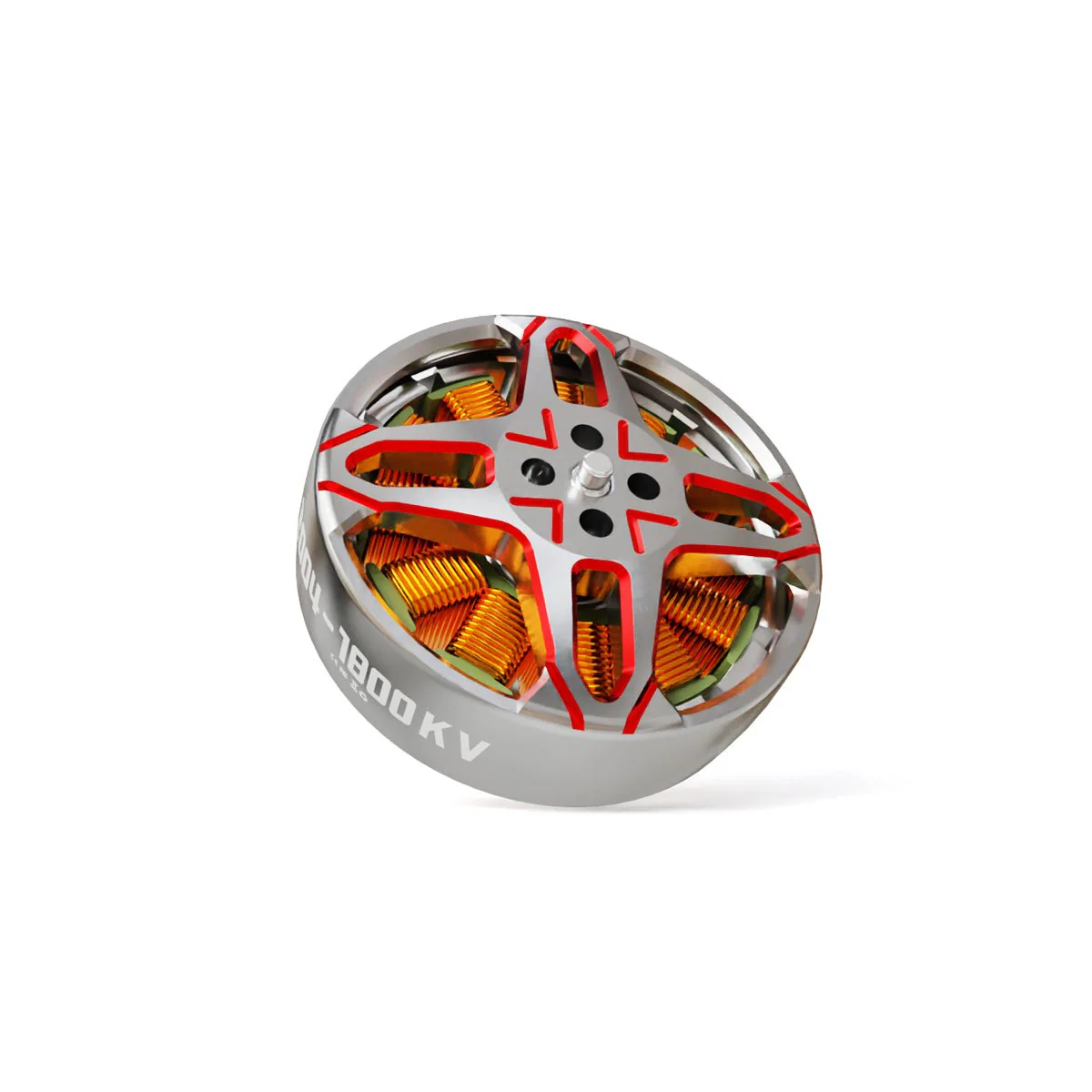

- High-strength one-piece rotor crafted from 7075 aviation aluminum alloy.
- Custom N52H curved magnetic steel for strong magnetism and high torque output.
- Super high-temperature resistant 200°C copper wire windings ensure stable operation.
- Optimized tuning for linear power delivery and fast response during rapid throttle changes.
Out of stock

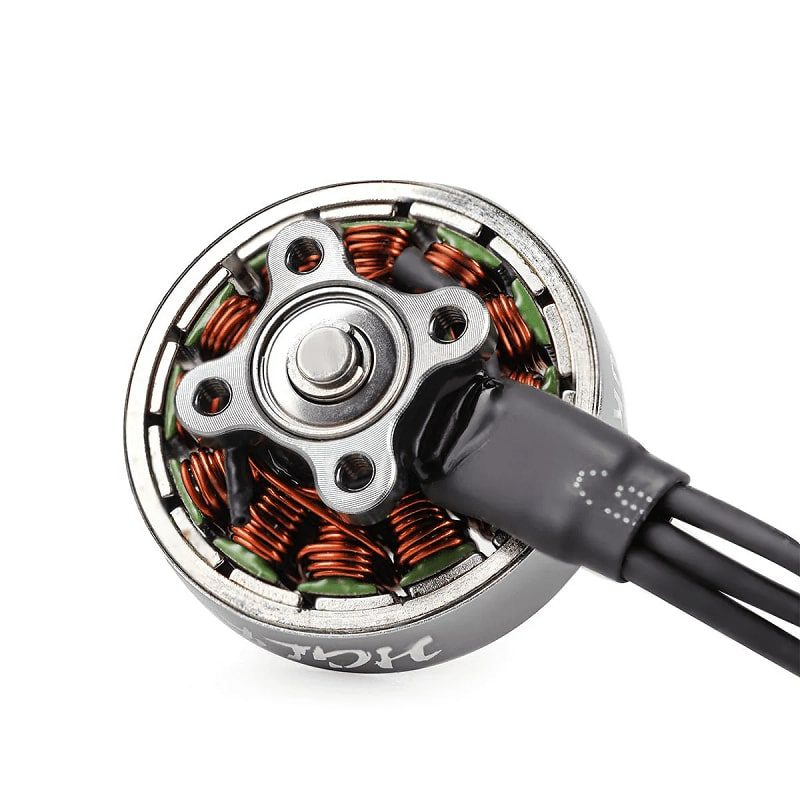

The SPECTER 2004 motor utilizes a 12N14P slot-pole configuration combined with imported Kawasaki silicon steel stator laminations. This design minimizes core losses and heat generation, improving overall electrical efficiency and thermal management during aggressive flight maneuvers.

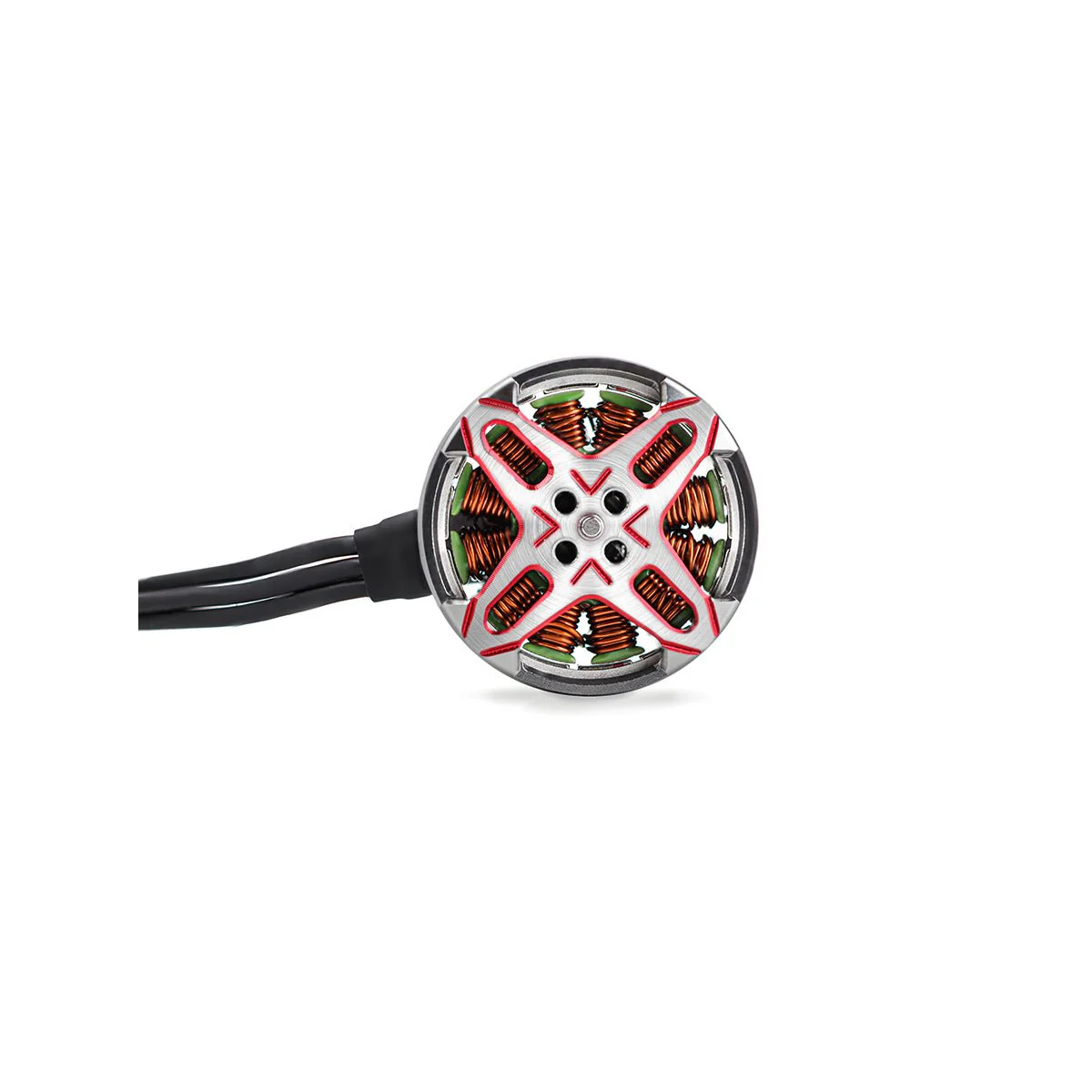

Constructed with an alloy steel output shaft and a lightweight, anodized two-color rotor, the motor achieves an optimal balance of strength and reduced rotational mass. This engineering focus results in precise control and rapid acceleration, making it ideal for pilots demanding crisp throttle response and reliable durability.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 6 × 6 × 4 cm |
