HGLRC SPECTER 2306.5-1900KV Brushless Motor - 5-6S

Name: HGLRC SPECTER 2306.5-1900KV Brushless Motor - 5-6S
Brand: HGLRC
SKU: DRFC-2697
Price: 1329.00 INR
Availability: OutOfStock

₹1,329.00 (Inclusive of all taxes)

Out of Stock

The HGLRC SPECTER 2306.5-1900KV is a high-performance brushless motor engineered for 5-inch and 6-inch FPV freestyle and racing drones, delivering up to 1145W of power from 5-6S LiPo batteries for aggressive flight maneuvers.

Features

2306.5 stator size with 1900KV rating optimized for 5-6S LiPo voltage.
Delivers a maximum power output of 1145W and handles up to 47.7A current.
Features a robust 5mm steel shaft and a 16x16mm M3 mounting pattern for secure installation.
Engineered for high-thrust performance with 5-inch to 6-inch propellers.
Precision-balanced stator and high-quality bearings ensure smooth, responsive operation.

Out of stock

Get Notified When Available

Description

The HGLRC SPECTER 2306.5-1900KV brushless motor is designed for pilots demanding high power-to-weight ratios in the 5-6S voltage range. Its 2306.5 stator configuration provides an optimal balance of torque and RPM, enabling rapid throttle response and sustained high thrust for freestyle acrobatics and competitive racing.

Constructed with a CNC-machined aluminum alloy base and a high-strength steel shaft, the motor maintains structural integrity under high thermal and mechanical loads. The advanced magnetic circuit and precision-wound copper windings minimize electrical losses, translating battery energy directly into propulsive force for extended flight times and peak performance.

Key Features

High-Torque Stator Design: The 2306.5 stator generates exceptional torque, providing instant acceleration and recovery during complex maneuvers.
5-6S Voltage Optimization: Engineered specifically for high-cell-count batteries, delivering maximum power efficiency across the 18V to 25.2V range.
Thermal Management: Open bell design and efficient winding promote effective heat dissipation during sustained high-power operation.
Durable Mechanical Construction: Features a 5mm hardened steel shaft and reinforced bearing seats for long-term reliability under high vibration loads.
Precision Balancing: Factory dynamic balancing reduces vibration, leading to smoother video feed and reduced frame stress.
Extended Wiring: Includes 150mm of high-strand-count silicone wire for flexible routing and secure solder connections to ESCs.

Applications

5-inch FPV racing drones requiring high top-end speed and rapid acceleration.
6-inch long-range or freestyle quads where additional prop disk area benefits efficiency and stability.
High-performance 5-6S freestyle builds targeting powerful punch-outs and dynamic tricks.
Heavy-lift cinematic platforms where the 2306.5 stator provides the necessary torque for larger propellers.

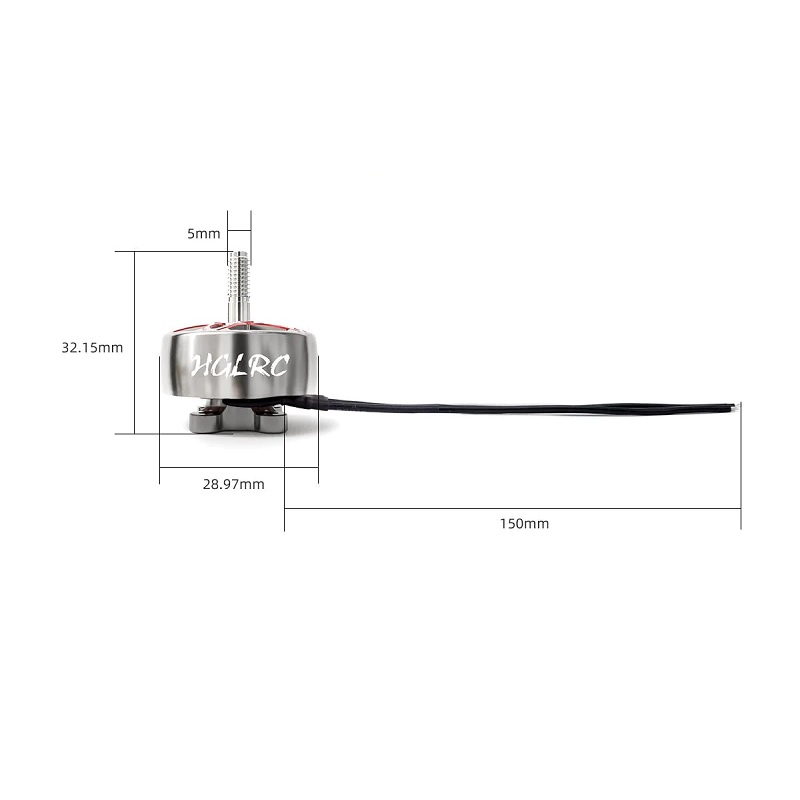

Technical Specifications

Model	SPECTER 2306.5-1900KV
Stator Size	2306.5
KV Rating	1900 KV
Rated Voltage	5-6S LiPo
Max Current	47.7 A
Max Power	1145 W
Shaft Diameter	5 mm
Motor Diameter	28.97 mm
Mounting Pattern	16x16 mm (M3)
Wire Length	150 mm
Weight	34.2 g
Compatible Prop Size	5" - 6"

Frequently Asked Questions

What is the maximum recommended propeller size for the SPECTER 2306.5-1900KV motor?

The motor is optimized for 5-inch and 6-inch propellers on 5-6S LiPo batteries. Using larger props may exceed the motor's current and thermal limits, while smaller props may not utilize its full torque potential. Always monitor ESC and motor temperatures during initial flights.

Is this motor compatible with standard 30x30mm and 20x20mm mounting patterns?

No. This motor uses a 16x16mm M3 mounting hole pattern. You will need a frame with compatible 16mm motor mounting holes or an adapter plate to install it on frames designed for 30.5x30.5mm or 20x20mm motor patterns.

What type of Electronic Speed Controller (ESC) is required for this 5-6S motor?

You need a BLHeli_32 or BLHeli_S ESC rated for at least 50A continuous current per motor and fully supporting 6S (25.2V) input voltage. A 4-in-1 ESC or individual ESCs must have robust MOSFETs and capacitors to handle the high current and voltage spikes generated by this high-power motor.
