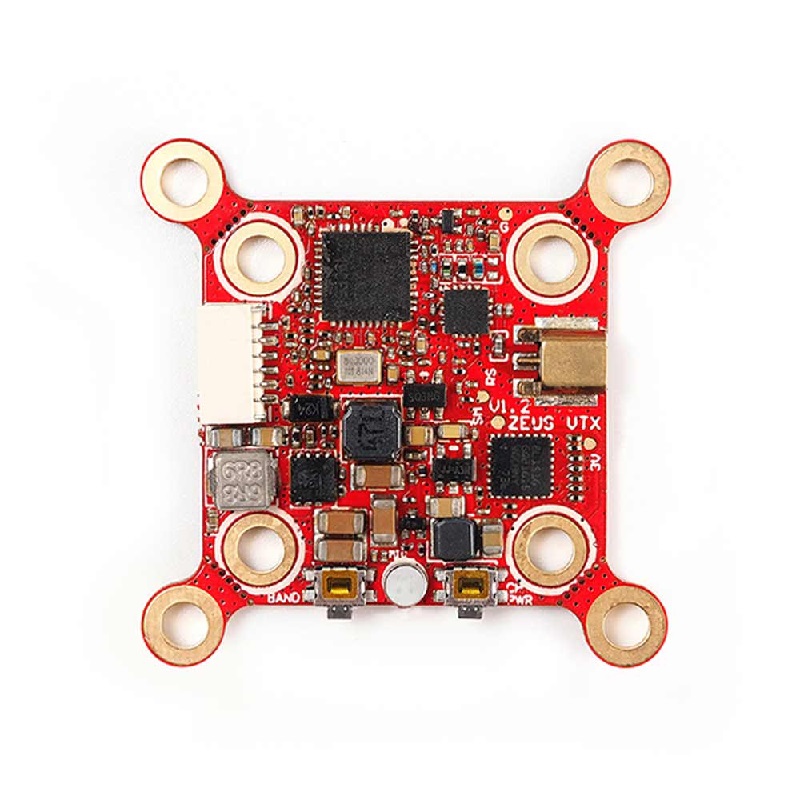

HGLRC Zeus 800mW Smart Mounting 20x20 / 30x30 VTX

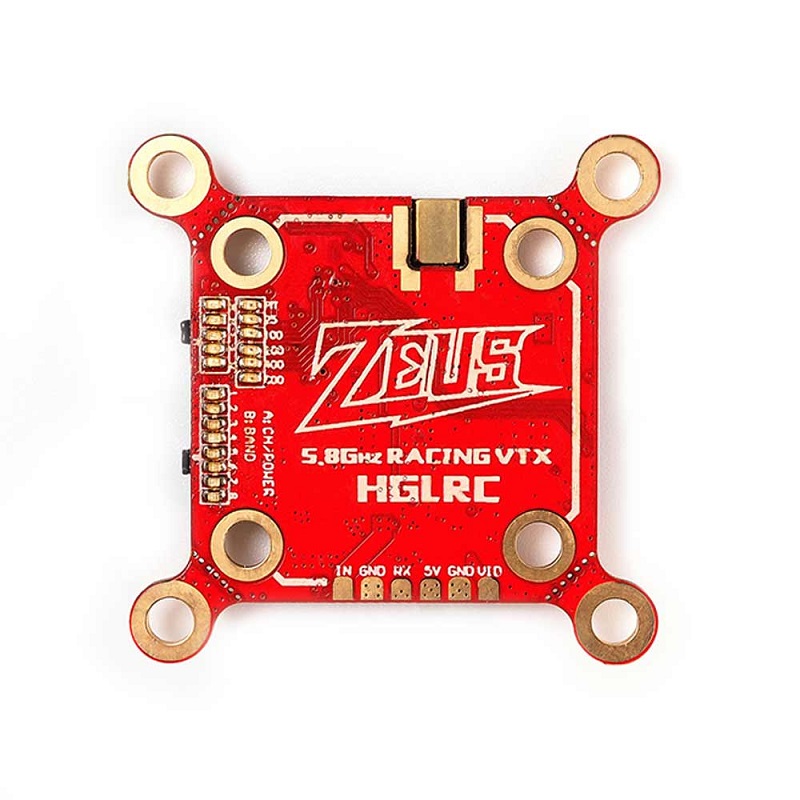

HGLRC Zeus 800mW Smart Mounting 20x20 / 30x30 VTX - Image 2

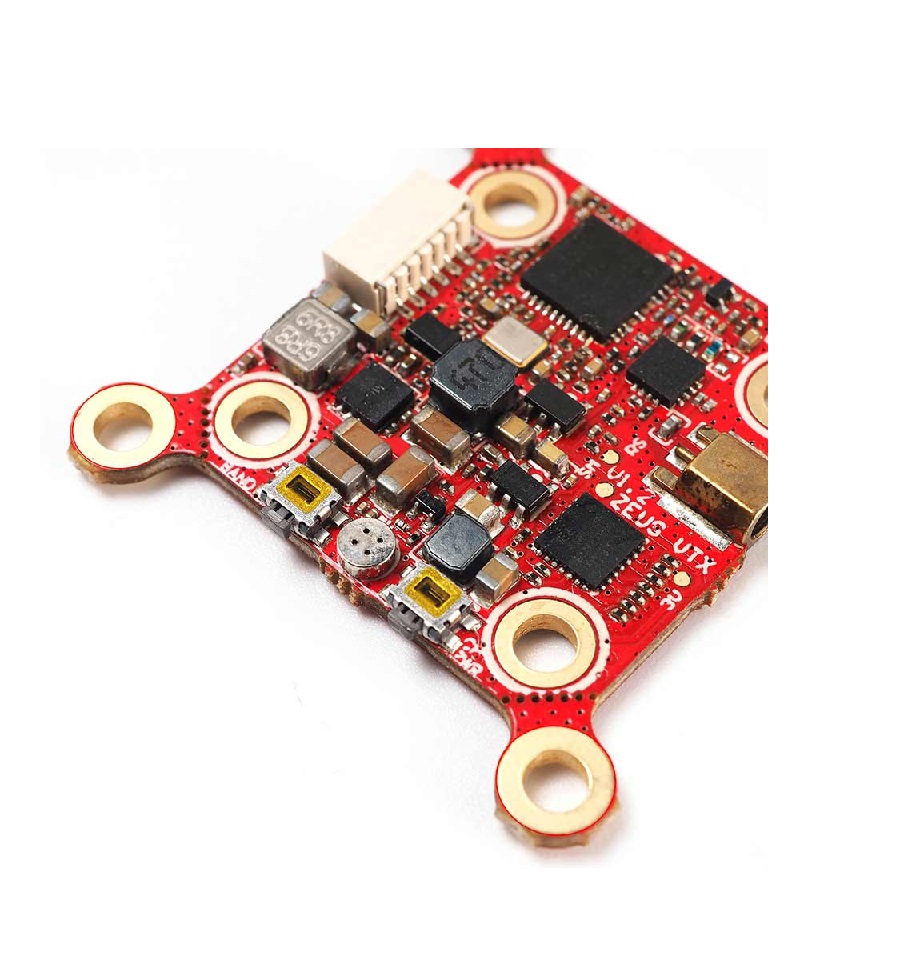

HGLRC Zeus 800mW Smart Mounting 20x20 / 30x30 VTX - Image 3
SKU: DRFC-2138
📋 GST Invoice Available

HGLRC Zeus 800mW Smart Mounting 20x20 / 30x30 VTX

₹4,289.00 (Inclusive of all taxes)
Out of Stock

The HGLRC Zeus 800mW VTX is a versatile 5.8GHz video transmitter compatible with both 20x20mm and 30x30mm mounting patterns, featuring SmartAudio for real-time power and channel adjustments via Betaflight or INAV. It supports a wide 6-26V DC input range for use with 2S to 6S LiPo battery systems.

Features

  • 800mW maximum output power for extended FPV range and penetration.
  • Dual-pattern mounting compatibility for 20x20mm and 30x30mm frames.
  • Integrated SmartAudio (SA) for OSD-based VTX control.
  • Wide 6-26V DC input voltage range (2S-6S LiPo compatible).
  • MMCX antenna interface with 40-channel 5.8GHz band support.

Out of stock

Description

The HGLRC Zeus VTX delivers robust 800mW of output power on the 5.8GHz band, providing a stable video link for mid-range FPV racing and freestyle applications. Its dual mounting hole pattern offers exceptional frame compatibility, allowing for installation in both compact 20x20mm and standard 30x30mm stack configurations without the need for adapters.

Engineered for seamless integration, the VTX features SmartAudio protocol support, enabling pilots to change power output, channel, and band directly from their transmitter via the Betaflight or INAV OSD. The wide voltage input range ensures reliable operation across a vast array of multirotor power systems, from lightweight 2S builds to high-performance 6S rigs.

Key Features

  • High-Power RF Stage: Capable of 800mW output for superior signal penetration and reduced video breakup in complex RF environments.
  • Universal Mounting Design: Incorporates threaded mounting holes for both 20x20mm and 30x30mm patterns, maximizing build flexibility.
  • SmartAudio Integration: Allows for real-time VTX configuration through the flight controller's OSD, eliminating the need for physical buttons.
  • Broad Voltage Compatibility: Accepts 6-26V DC input, making it suitable for 2S, 3S, 4S, 5S, and 6S LiPo setups without an external regulator.
  • MMCX Antenna Interface: Provides a secure, low-loss connection for a variety of 5.8GHz antennas, with improved durability over SMA connectors.
  • Comprehensive Channel Set: Supports 40 channels across standard 5.8GHz bands (Raceband, Fatshark, ImmersionRC) for clear frequency selection.

Applications

  • 5-inch FPV racing drones requiring a reliable, high-power video link.
  • Freestyle and cinematic builds where dual mounting pattern compatibility simplifies frame selection.
  • Long-range or mid-range exploration quads operating on 4S to 6S LiPo batteries.
  • Compact 3-inch micro drones utilizing 20x20mm stack configurations.
  • Betaflight or INAV-based builds where OSD-controlled VTX settings are preferred.

Technical Specifications

Item TypeVideo Transmitter (VTX)
Frequency Band5.8 GHz
Channels40
Max Output Power800 mW
Antenna InterfaceMMCX
Input VoltageDC 6-26V
Control ProtocolSmartAudio
Mounting Patterns20x20mm, 30x30mm
Weight4.8 g

Frequently Asked Questions

What is the maximum input voltage for the HGLRC Zeus 800mW VTX?

The HGLRC Zeus VTX accepts a wide input range of 6-26V DC. This makes it directly compatible with 2S (7.4V), 3S (11.1V), 4S (14.8V), 5S (18.5V), and 6S (22.2V) LiPo battery packs without requiring a separate BEC or voltage regulator.

How do I control the VTX power and channel settings?

The VTX integrates SmartAudio protocol. You can control the output power (up to 800mW), channel, and band directly from your transmitter via the Betaflight or INAV OSD menus after connecting the SmartAudio wire from the VTX to a dedicated UART TX pad on your flight controller.

Does this VTX fit both 20x20mm and 30x30mm mounting patterns?

Yes, the Zeus VTX is designed with a universal mounting plate that includes threaded holes for both the 20x20mm and 30x30mm bolt patterns. This allows installation in compact micro builds and standard-sized 5-inch FPV drones using the included hardware.

What type of antenna connector does it use, and what is included?

It uses an MMCX antenna interface. The package includes an 80mm 5.8GHz linear polarized brass antenna with an MMCX connector, as well as an MMCX to SMA-KY adapter cable for compatibility with SMA-based antennas.

Package Includes

  • 1 x HGLRC Zeus 800mW VTX
  • 1 x 80mm 5.8G MMCX Linear Brass Antenna
  • 1 x SH1.0 6-Pin 100mm Cable
  • 1 x MMCX to SMA-KY Adapter Cable

Additional Information

Weight 0.021 kg
Dimensions 11 × 12 × 2 cm
