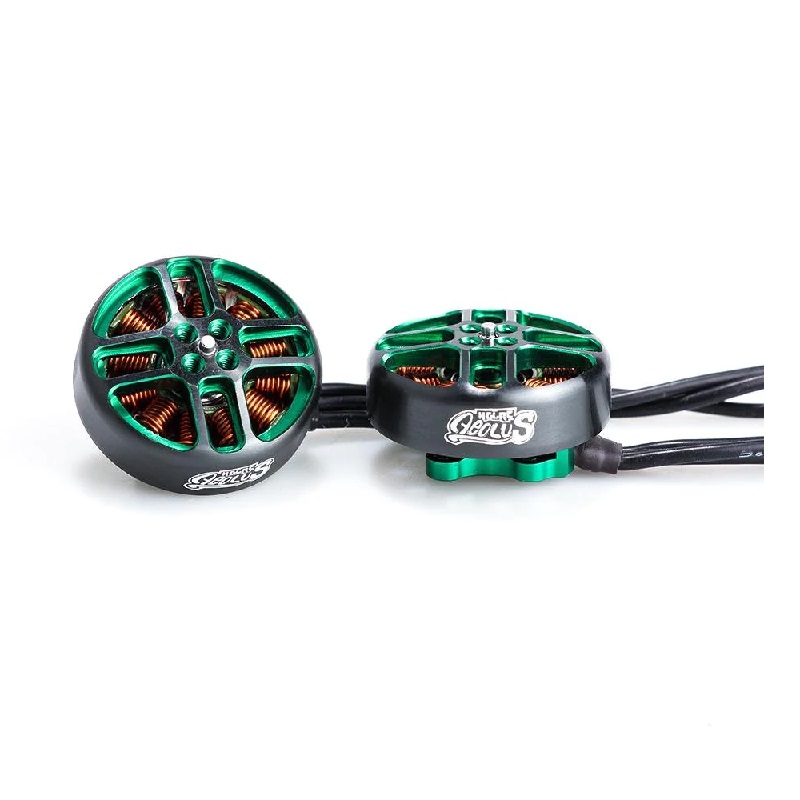

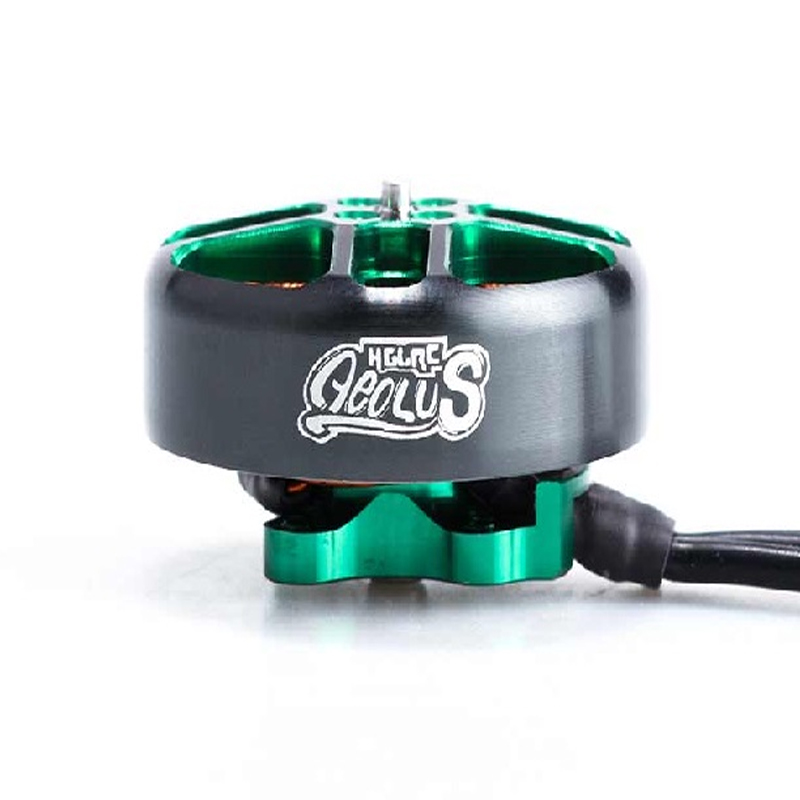

HGLRC AEOLUS 2004 3000KV Brushless Motor - Green
The HGLRC AEOLUS 2004 3000KV brushless motor is engineered for high-performance micro and 4-5 inch FPV drones, delivering agile thrust and responsive control on 4S to 5S LiPo battery systems.
Features
- 2004 stator size with a 3000KV rating optimized for 4-5 inch propellers on 4S-5S LiPo.
- 12N14P magnetic design for smooth torque delivery and efficient power conversion.
- Low 45.5mΩ internal resistance minimizes heat generation and maximizes efficiency.
- Rated for continuous 21.7A current with a peak power handling of 455.7W.

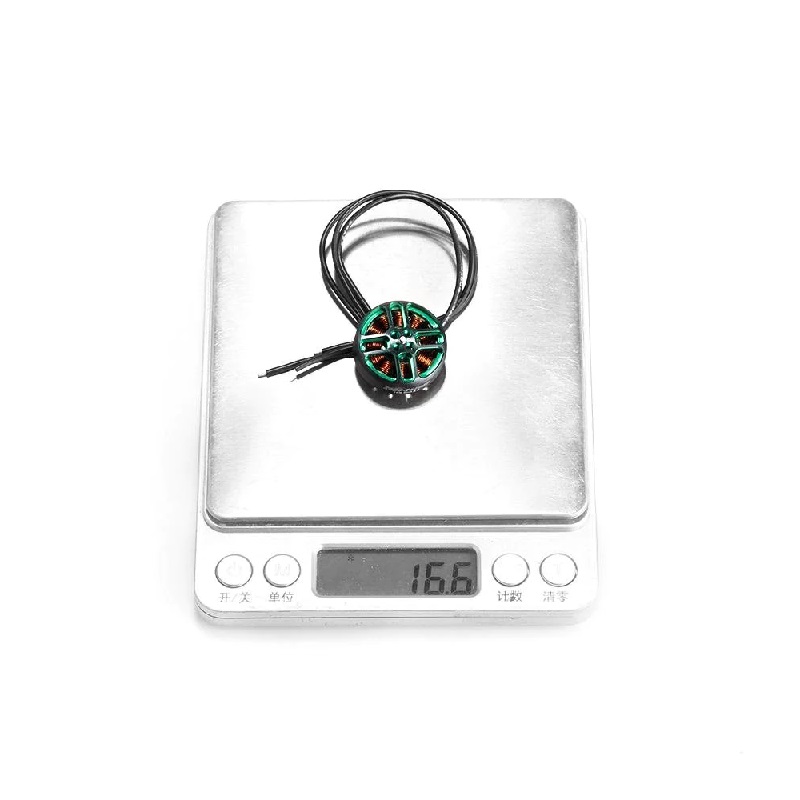

- Lightweight 16.6g construction enhances power-to-weight ratio for agile micro drone builds.
Out of stock
The HGLRC AEOLUS 2004 brushless motor combines a compact 24.7mm diameter stator with a high 3000KV winding to produce exceptional RPM and thrust for its size. Its 12N14P (12 stator arms, 14 rotor poles) configuration ensures smooth, cogging-free rotation and efficient magnetic flux transfer, which is critical for the rapid throttle response demanded in FPV racing and freestyle maneuvers.
Engineered with a focus on thermal management, the motor’s low 45.5mΩ phase resistance directly translates to reduced electrical losses under load, allowing it to sustain high power outputs up to 455.7W without excessive heat buildup. This makes it a reliable choice for aggressive flying on 4S and 5S battery packs. The vibrant green anodized finish provides visual distinction and a layer of corrosion resistance for the aluminum alloy bell and base.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 4.5 × 4.5 × 2.3 cm |
