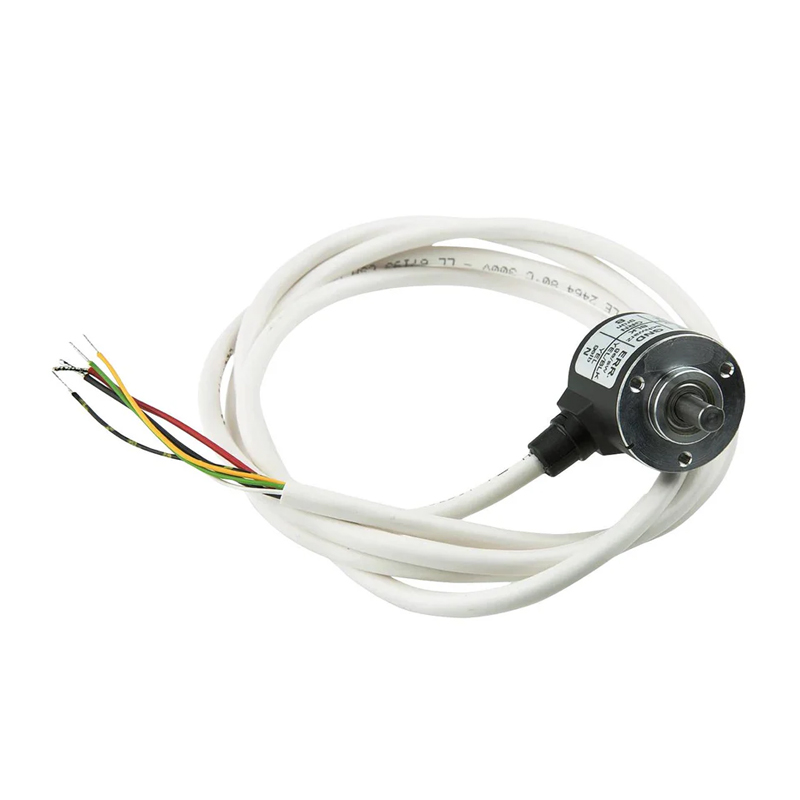

Hengstler RI38 Series 0529110 Rotary Encoder, Optical, Incremental, 500 PPR, Horizontal, Without Push Switch
The Hengstler 0529110 RI38 Series is a high-precision optical incremental rotary encoder delivering 500 pulses per revolution (PPR) for accurate speed and position feedback in industrial automation, motor control, and robotics systems. It features a robust 6mm shaft, flange mounting, and a wide 10-30V DC supply range for reliable integration into PLCs and motion controllers.
Features
- Optical incremental encoder with 500 PPR resolution for precise motion feedback.
- High-speed operation capable of up to 10,000 RPM for demanding applications.
- Push-Pull output (3 channels) ensures stable signal transmission in electrically noisy environments.
- Wide 10-30V DC operating voltage range for compatibility with industrial power supplies.
- Robust construction with a solid 6mm shaft and flange mounting for mechanical durability.
Out of stock
The Hengstler 0529110 encoder utilizes an optical sensing principle with an incremental disc to generate precise quadrature output signals (A, B, and index) for determining rotational speed, direction, and position. Its push-pull output stage provides excellent noise immunity and signal integrity over extended cable runs, making it suitable for integration into industrial control systems.
Engineered for reliability, the encoder features a durable housing with IP40/IP50 protection against dust and limited moisture ingress. Its operating temperature range of -10°C to +60°C ensures stable performance in typical industrial environments. The compact 39mm x 39mm form factor and straightforward flange mounting facilitate easy installation in space-constrained applications.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 3.9 × 3.9 cm |
