SKU: DRFC-2341
📋 GST Invoice Available

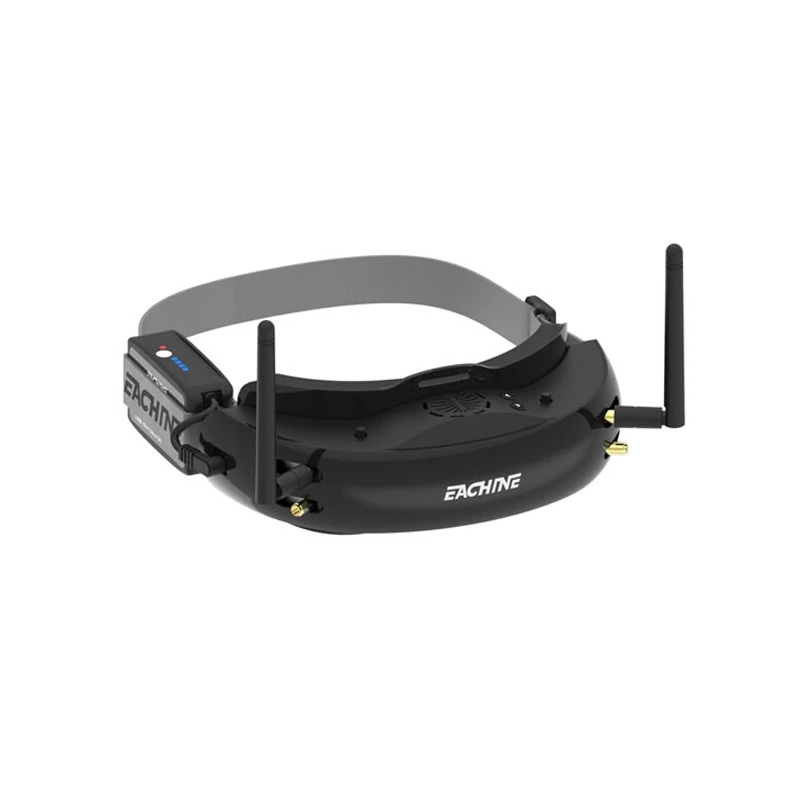

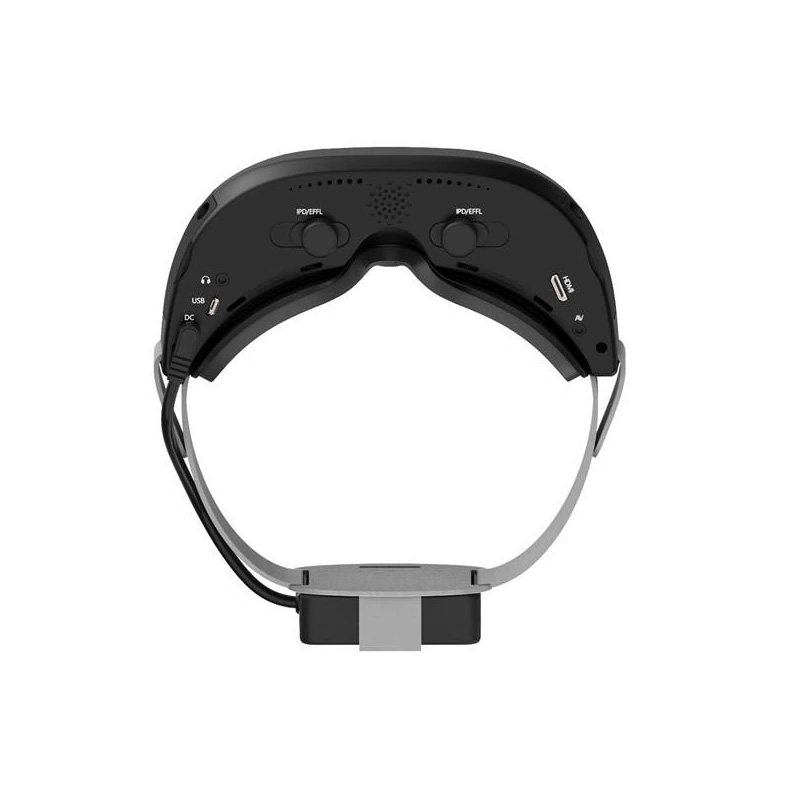

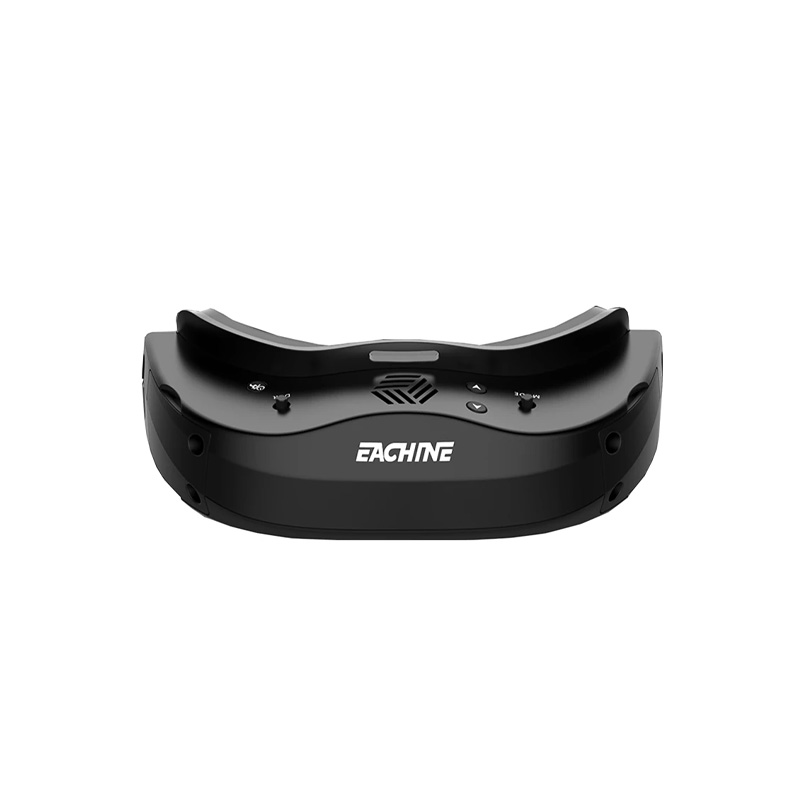

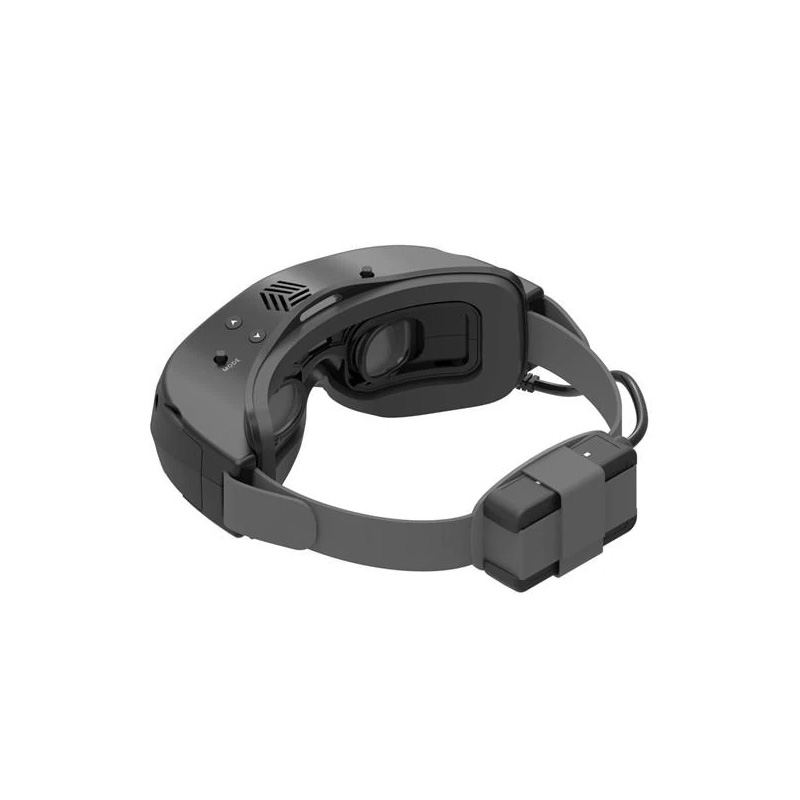

Eachine EV200D 1280x720 5.8G 72CH True Diversity FPV Goggles HD Port 2D/3D Built-in DVR - Black

₹50,539.00 (Inclusive of all taxes)
Out of Stock

The Eachine EV200D is a feature-rich FPV goggle system offering a 1280×720 resolution display with a 42° field of view, dual true diversity 5.8GHz receivers, and a built-in DVR for recording flight footage, supporting both 2D and 3D viewing modes.

Features

  • High-Definition 1280×720 Resolution Display with 42° FOV
  • Dual True Diversity 5.8GHz Receiver (72 Channels, 5333-5945MHz)
  • Built-in DVR for Direct Flight Footage Recording
  • Supports 2D and 3D Viewing Modes via HD Port
  • Adjustable IPD (56-72mm) and Optional Diopter Lens Compatibility

Out of stock

Description

The Eachine EV200D FPV goggles are engineered for immersive, high-fidelity first-person flight. The dual true diversity receiver system ensures a stable and reliable video link across the full 5.8GHz band, minimizing signal dropouts for confident piloting. The high-resolution 1280×720 display provides crisp visuals, while the 42° field of view balances immersion with situational awareness.

Designed for versatility and pilot comfort, the EV200D supports both standard 2D and stereoscopic 3D viewing modes, catering to different content and pilot preferences. The integrated DVR allows for immediate recording of flights for post-flight analysis or sharing. User-adjustable features like IPD, brightness, and contrast, combined with compatibility for optional diopter lenses, ensure a customized and comfortable fit for a wide range of users.

Key Features

  • Dual True Diversity 5.8GHz Receiver with <=-93dB sensitivity for robust signal reception.
  • High-Resolution 1280x720 Display with adjustable 4:3 and 16:9 aspect ratios.
  • Built-in Digital Video Recorder (DVR) for capturing flight sessions directly.
  • Flexible 2D and 3D Viewing Modes via HD Port input for varied content sources.
  • Wide Interpupillary Distance (IPD) adjustment from 56mm to 72mm.
  • Compatible with optional Fatshark-style diopter lenses for vision correction (lenses not included).
  • Convenient USB power input and low-voltage warning at 6.8V for battery safety.
  • RP-SMA antenna connectors supporting standard 3dBi gain antennas.

Applications

  • FPV Racing and Freestyle Drone Piloting requiring reliable, low-latency video.
  • Aerial Cinematography and Long-Range FPV flights benefiting from DVR recording.
  • Drone Training and Simulator Use with HD video input compatibility.
  • Multi-Pilot Events where stable, diversity-based signal reception is critical.

Technical Specifications

ModelEachine EV200D
Display Resolution1280 x 720 px
Field of View (FOV)42°
Aspect Ratio4:3, 16:9
IPD Adjustment Range56mm - 72mm
Receiver TypeDual True Diversity
Frequency Range5.8GHz (5333MHz - 5945MHz)
Channels72
Receiver Sensitivity<= -93dB
Antenna ConnectorRP-SMA
Video FormatsNTSC/PAL
Power Input7.4V (2S LiPo)
Low Voltage Warning6.8V
Built-in DVRYes
Viewing Modes2D, 3D
Operating Temperature-10°C to +40°C

Frequently Asked Questions

What is the resolution and field of view of the Eachine EV200D goggles?

The Eachine EV200D features a high-definition 1280x720 pixel display with a 42-degree field of view. This combination provides crisp, detailed visuals and an immersive flying experience suitable for both racing and cinematic FPV applications.

Does the EV200D have a built-in DVR, and what does it record?

Yes, the EV200D includes a built-in Digital Video Recorder (DVR). It records the live video feed being received by the goggles directly onto a microSD card (card not included), allowing pilots to save and review their flights for analysis or sharing.

What type of receiver does the Eachine EV200D use, and what is its frequency range?

The EV200D is equipped with a dual true diversity 5.8GHz receiver system. It covers the full 5.8GHz band from 5333MHz to 5945MHz across 72 channels, utilizing two antennas to automatically select the strongest signal for a stable video link with high sensitivity (<= -93dB).

Are the EV200D goggles compatible with diopter lenses for vision correction?

Yes, the EV200D goggles are compatible with optional diopter lenses that fit the Fatshark form factor, allowing users with vision correction needs from -800D myopia to +300D hyperopia to use the goggles without their glasses. The lenses are sold separately.

What is the power requirement for the EV200D goggles?

The EV200D goggles require a 7.4V input, typically from a 2S LiPo battery. They feature a low-voltage warning at 6.8V to protect your battery. Power can be supplied via the included battery case for 18650 cells or through a USB cable connected to an external power bank or charger.

Package Includes

  • 1 x EV200D FPV Goggles
  • 1 x Zipper Carrying Case
  • 1 x 18650 Battery Case
  • 1 x Sponge Face Pad
  • 2 x EVA Foam Pads
  • 2 x Eyeglass Frames
  • 2 x Third-Party Module Covers
  • 2 x FPV Receivers (5.8GHz)

Additional Information

Weight 0.81 kg
Dimensions 25 × 15 × 11 cm
