SKU: DRFC-2347
📋 GST Invoice Available

Skyzone Cobra SD FPV Goggles with DVR

₹31,499.00 (Inclusive of all taxes)
Out of Stock

The Skyzone Cobra SD FPV Goggles feature a 5.8GHz diversity receiver and a 16:9 LCD screen with vivid color and high luminance for detailed racing and freestyle FPV flight. They support multiple power sources including a single 18650 cell, USB-C, or a 2-6S LiPo battery, and include an integrated DVR for recording.

Features

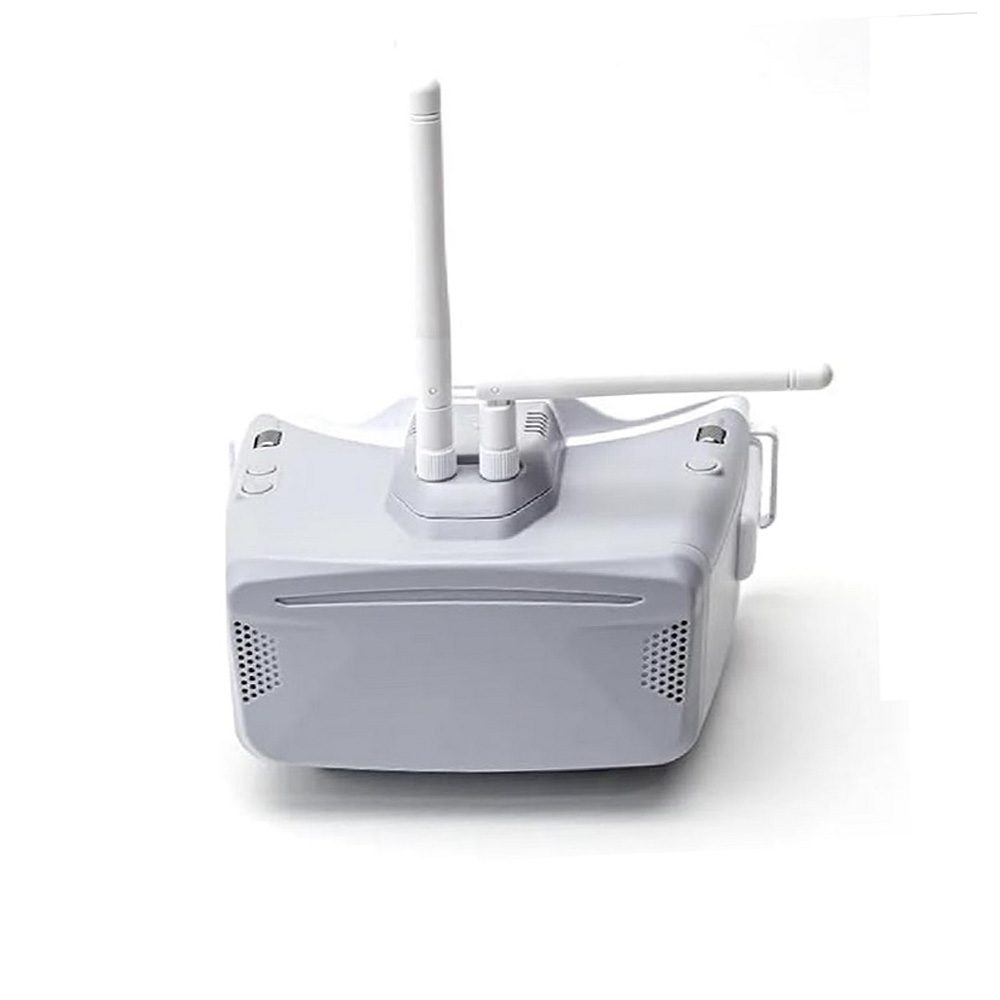

  • 5.8GHz Diversity Receiver with dual antennas for stable video reception.
  • 16:9 Aspect Ratio LCD Screen with 800×480 resolution for vivid, detailed imagery.
  • Integrated DVR records in MJPEG compression at 25/30 FPS for flight analysis.
  • Multiple Power Inputs: single 18650 cell, USB-C (5V), or direct 2-6S LiPo (DC input).
  • Shuttle Wheel Control and intuitive menu system for easy in-goggle adjustments.

Out of stock

Description

The Skyzone Cobra SD is a dedicated diversity receiver version of the popular Cobra S FPV goggles, designed for pilots seeking reliable analog video reception. Its 16:9 LCD screen delivers high luminance and vivid colors, enhancing visibility of track gates and environmental details during high-speed racing or cinematic freestyle flights. The ergonomic design accommodates users who wear glasses, ensuring comfort during extended flying sessions.

Power flexibility is a core feature, with support for a single 18650 Li-ion battery, USB-C power delivery, or a direct connection to a 2-6S LiPo flight pack via the DC input. The integrated DVR records video streams using MJPEG compression, allowing pilots to review and analyze their flights. The user interface, navigated via a dedicated shuttle wheel, is available in both English and Chinese, enabling quick adjustments to channel, band, and recording settings without removing the headset.

Key Features

  • 5.8GHz Dual-Diversity Receiver minimizes signal dropouts and ensures a stable video feed.
  • High-Luminance 16:9 LCD Screen provides a wide, clear field of view with accurate color reproduction.
  • Onboard MJPEG DVR allows for immediate recording and playback of FPV sessions.
  • Multi-Source Power System offers versatile field powering options from batteries or USB.
  • Ergonomic & Glasses-Compatible design provides all-day wearing comfort for most users.
  • Intuitive Shuttle Wheel UI enables complete menu control without removing the goggles.
  • Low Power Consumption operates efficiently at 12V/0.59A or 5V/1.4A input.

Applications

  • Analog FPV Racing for 5-inch and smaller quadcopters requiring reliable, low-latency video.
  • Freestyle & Cinematic FPV Flying where a stable video feed and recording capability are essential.
  • Beginner FPV Pilot Training with an intuitive interface and glasses-compatible design.
  • Field Repair & Bench Testing of FPV drones using the versatile power input options.

Technical Specifications

Item TypeFPV Goggles
Resolution800 x 480
Frequency5.8 GHz
Receiver TypeDiversity
DVR RecordingMJPEG Compression, 25/30 FPS
Power Input1x 18650 Cell, USB-C (5V), DC 2-6S LiPo
Power ConsumptionDC 12V @ 0.59A, USB 5V @ 1.4A
Weight332 g
Supported LanguagesEnglish, Chinese

Frequently Asked Questions

What power sources can I use with the Skyzone Cobra SD goggles?

The Cobra SD supports three primary power inputs: a single 18650 Li-ion battery (sold separately), a USB-C cable providing 5V power, or a direct connection to a 2-6S LiPo flight battery via the DC input port. This flexibility allows for field operation from your transmitter battery, a power bank, or your drone's main pack.

Does the Cobra SD have a built-in DVR, and what is its recording quality?

Yes, it includes an integrated DVR that records the received analog video signal. It uses MJPEG compression and can record at either 25 or 30 frames per second (FPS). This is suitable for capturing and reviewing your FPV flights for analysis or sharing, though the quality is limited by the incoming analog signal.

Can I wear glasses while using these FPV goggles?

Yes, the Skyzone Cobra SD goggles are designed with an ergonomic faceplate that accommodates most prescription glasses. The adjustable head strap and foam padding help create a comfortable seal and fit for extended flying sessions, making them a good choice for pilots who do not use contact lenses.

What is the benefit of the diversity receiver in these goggles?

The dual-antenna diversity receiver continuously monitors the signal strength from two separate antennas and automatically switches to the antenna with the stronger, clearer signal. This significantly reduces video breakups, static, and signal dropouts, providing a more stable and reliable FPV viewing experience, especially when flying in environments with obstacles.

Package Includes

  • 1 x Cobra SD FPV Goggles
  • 1 x Receiver Module
  • 1 x Head Strap
  • 1 x Power Cable
  • 1 x Headtracker Cable
  • 2 x 5.8GHz 2dBi Antennas
  • 1 x Video/Audio Cable
  • 1 x USB-C Cable
  • 1 x User Manual

Additional Information

Weight 0.332 kg
Dimensions 15 × 20 × 11 cm
