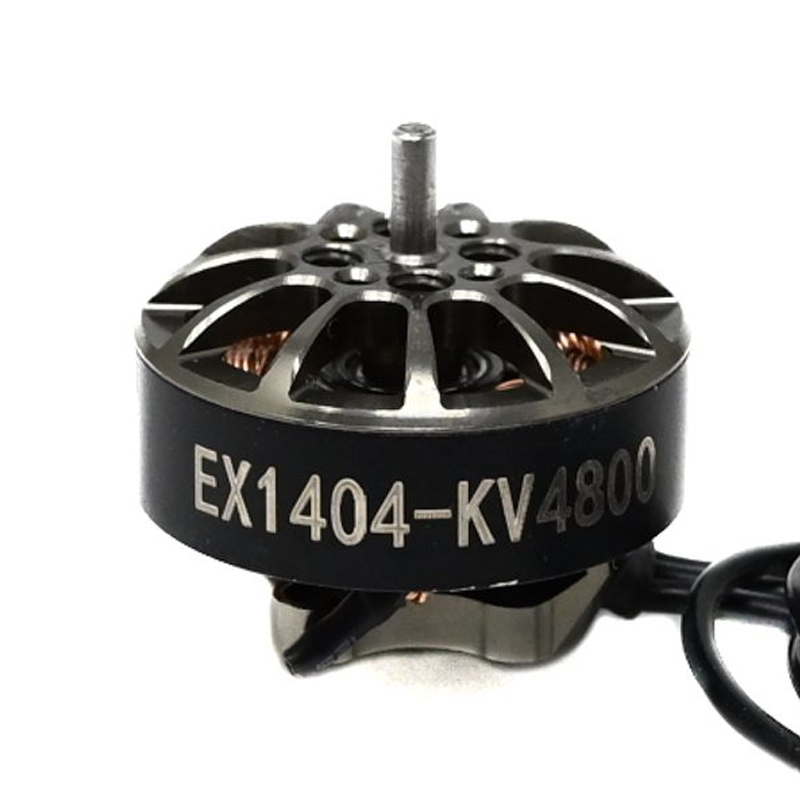

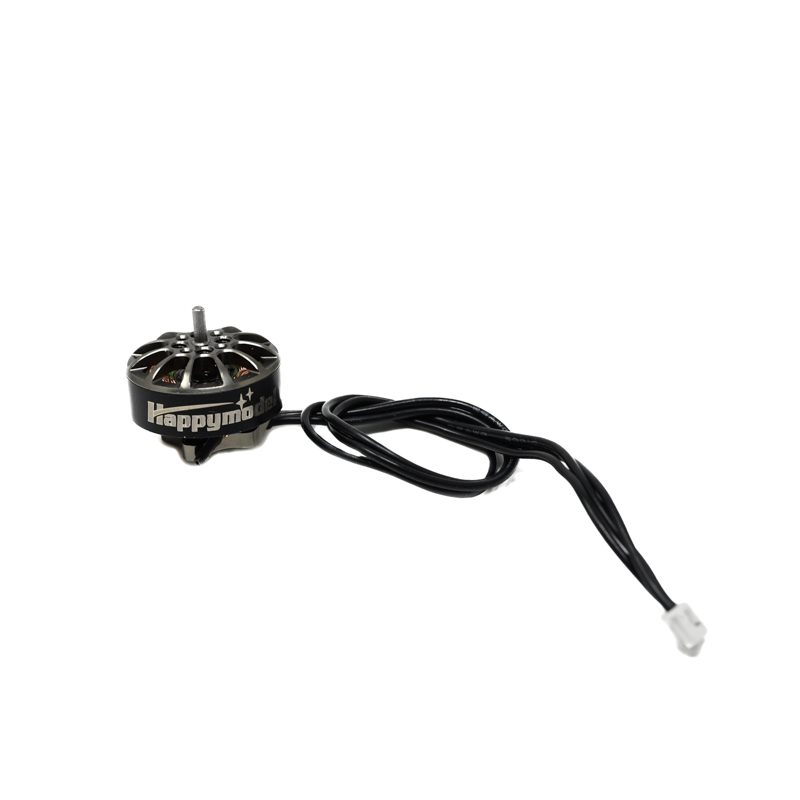

HappyModel EX1404 KV4800 Brushless Motor (CCW)
The HappyModel EX1404 KV4800 brushless motor is a high-speed, lightweight motor engineered for performance FPV racing and micro drone builds, optimized for 3S LiPo battery systems.
Features
- High-speed 4800KV variant designed for rapid throttle response and racing performance.
- Compact 14x4mm stator design with a total weight of only 8.7 grams.
- Features a 1.5mm shaft diameter for broad propeller compatibility.
- Internal 9N12P magnetic configuration for smooth power delivery and stability.
- Equipped with high-quality NMB bearings to minimize vibration and ensure durability.
Out of stock
The HappyModel EX1404-4800KV brushless motor is engineered for pilots demanding maximum acceleration and top-end speed from their micro and lightweight FPV racing drones. Its compact stator dimensions (14mm diameter, 4mm height) and ultra-light 8.7g weight contribute to an exceptional power-to-weight ratio, enabling agile maneuvers and fast cornering.
This motor’s 9N12P internal magnetic layout provides a smooth and linear throttle curve, enhancing flight control precision. The robust 1.5mm hardened steel shaft and premium NMB bearings are built to withstand the high-RPM stresses of aggressive racing, ensuring reliable performance and longevity.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
