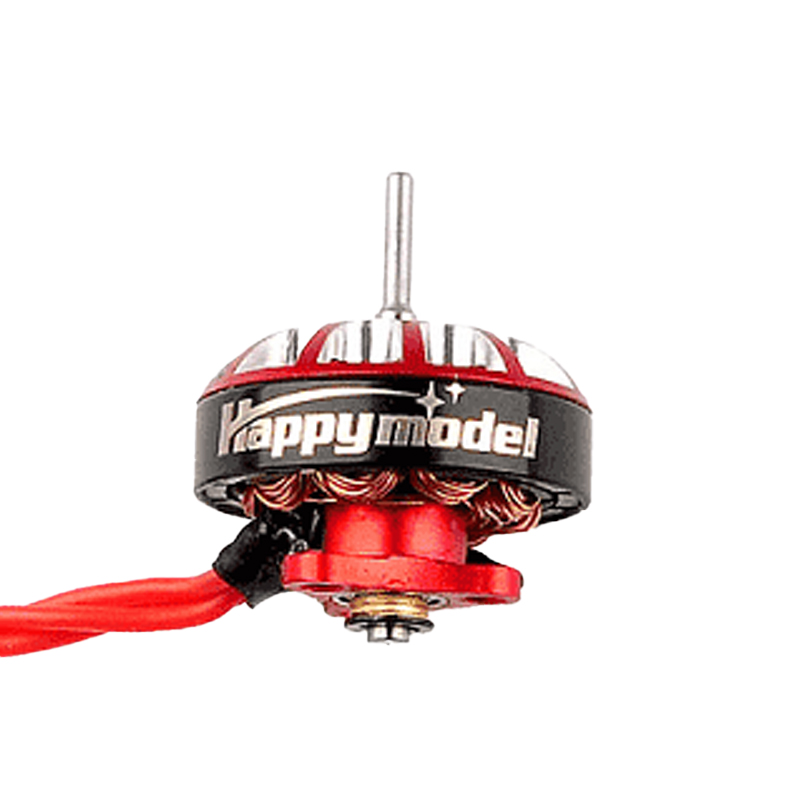

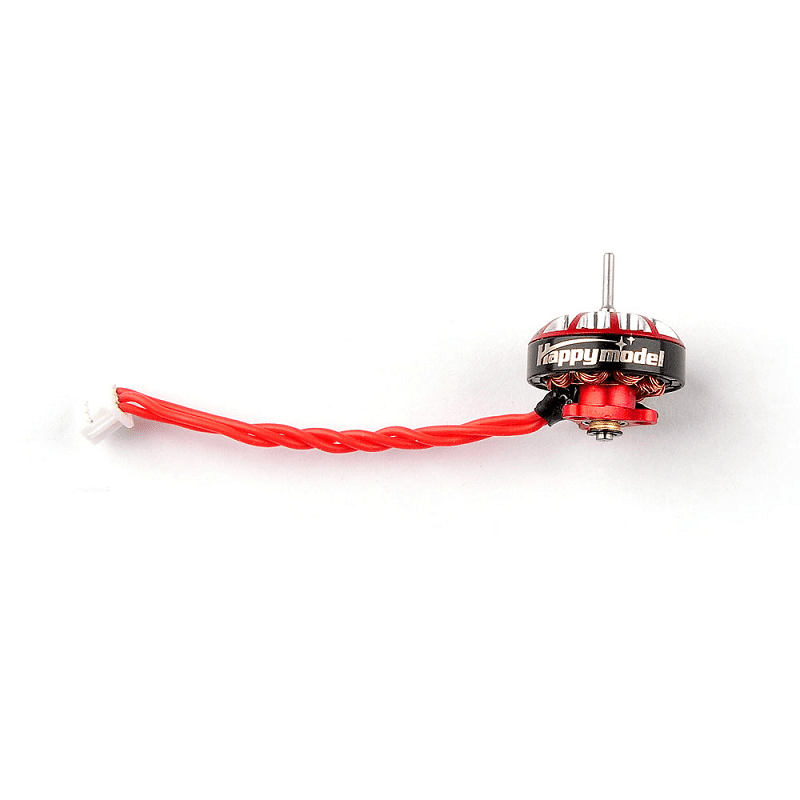

HappyModel EX1102 KV10000 1.5mm Shaft Brushless Motor (CW)
The HappyModel EX1102 is a 10000KV brushless motor engineered for ultra-lightweight 2S-3S LiPo micro drone builds, featuring a 1.5mm shaft and a dual-bearing design for smooth, high-RPM operation with 40mm to 66mm propellers.
Features
- Ultra-lightweight 1102 stator size weighing only 2.8 grams for maximum power-to-weight ratio.
- High 10000KV rating optimized for 2S-3S LiPo batteries, delivering exceptional thrust for micro drones.
- 1.5mm hardened steel shaft and dual-bearing design ensure smooth, balanced rotation and extended lifespan.
- Compatible with a wide range of 40mm to 66mm propellers for ducted whoops and ductless micro frames.
- 9N12P (9-slot stator, 12-pole magnet) configuration provides efficient torque and responsive throttle control.
Out of stock
The HappyModel EX1102 brushless motor is engineered for the demanding performance requirements of modern micro FPV drones. Its compact 1102 stator size and 10000KV winding are specifically tuned to extract maximum power from 2S and 3S LiPo packs, making it an ideal upgrade for platforms like the Mobula7 HD or a core component for custom 75-85mm whoop and ductless micro builds.
Beyond its impressive power density, the motor incorporates a robust dual-bearing system supporting a 1.5mm shaft. This design minimizes rotational friction and vibration, which is critical for maintaining flight stability and protecting sensitive flight controller gyros in small-form-factor drones. The 9N12P magnetic configuration further enhances efficiency, providing smooth torque delivery across the entire throttle range.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 8 × 12 × 2 cm |
