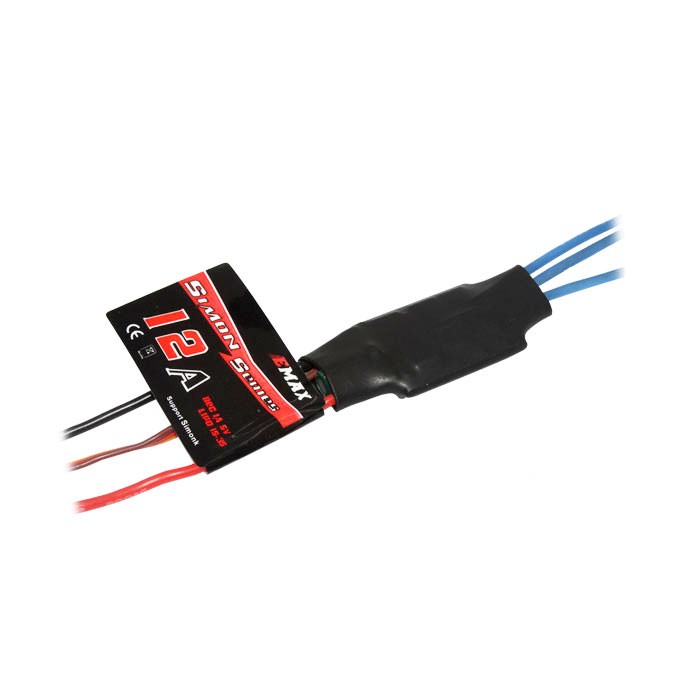

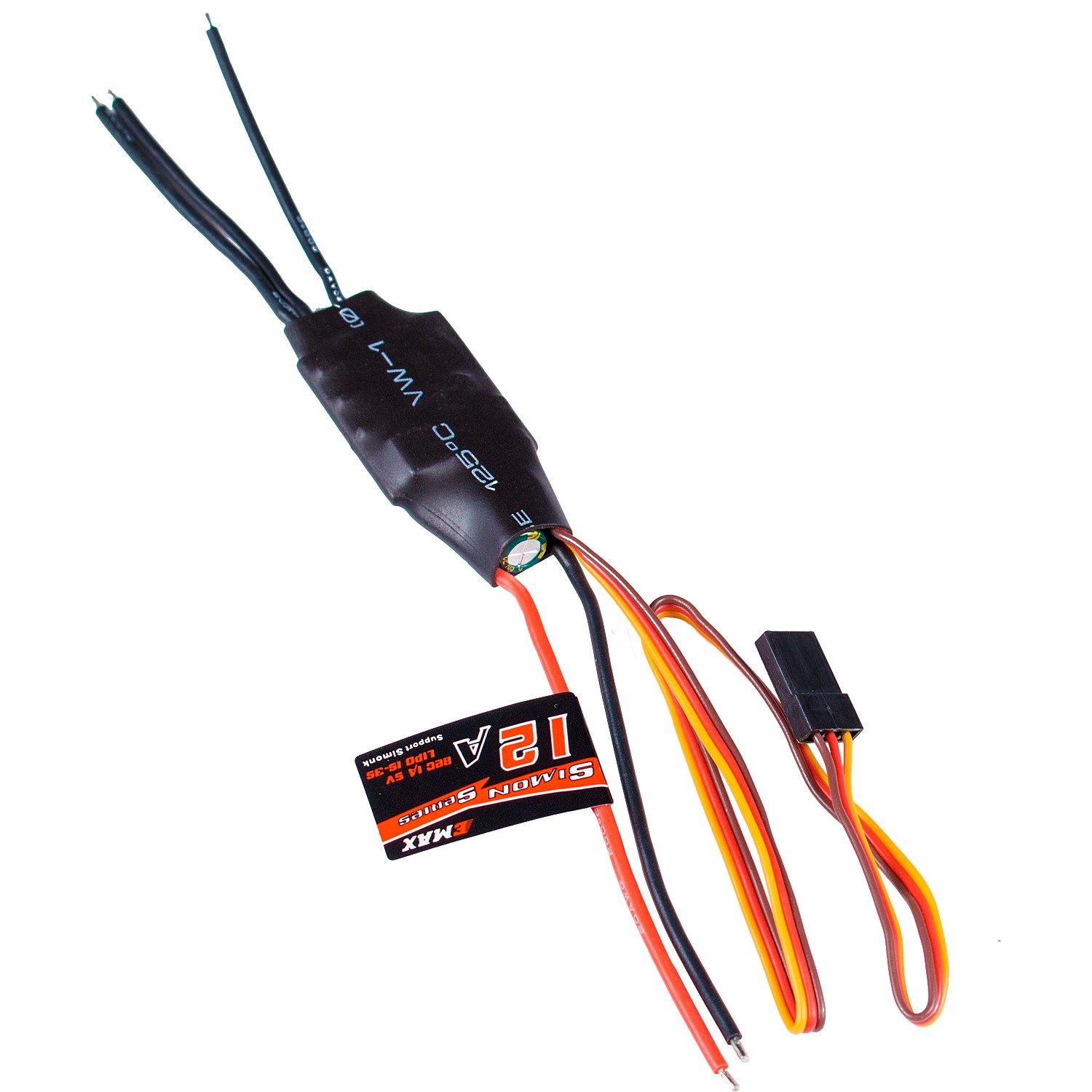

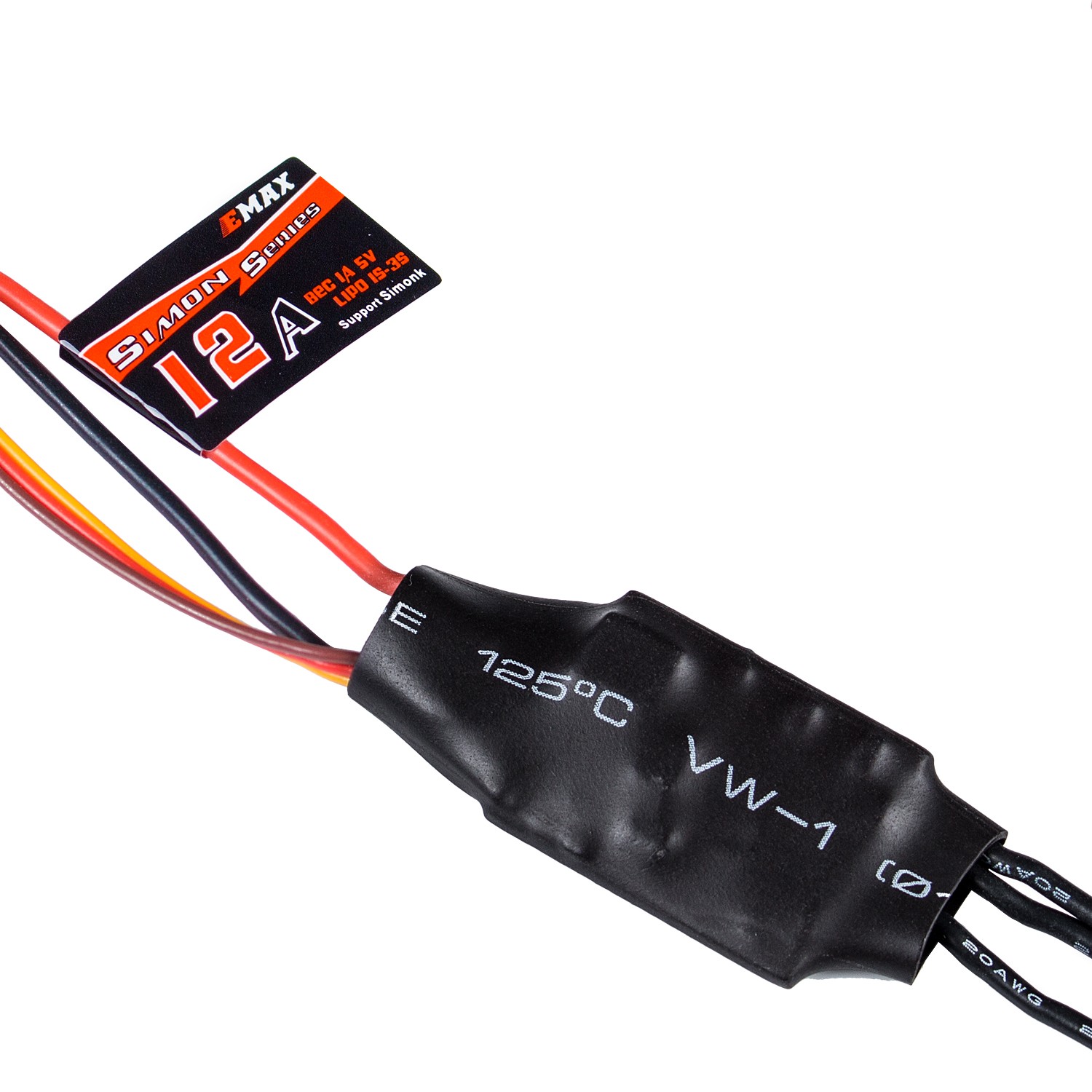

EMAX SimonK 12A 2-4S Multirotor Brushless ESC
This EMAX SimonK 12A brushless ESC is engineered for multirotor applications, supporting 2-4S LiPo input. It provides reliable power delivery with a built-in 1A/5V linear BEC, optimized for smooth throttle response in small FPV and RC aircraft.
Features
- Optimized SimonK firmware for precise and responsive motor control.
- Supports a versatile 2-4S LiPo battery input for various setups.
- Delivers 12A continuous current with a 15A burst capability.
- Integrated 1A/5V linear BEC to power your flight controller and peripherals.
- Features comprehensive low-voltage and over-temperature protection for enhanced safety.
Out of stock
The EMAX SimonK 12A brushless electronic speed controller is designed to provide robust and precise motor control for small multirotor platforms. Running on highly optimized SimonK firmware, this ESC ensures excellent compatibility and a smooth throttle curve, crucial for responsive flight dynamics in FPV racing and freestyle drones. Its architecture features separate power supplies for the MCU and BEC, significantly improving anti-jamming capabilities and overall reliability under demanding conditions.
Equipped with essential protection mechanisms, including low-voltage and over-temperature safeguards, this 12A ESC ensures the longevity of your propulsion system and safety during operation. The built-in 1A/5V linear BEC efficiently powers your flight controller without the need for an external voltage regulator. Furthermore, parameters can be conveniently configured via a program card or your radio transmitter, allowing for tailored throttle range compatibility with various receivers and fine-tuning for optimal low-speed performance.
Additional Information
| Dimensions | 4.5 × 2 × 1 cm |
|---|
