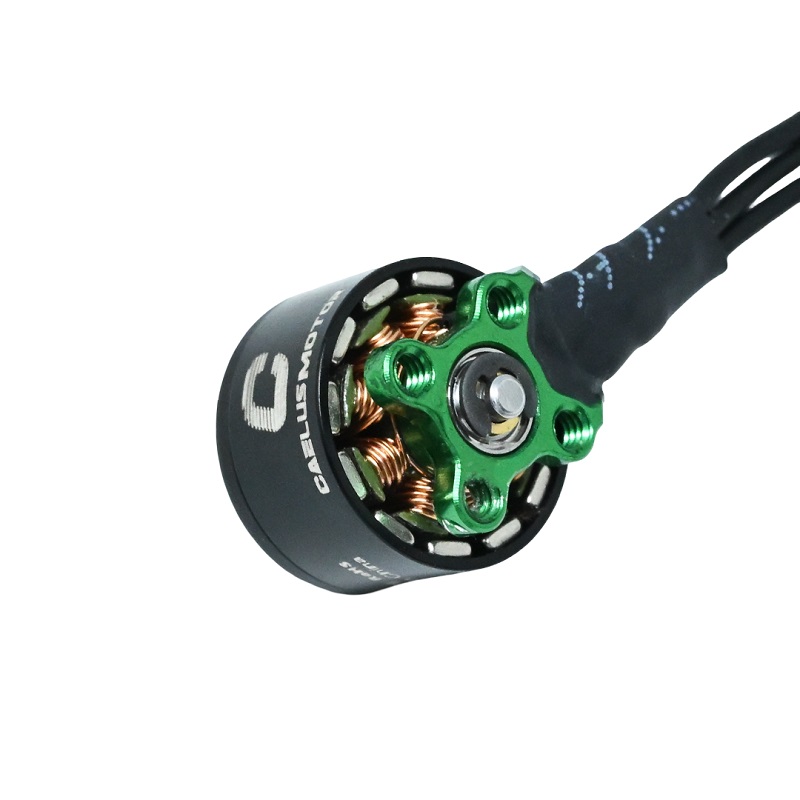

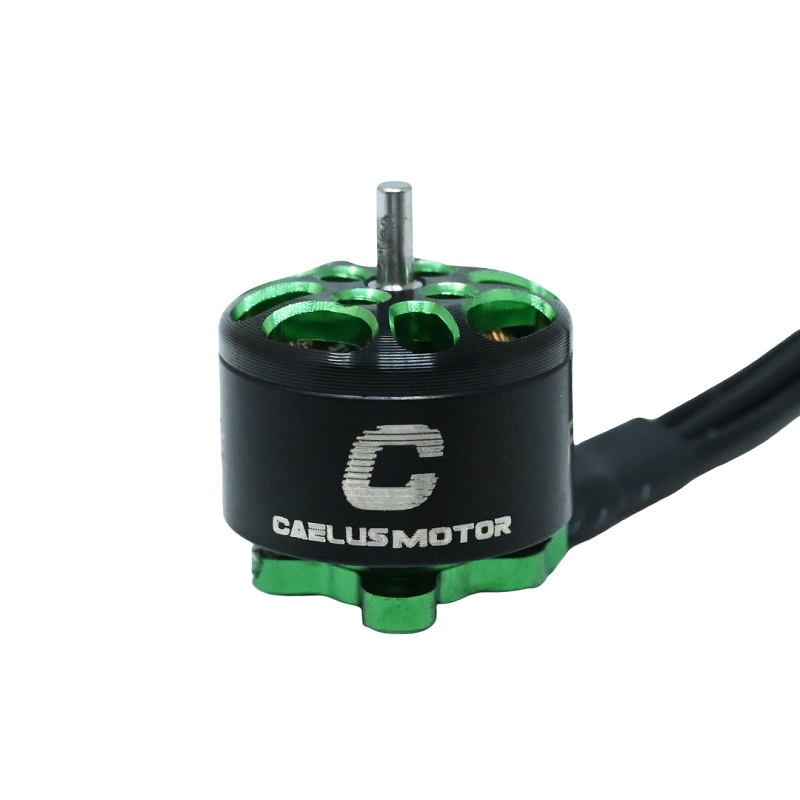

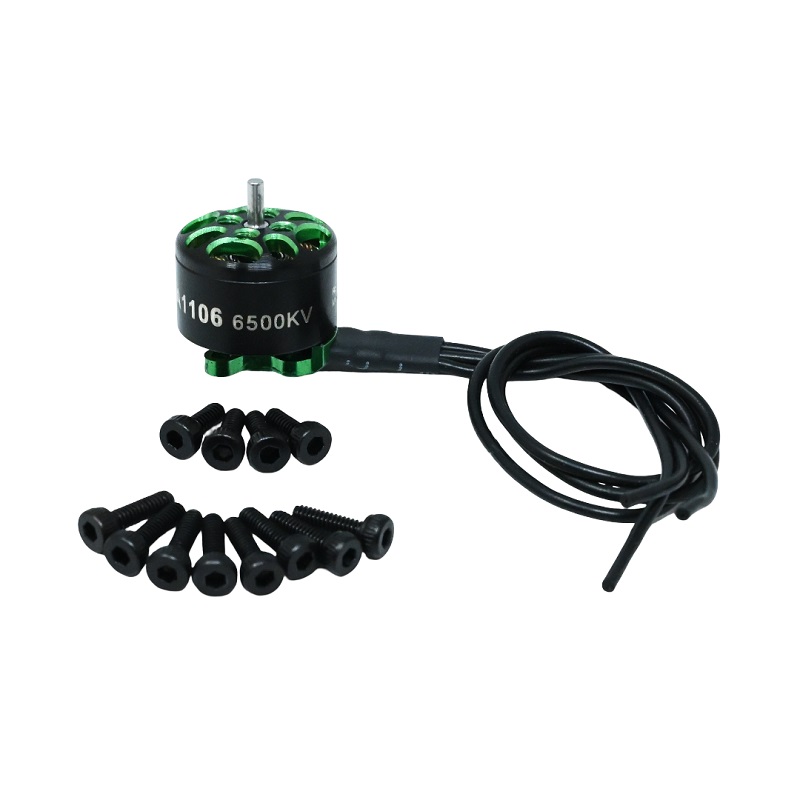

CAELUS FA1106 6500KV Brushless Motor
The CAELUS FA1106 6500KV brushless motor is engineered for high-performance 2–3 inch micro FPV drones, delivering up to 261g of thrust on 3S LiPo power. Its lightweight 6.2g design with a 7075-T6 aluminum bell and NSK bearings ensures efficient, responsive, and durable operation for racing and freestyle builds.
Features
- High 6500KV rating optimized for 2–3 inch micro propellers on 3S LiPo batteries.
- Generates up to 261g of maximum thrust for aggressive acceleration and precise control.
- Constructed with a durable 7075-T6 aluminum bell and high-quality NSK bearings for smooth, reliable operation.
- Ultra-lightweight design at just 6.2 grams to maximize power-to-weight ratio in compact builds.
- Features a 9N12P configuration and dual 5mm/9mm M2 mounting patterns for stable, efficient performance and versatile installation.
Out of stock
The CAELUS FA1106 6500KV brushless motor is a precision component designed for pilots demanding high thrust and efficiency from their micro FPV platforms. Its 12mm stator diameter and 4mm stator height are optimized for a 9N12P magnetic configuration, delivering smooth, consistent power delivery ideal for rapid throttle changes and tight maneuvering.
Built around a robust 7075-T6 aluminum alloy bell, the motor maintains structural integrity under high rotational speeds and thermal loads, while the integrated NSK bearings ensure minimal friction and vibration for extended lifespan. With a recommended 10A–20A ESC and compatibility with 3S (9–18V) input, it provides a reliable power foundation for competitive micro drone racing and acrobatic freestyle flight.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 6 × 5 × 4 cm |
